$2,999.00/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- 80 gallon tank; 208-230V, 60 Hz
- Durable cast iron two-stage compressor pump
- Industrial grade electric motor
- Automatic start and stop
- Low RPM pump
- Quantity
- 1/Each
- Shipping Weight
- 600 lb.
- Length
- 63 Inches
- Width
- 24 Inches
- Height
- 45 Inches
- Hertz
- 60 Hz
- Voltage
- 208 - 230 Volts
- Capacity
- 80 Gallons
- Features
- Made in America
- Material
- Cast Iron

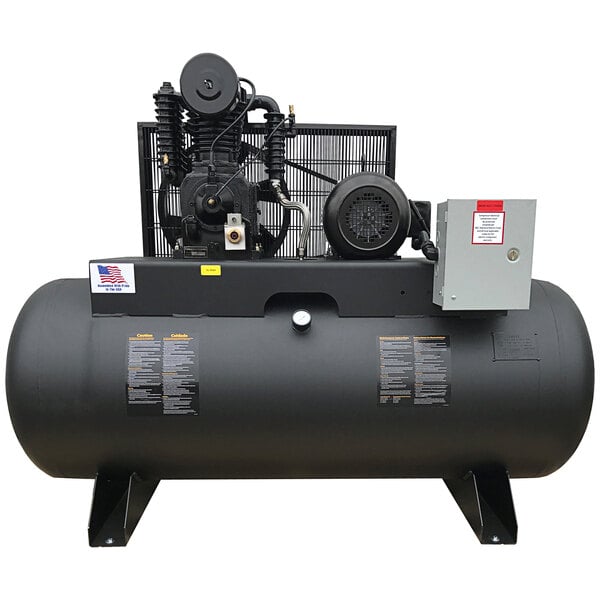

Industrial Gold CI523E80H Details
Choose a reliable product with this Industrial Gold 80 gallon 5 hp 3 phase horizontal reciprocating air compressor CI523E80H. This 5 hp air compressor is perfect for heavy commercial and industrial applications. It features some of the most enduring components found in piston compressors. This three phase compressor utilizes a heavy-duty cast iron two-stage compressor pump that is durable and long lasting. This low RPM pump is quieter than high RPM models. The air filter is extremely capable and will thoroughly remove harmful dust or debris that can shorten the lifespan of your unit. The TEFC electric drive motor is industrial grade and up for serious tasks. It also utilizes a centrifugal unloader. It features a 2-grove B width motor pulley that is easy to use.
This 80 gallon air compressor features an ASME tested powder coated steel tank that is extremely reliable. Its 2-piece tank top plate design allows access to compressor valves without requiring compressor head removal. The belt guard is fully protected and enclosed. Adding to its overall durability, the flexible discharge air line is made with stainless steel and the valve components are Swedish steel. It also has Torrington needle bearings and inserts on rods. This unit uses disk and spring valves for optimum function. Its magnetic starter is mounted and wired and features automatic start and stop. The crank shaft features bearings on both ends. This unit requires a 208-230V electrical connection for operation. This air compressor operates at 17.5 cfm at 175 PSI.
Overall Dimensions:
Length: 63"
Width: 24"
Height: 45"
Tank Capacity: 80 gallons
Made in America
This item was made in the United States of America.
