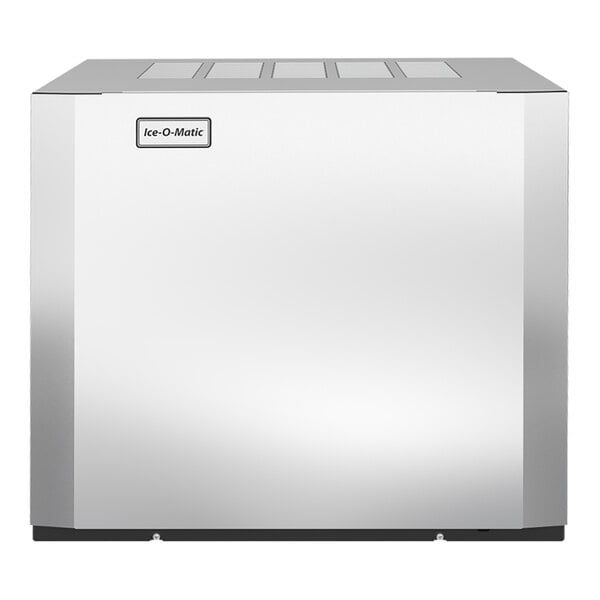

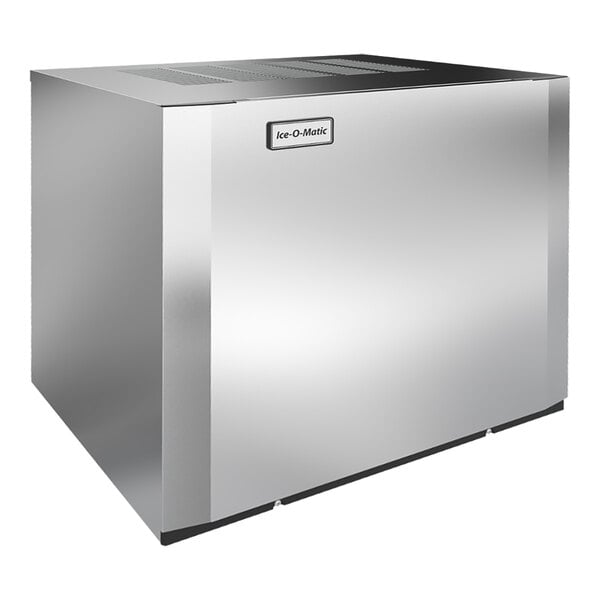

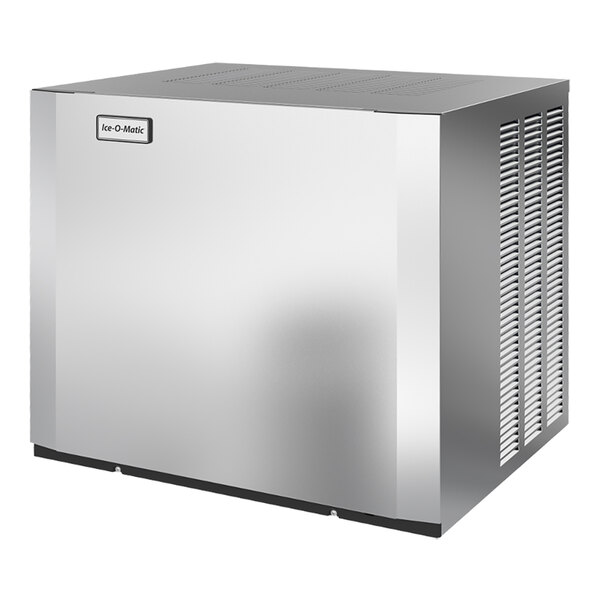

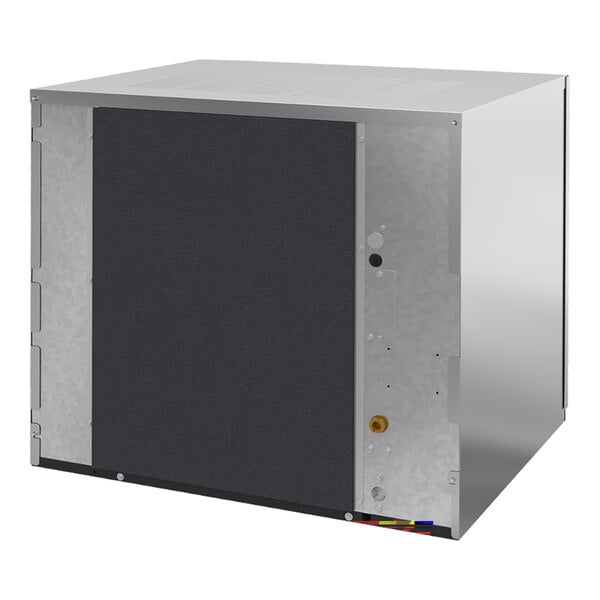

Ice-O-Matic CIM1136FA90 Elevation Series 30 1/4" Air-Cooled Full Dice Cube Ice Machine - 1,000 lb., 208-230V

Item number  458cim1136xfa90MFR number  CIM1136FA90

Ships free withLearn More
Free Shipping

$6,849.00/Each

Accessories & Options

What We Offer

shield icon

Protect Your Product

Coverage starting at $164.55

Earn up to $205.47 back (20,547 points)with a Webstaurant Rewards Visa® Credit Card

Add to Wish List

Usually Ships in 1 -2 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Produces up to 1,000 lb. of full dice cube ice per day
  • Corrosion-resistant and fingerprint-proof aluminum construction
  • Harvest Assist feature offers consistent ice production
  • Quick, easy cleaning with dishwasher-safe components
  • Modular design and dual exhaust; R-290A refrigerant, 208-230V

UPC Code:400017996806

View All Products From Ice-O-MaticView all Ice-O-Matic Air Cooled Ice Machines

Works With

Ice-O-Matic CIM1136FA90 Specs

Quantity
1/Each
Shipping Weight
211 lb.
Width
30 1/4 Inches
Depth
24 1/4 Inches
Height
26 15/16 Inches
Amps
13.6 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
208 - 230 Volts
24 Hour Ice Yield
1,000 Pounds
Ambient Temperature Range
50 - 100 Degrees F
Condenser Type
Air Cooled
Features
Made in America NSF Certified
Ice Type
Dice Full Size Cubes
Installation Type
Modular
Material
Aluminum
Plug Type
Hardwire
Power Usage
3.7 - 4.91 kWh per 100 lbs.
Product Line
Ice-O-Matic Elevation Series
Refrigerant Type
R-290A
Type
Ice Machines
Water Inlet Size
3/8 Inches
Water Pressure Range
20 - 80 PSI
Water Temperature Range
40 - 100 Degrees F
Water Usage
18 Gallons Per 100 lbs.

Ice-O-Matic CIM1136FA90 Details

Produce up to an impressive 1,000 lb. of 7/8" x 7/8" x 7/8" full dice cube ice per day with this Ice-O-Matic Elevation Series air-cooled ice machine. Crafted with corrosion-resistant and fingerprint-proof aluminum, this ice machine is built to withstand the demands of a busy commercial kitchen. Plus, all evaporator plates have durable, electroless nickel plating for added reliability. The Harvest Assist feature ensures consistent ice production for the life of the ice machine to increase capacity, reduce energy consumption, and allow you to keep up with high demand without sacrificing quality.

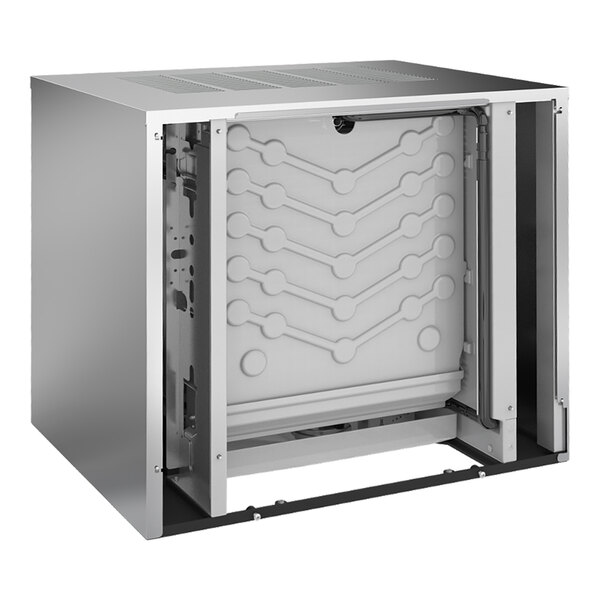

This ice machine is designed for convenience with quick and easy cleaning thanks to its front-facing evaporator and dishwasher-safe components. The modular design and dual exhaust provide flexibility in installation options to suit your kitchen layout. Using R-290A refrigerant, this ice machine is ideal for restaurants, bars, and hotels. This Ice-O-Matic ice machine delivers reliable performance and high-volume ice production to meet your establishment's needs. It requires a 208-230V electric connection and must be hardwired. A cord and plug are not included. Compatible ice bins and dispensers are sold separately.

Overall Dimensions:
 Width: 30 1/4"
Depth: 24 1/4"
Height: 26 15/16"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Certified

    NSF Certified

    This item is certified by NSF to applicable standards.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • UL Certified

    UL Certified

    This product is certified to applicable standards and requirements by UL Solutions.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.

Frequently Asked Questions From Customers

How do I match up ice machines, bins, and dispensers?
To help you find the right bin / dispenser / machine combination for your needs, you'll find manufacturer recommended ice bins and dispensers listed in either the Works With items or the Accessories & Options dropdown on each ice machine's product page. Dispensers and ice bins will have manufacturer recommended ice machines listed in the Works With items on their pages. If the bin or dispenser is wider than the ice machine, additional adapters, deflectors, and/or top kits may be necessary to join the machine to the bin. Please refer to the provided documentation on the ice machine and ice bin / dispenser product pages for more information.

Additionally, adapter and deflector kits can be used to match up ice machines with other types of bins / dispensers. When available, literature from the manufacturer regarding bin / dispenser / machine compatibility and adapter / deflector kits is also included on our product pages and is kept as up-to-date as possible. If you have any questions, our Customer Solutions team is also happy to help!
