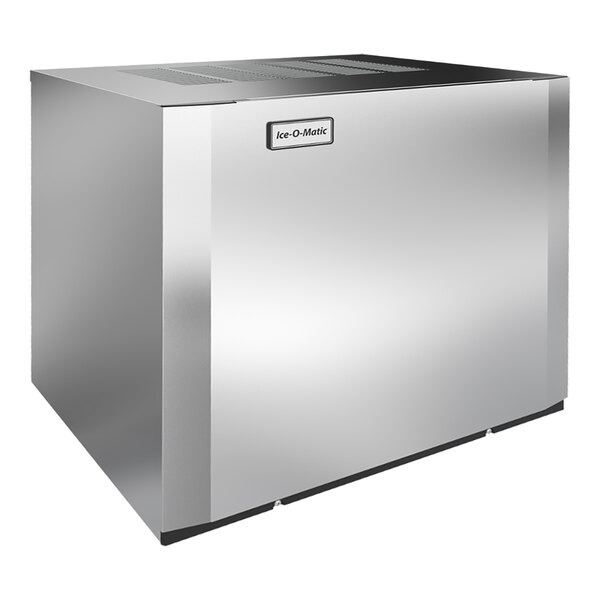

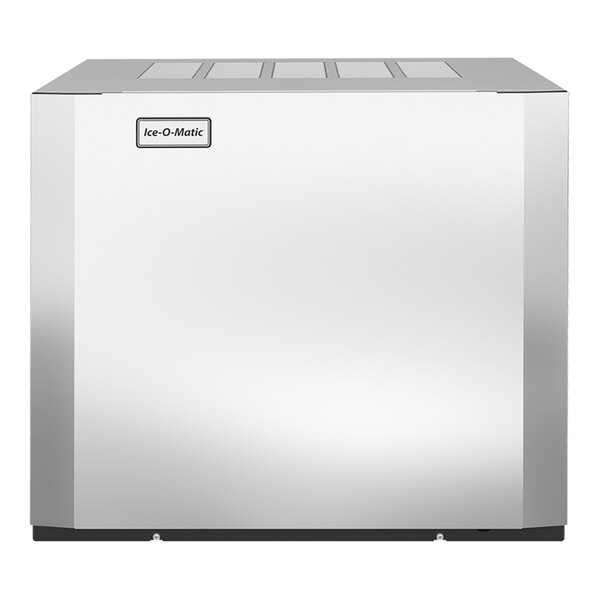

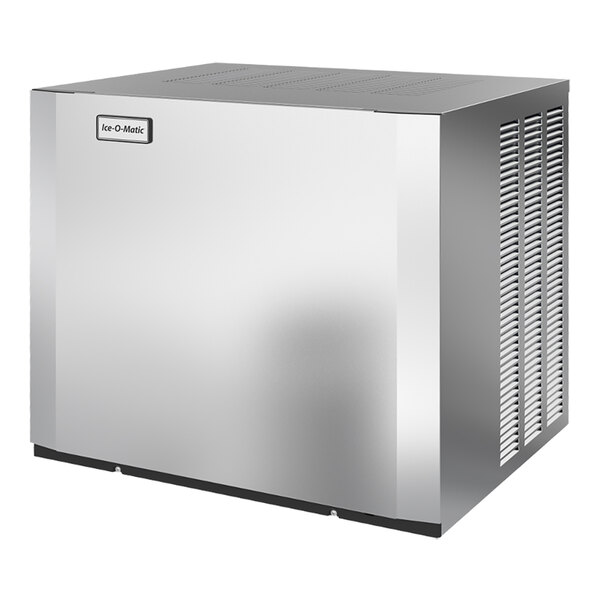

Ice-O-Matic CIM0836HA90 Elevation Series 30 1/4" Air-Cooled Half Dice Cube Ice Machine - 900 lb., 230V

Item number 458cim0836xha90MFR number CIM0836HA90

Video is loading

Video is loading

Note: similar model shown

Ships free with

Free Shipping

Only

$6,043.00/Each

Accessories & Options

Add a Recommended Ice-O-Matic Ice Bin

Add a Recommended Ice-O-Matic Ice Dispenser

What We Offer

Protect Your Product

Coverage starting at $164.55

Earn up to $181.29 back (18,129 points)
(18,129 points) with a Webstaurant Rewards Visa® Credit Card
Apply, opens link in this tab

Add to Wish List

Usually Ships in 1 -2 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

Produces up to 900 lb. of half dice cube ice per day
Corrosion-resistant and fingerprint-proof aluminum construction
Harvest Assist feature offers consistent ice production
Quick and easy cleaning
R-290A refrigerant, 208-230V

UPC Code:400017996776

View All Products From Ice-O-Matic

View all Ice-O-Matic Air Cooled Ice Machines

Works With

Ice-O-Matic B40PS Ice Storage Bin - 344 lb.
$1,321.00/Each
Ice-O-Matic BPF-1 Filler Panel Kit for 30" CIM and ICE Series Cubers on B110 Bin
$178.00/Each
Add to Cart
Quantity for Ice-O-Matic BPF-1 Filler Panel Kit for 30" CIM and ICE Series Cubers on B110 Bin
Ice-O-Matic CD40030 30" Wide Hotel Ice Dispenser 180 lb. Capacity - 115V
$4,487.00/Each
Add to Cart
Quantity for Ice-O-Matic CD40030 30" Wide Hotel Ice Dispenser 180 lb. Capacity - 115V
C Pure Oceanloch+ L Water Filtration System with Oceanloch+ L Cartridge 1 Micron Rating and 1.67 GPM
$179.99/Each
Add to Cart
Quantity for C Pure Oceanloch+ L Water Filtration System with Oceanloch+ L Cartridge 1 Micron Rating and 1.67 GPM
Ice-O-Matic B110PS Reinforced Ice Storage Bin - 854 lb.
$2,141.00/Each
Ice-O-Matic IFQ2 Double Ice Machine Water Filter - 0.5 Micron and 3 GPM
$703.00/Each
Add to Cart
Quantity for Ice-O-Matic IFQ2 Double Ice Machine Water Filter - 0.5 Micron and 3 GPM
Ice-O-Matic IOMQ Single Ice Machine Water Filter Cartridge for IFQ1 and IFQ2 - 0.5 Micron
$114.00/Each
Add to Cart
Quantity for Ice-O-Matic IOMQ Single Ice Machine Water Filter Cartridge for IFQ1 and IFQ2 - 0.5 Micron
Noble Chemical 1 Gallon / 128 oz. QuikSan Nickel-Safe Concentrated Ice Machine Sanitizer - 4/Case
$119.99/Case
Add to Cart
Quantity for Noble Chemical 1 Gallon / 128 oz. QuikSan Nickel-Safe Concentrated Ice Machine Sanitizer - 4/Case

Quantity: 1/Each
Shipping Weight: 212 lb.
Width: 30 1/4 Inches
Depth: 24 1/4 Inches
Height: 26 15/16 Inches
Amps: 12.3 Amps
Hertz: 60 Hz
Phase: 1 Phase
Voltage: 208 - 230 Volts
24 Hour Ice Yield: 900 Pounds
Ambient Temperature Range: 50 - 100 Degrees F
Condenser Type: Air-Cooled
Features: Made in America NSF Certified UL Certified
Ice Type: Dice Half Size Cubes
Installation Type: Modular
Material: Aluminum
Plug Type: Hardwire NEMA 5-50P
Product Line: Ice-O-Matic Elevation Series
Refrigerant Type: R-290A
Type: Ice Machines
Water Inlet Size: 3/8 Inches
Water Pressure Range: 20 - 80 PSI
Water Temperature Range: 40 - 100 Degrees F

Ice-O-Matic CIM0836HA90 Details

Produce up to an impressive 900 lb. of 3/8" x 7/8" x 7/8" half dice cube ice per day with this Ice-O-Matic Elevation Series air-cooled ice machine. Crafted with corrosion-resistant and fingerprint-proof aluminum, this ice machine is built to withstand the demands of a busy commercial kitchen. Plus, all evaporator plates have durable, electroless nickel plating for added reliability. The Harvest Assist feature ensures consistent ice production for the life of the ice machine to increase capacity, reduce energy consumption, and allow you to keep up with high demand without sacrificing quality.

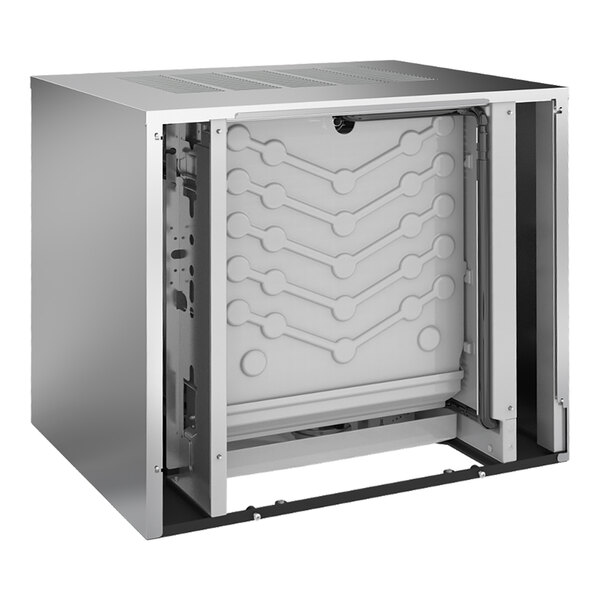

This ice machine is designed for convenience with quick and easy cleaning thanks to its front-facing evaporator and dishwasher-safe components. The modular design and dual exhaust provide flexibility in installation options to suit your kitchen layout. Using R-290A refrigerant, this ice machine is ideal for restaurants, bars, and hotels. This Ice-O-Matic ice machine delivers reliable performance and high-volume ice production to meet your establishment's needs. It requires a 208-230V electric connection and must be hardwired. A cord and plug are not included. Compatible ice bins and dispensers are sold separately.

Overall Dimensions:
Width: 30 1/4"
Depth: 24 1/4"
Height: 26 15/16"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

NSF Certified
This item is certified by NSF to applicable standards.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
UL Certified
This product is certified to applicable standards and requirements by UL Solutions.
Made in America
This item was made in the United States of America.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of Use and Privacy Policy.

Frequently Asked Questions From Customers

How do I match up ice machines, bins, and dispensers?

To help you find the right bin / dispenser / machine combination for your needs, you'll find manufacturer recommended ice bins and dispensers listed in either the Works With items or the Accessories & Options dropdown on each ice machine's product page. Dispensers and ice bins will have manufacturer recommended ice machines listed in the Works With items on their pages. If the bin or dispenser is wider than the ice machine, additional adapters, deflectors, and/or top kits may be necessary to join the machine to the bin. Please refer to the provided documentation on the ice machine and ice bin / dispenser product pages for more information.

Additionally, adapter and deflector kits can be used to match up ice machines with other types of bins / dispensers. When available, literature from the manufacturer regarding bin / dispenser / machine compatibility and adapter / deflector kits is also included on our product pages and is kept as up-to-date as possible. If you have any questions, our Customer Solutions team is also happy to help!

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

My ice machine has been shut down for awhile, how should I restart it?

If your ice machine has been shut down or not in use for a prolonged period time, please reference your machine's user-manual for a restart procedure, often called “Winterization." Please reference your user manual or contact customer service with any questions.

Should I buy an air-cooled or water-cooled ice machine?

Air-cooled ice machines are the most common choice. They're more energy-efficient and use much less water than a water-cooled model. Unless you are replacing an existing water-cooled unit or are operating under very high ambient temperatures, you probably will want an air-cooled unit. It's a great idea to check what your existing unit is before placing your order so that the installation of the new one will go smoothly!

Why should I buy a water filter along with this product?

Whether you purchase the suggested water filter through this product page or acquire your compatible water filter elsewhere, be sure to consult the equipment's manual and warranty to understand the importance of correct water filter usage. Using poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality.

Will this ice machine meet my business’s ice demand?

Every business type has unique demands for ice. If you have any questions about how much ice you’ll need please reference our Types of Ice Machines buying guide.
