$7,481.25/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- Ventless design enables installation in tight spaces
- Patented VariFlame technology replaces standing pilot and increases efficiency; uses natural gas
- Perfect for low and high temperature applications
- Stainless steel jacket, base, and internal 3 gallon accumulator tank
- Features copper heat exchanger and brass pressure reducing valve
- Thermal expansion tank promotes maximum safety
- High temperature shut off features manual reset
- 115V; 55,000 BTU
Other Products from this Line
- Quantity
- 1/Each
- Shipping Weight
- 96 lb.
- Width
- 26 Inches
- Depth
- 18 Inches
- Height
- 17 Inches
- Amps
- 3 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Features
- Made in America
- Flow Rate
- 75 - 132 GPH
- Gas Connection Size
- 1/2 Inches
- Plug Type
- Hardwire
- Power Type
- Natural Gas
- Tank Capacity
- 3 Gallons
- Total BTU
- 55,000 BTU
- Usage
- Light Duty
- Water Inlet Size
- 3/4 Inches
Hubbell PT56 NAT Details

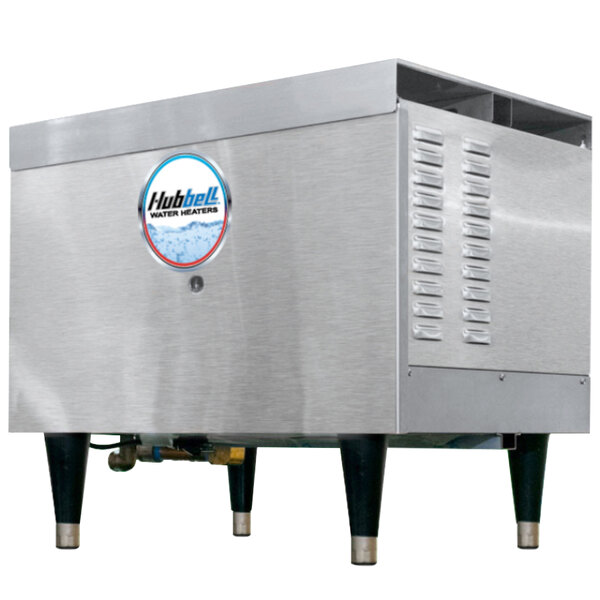

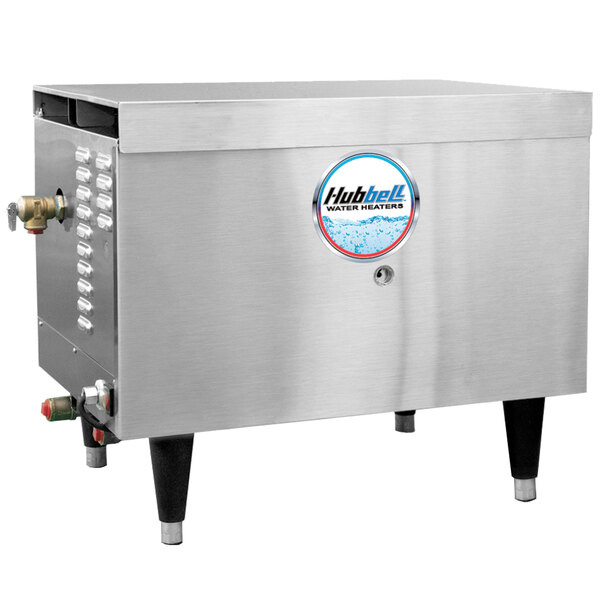

This Hubbell PT56 natural gas 3 gallon compact ventless booster heater is an innovative solution to ensuring that your kitchen tools, cookware, and dinnerware are safe and sanitary after washing! Boasting a unique ventless design, the unit can be installed in tight spaces where other boost heaters can't, such as beneath a dish table in the designated warewashing area. Plus, its stainless steel exterior jacket and base keep the unit protected and free from corrosion, promoting long-lasting performance, even in heavy use applications.
Ideal for both low and high temperature functions, this booster heater ensures that water heats to the proper 180 degrees Fahrenheit for food-safe sanitizing. It achieves this by heating 75 GPH from 110 to 180 degrees Fahrenheit, or 132 GPH from 140 to 180 degrees Fahrenheit. For maximum performance, the unit features a 3 gallon accumulator tank as well as a stainless steel thermal expansion tank to allow water to expand safely in the high heat environment. The unit features patented VariFlame technology, which is a temperature control system that eliminates the need for a standing pilot and boosts the overall efficiency of the unit, providing greater performance with less energy!
This booster heater includes a range of features engineered with safety in mind. For instance, the ECO high temperature shut off immediately powers down the unit if it reaches unsafe temperatures for operation. In this case, you can use the manual reset to easily restore the machine and continue operation once in safer conditions. Another great safety feature of this booster heater is the brass pressure reducing valve, which is supplied with each booster heater. A finned tube copper heat exchanger, a temperature and pressure relief valve, and two temperature and pressure gauges are included, as well.
This unit stands on 6" plastic legs, providing enough clearance for installation on the floor of your kitchen or dish washing area. Even though this booster heater does not require venting, consult your local code to determine if ventless operation is permitted. The unit requires a 115V electric connection and a natural gas connection for operation.
Overall Dimensions:
Width: 26"
Depth: 18"
Height: 17"
Customer questions about this product
Can this booster water heater replace a primary water heater?
My business is at a high elevation; does this change anything when I order gas cooking equipment?
ASME U Stamp
This item meets standards imposed by ASME as part of the BPVC certification program that ensures the item conforms to the rules governing the design, fabrication, assembly, and inspection of boiler and pressure vessel components.
UL Classified EPH
This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
1/2" Gas Connection
This unit comes with a 1/2" gas connection to be installed by a professional.
Made in America
This item was made in the United States of America.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
