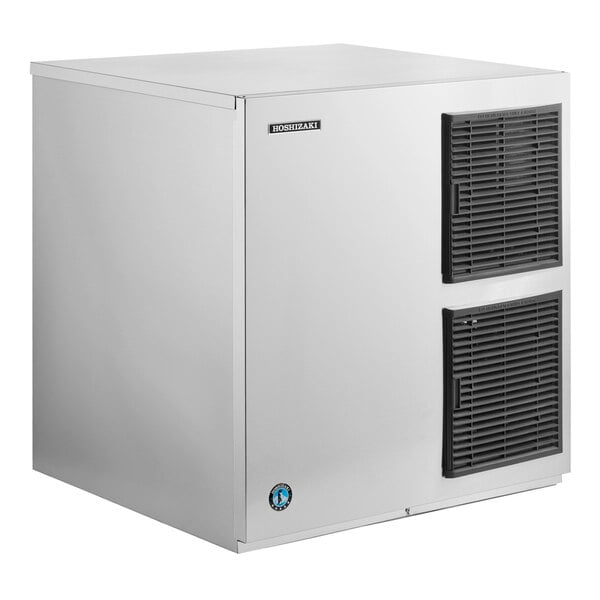

Hoshizaki KM-1130MAK2 30" Air-Cooled Modular Crescent Cube Ice Machine - 1,181 lb., 208-230V
Item number 415km1130mak2MFR number KM-1130MAK2
Works WithView All Items
$8,500.00/Each
Contact us for details
Start a Live ChatMon-Thu 8AM-8PM EST · Fri 8AM-6PM EST · Sat 9AM-4PM EST
- Apply, opens link in this tab
Earn up to $255.00 back (25,500 points)
(25,500 points) with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview
- Produces up to 1,181 lb. of crescent cube ice per day
- EverCheck alert system and CycleSaver design

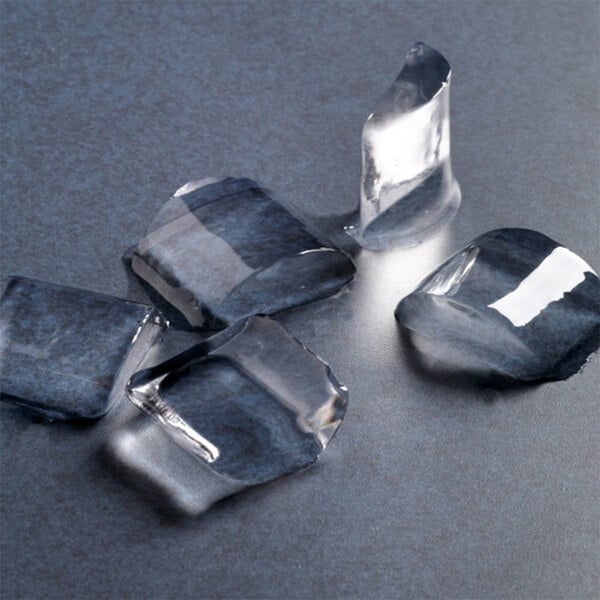

- Each crescent cube measures 1 1/8" x 1 1/2" x 1/2"
- Includes removable air filters
- Stainless steel double-sided evaporator
UPC Code:400018247969
Works With
View All Items- Quantity
- 1/Each
- Shipping Weight
- 270 lb.
- Width
- 30 1/4 Inches
- Depth
- 27 1/2 Inches
- Height
- 32 1/2 Inches
- Amps
- 11.8 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 208 - 230 Volts
- 24 Hour Ice Yield
- 1,181 Pounds
- Ambient Temperature Range
- 45 - 100 Degrees F
- Condenser Type
- Air-Cooled
- Features
- Antimicrobial Made in America NSF Certified UL Certified
- Ice Type
- Crescent Cubes
- Installation Type
- Modular
- Material
- Stainless Steel
- Plug Type
- Hardwire
- Refrigerant Type
- R-448A
- Type
- Ice Machines
- Water Inlet Size
- 3/8 Inches
- Water Pressure Range
- 10 - 113 PSI
- Water Temperature Range
- 45 - 90 Degrees F
Hoshizaki KM-1130MAK2 Details
Designed to produce great tasting ice at an efficient rate, this Hoshizaki 30" air-cooled ice machine combines reliability with top notch energy saving capabilities. With the ability to produce up to 1,181 lb. of ice cubes per day, this unit is the perfect addition to your restaurant or convenience store. Each crescent cube measures 1 1/8" x 1 1/2" x 1/2", providing a larger cube that will not melt as fast and water down drinks, making it also great for bars.
This unit uses R-448A refrigerant and a CycleSaver design for maximum performance and energy efficiency. It consistently produces crescent shaped ice cubes that are both crystal clear in appearance and easy to chew. It features a durable stainless steel exterior. Plus, the stainless steel evaporator is designed for increased efficiency with maximized surface area, a faster harvest cycle for increased production, and an increased bonded surface area that creates a stronger, more durable structure.

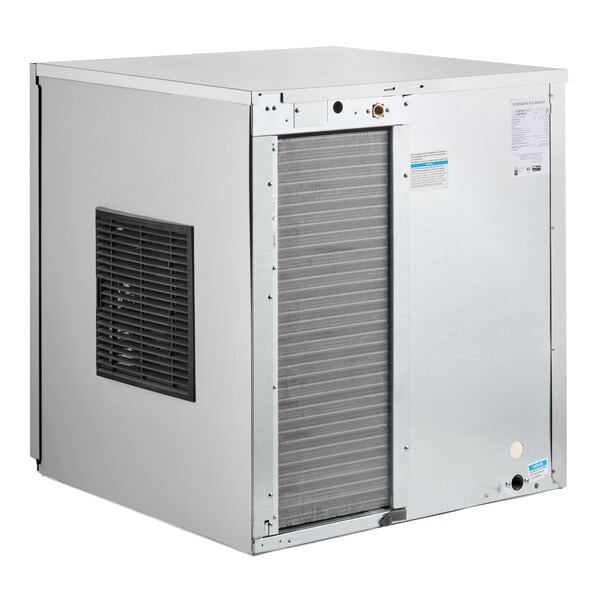

The EverCheck alert system notifies you when your machine needs serviced, making maintenance simpler than ever. Plus, to further ease maintenance, this unit contains removable air filters, which keep the condenser coils clean to improve performance and longevity. It requires a 208-230V electrical connection for operation.
Overall Dimensions:
Width: 30 1/4"
Depth: 27 1/2"
Height: 32 1/2"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Antimicrobial
This item is designed to prevent the growth of harmful bacteria.

ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

Made in America
This item was made in the United States of America.

Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.

3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.

UL Certified
This product is certified to applicable standards and requirements by UL Solutions.

NSF Certified
This item is certified by NSF to applicable standards.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
Additionally, adapter and deflector kits can be used to match up ice machines with other types of bins / dispensers. When available, literature from the manufacturer regarding bin / dispenser / machine compatibility and adapter / deflector kits is also included on our product pages and is kept as up-to-date as possible. If you have any questions, our Customer Solutions team is also happy to help!
Resources and Downloads for Hoshizaki KM-1130MAK2

Specsheet
Opens in new tab
Manual
Opens in new tab
Warranty
Opens in new tab
Parts Manual
Opens in new tab
Service Manual
Opens in new tabA PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
Warranty Info
Note: warranty may vary depending on equipment production date.
