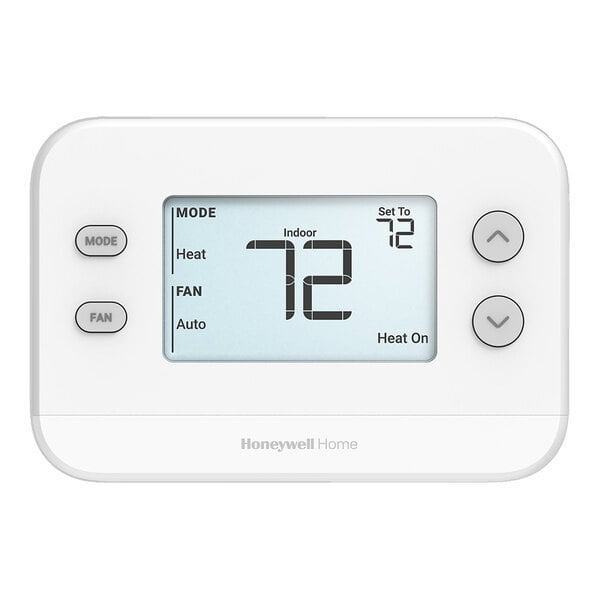

Honeywell Home FocusPRO N100 Non-Programmable Sensor Compatible Multi-Stage Digital Thermostat TH1320U4002/U - 24V
Item number 92b1320u4002MFR number TH1320U4002/U
Quick Shipping
Usually ships in 1 business day
Product Overview
- Features both a 2H / 2C conventional system and a 3H / 2C heat pump system
- Includes an optional filter change reminder
- Backlit digital display with customizable settings
- UWP wall plate included for easy installation
- Compatible with the Honeywell wired outdoor remote sensor (sold separately)
UPC Code:194159017429
Other Products from this Line
- Quantity
- 1/Each
- Shipping Weight
- 0.71 lb.
- Width
- 5 1/8 Inches
- Depth
- 1 3/16 Inches
- Height
- 3 7/16 Inches
- Voltage
- 24 Volts
- Battery Type
- AA
- Color
- White
- Control Type
- Digital
- Features
- Backlight
- Maximum Temperature
- 99 Degrees F
- Minimum Temperature
- 32 Degrees F
- Operating Temperature
- 32 - 102 Degrees F
- Plug Type
- Hardwire
- Power Type
- Battery Electric
- Type
- Thermostats
Honeywell Home TH1320U4002/U Details
Keep your facility at the optimal temperature with this Honeywell Home FocusPRO N100 non-programmable digital thermostat. This thermostat features both a 2H / 2C conventional system and a 3H / 2C heat pump system, and it has simple buttons to adjust the temperature from 32-90 degrees Fahrenheit on heating and 50-99 degrees Fahrenheit on cooling. The large backlit digital display is easy to read and offers customizable display settings. Plus, this thermostat features an optional filter change reminder that will alert you to change the air filter in your HVAC system.
Designed for ease of installation, this thermostat comes with a UWP wall plate. It can be paired with the Honeywell wired outdoor remote sensor (sold separately), giving you the added flexibility to display the current outdoor temperature, set the unit to control either an electric or gas furnace, and prevent auxiliary heat from engaging. Additionally, this thermostat has a lockout feature to stop the fan after a cooling call. It boasts an ambient operating temperature of 32-102 degrees Fahrenheit. It requires a 24V AC electrical connection for operation, but it can also be operated or backed up using the 2 included AA batteries.
Overall Dimensions:
Width: 5 1/8"
Depth: 1 3/16"
Height: 3 7/16"

Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
