Honeywell Home FocusPRO S200 WiFi-Enabled Programmable Sensor Compatible Multi-Stage Digital Thermostat TH2320WF4010/U - 24V
Item number 92b2320wf401MFR number TH2320WF4010/U
Quick Shipping
Usually ships in 1 business day
Product Overview
- Features both a 2H / 2C conventional system and a 3H / 2C heat pump system
- WiFi-enabled for remote control and monitoring using the Resideo Pro app
- Backlit digital display with customizable settings
- Fully programmable with options for 5/1/1 and 7-day scheduling
- Compatible with the Honeywell wired outdoor remote sensor (sold separately)
UPC Code:30194159017468
Other Products from this Line
- Quantity
- 1/Each
- Shipping Weight
- 0.75 lb.
- Width
- 5 1/8 Inches
- Depth
- 1 3/16 Inches
- Height
- 3 7/16 Inches
- Voltage
- 24 Volts
- Color
- White
- Control Type
- Digital
- Features
- App Connectivity Backlight Energy Star Qualified Programmable WiFi Enabled
- Maximum Temperature
- 99 Degrees F
- Minimum Temperature
- 32 Degrees F
- Operating Temperature
- 32 - 102 Degrees F
- Plug Type
- Hardwire
- Power Type
- Electric
- Type
- Thermostats
Honeywell Home TH2320WF4010/U Details
Keep your facility at the optimal temperature with this Honeywell Home FocusPRO S200 programmable digital thermostat. This thermostat features both a 2H / 2C conventional system and a 3H / 2C heat pump system, and it has simple buttons to adjust the temperature from 32-90 degrees Fahrenheit on heating and 50-99 degrees Fahrenheit on cooling. It delivers fast and dependable WiFi so you can remotely control your thermostat using the Resideo Pro app on your smart device. This unit is also compatible with Google Assistant and Amazon Alexa.
The large backlit digital display is easy to read and offers customizable display settings. This programmable unit includes flexible scheduling options for 5-1-1-day, 5-2-day, 7-day, or 1-week increments. With auto-away functionality and geofencing technology, this unit can automatically adjust your thermostat settings based on your location, helping to optimize your energy usage. Plus, it has a keypad lockout to prevent tampering, and it even features an optional filter change reminder that will alert you to change the air filter in your HVAC system.

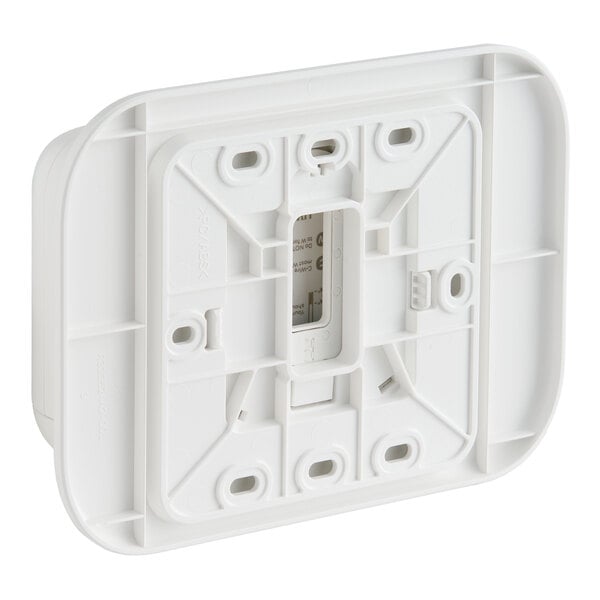

Designed for ease of installation, this thermostat comes with a UWP wall plate. It can be paired with the Honeywell Home wired outdoor remote sensor (sold separately), giving you the added flexibility to display the current outdoor temperature, set the unit to control either an electric or gas furnace, and prevent auxiliary heat from engaging. Additionally, this thermostat has a lockout feature to stop the fan after a cooling call. It boasts an ambient operating temperature of 32-102 degrees Fahrenheit. It requires a 24V AC electrical connection for operation.
Overall Dimensions:
Width: 5 1/8"
Depth: 1 3/16"
Height: 3 7/16"

Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
