$3,199.35/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- Holds one full size food pan; slanted design for easy access
- Full-body insulation keeps cold food at serving temperatures
- Features auto-defrost function and electronic controls
- Built-in 1" drain
- 120V; Condenser sold separately
- Quantity
- 1/Each
- Shipping Weight
- 80 lb.
- Width
- 19 Inches
- Depth
- 27 Inches
- Height
- 12 Inches
- Cutout Width
- 17 1/8 - 18 Inches
- Cutout Depth
- 25 3/16 - 26 Inches
- Amps
- 0.1 Amp
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 120 Volts
- Wattage
- 12 Watts
- Compressor Location
- Remote
- Features
- Made in America NSF Listed
- Installation Type
- Drop In
- Material
- Aluminum / Stainless Steel
- Number of Wells
- 1 Well
- Pan Mounting
- Recessed
- Plug Type
- Hardwire
- Power Type
- Electric
- Style
- Slanted/Slope Top
- Temperature Settings
- Adjustable
- Type
- Refrigerated Food Wells

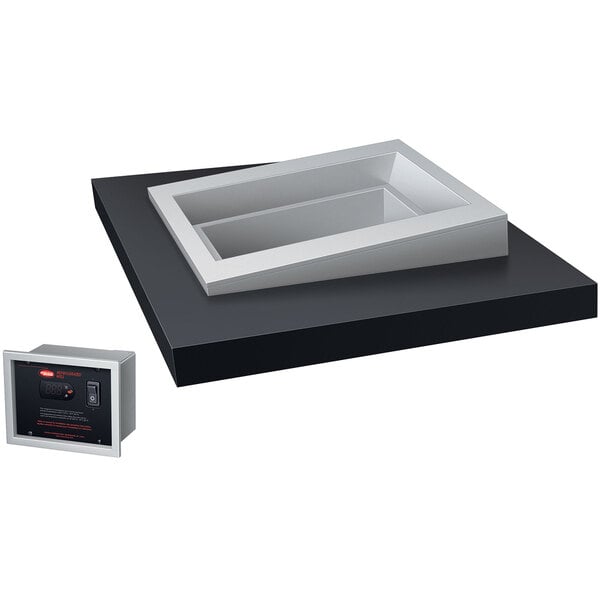

Hatco CWBX-1 AND CWBR-1SLANT Details
Keep your most popular cold dishes chilled to the perfect serving temperature with the Hatco CWBX-1 one pan slanted refrigerated drop-in cold food well! The slanted design of this unit provides a 5 degree tilt from the back of the unit to the front so that your customers or employees can access cold food items more easily. Plus, this slanted model still looks uniform with the rest of the Hatco drop-in food wells for a consistent look across any serving line.
This food well holds 1 full size food pan and features a drop-in design that can easily be installed into existing countertops, buffet lines, and other surfaces. The full-body insulation improves energy efficiency while retaining temperature and thanks to the built-in 1" drain, clean-up takes a matter of moments. This unit ships without a condensing unit for greater flexibility when you are setting up a configuration with multiple cold well units. It does include the solenoid valve and the electronic control panel, and for even greater convenience the remote controls can be mounted up to 16' away.
Overall Dimensions:
Width: 19"
Depth: 27"
Height: 12"
Countertop Cutout Dimensions:
Width: 17 1/8" to 18"
Depth: 25 3/16" to 26"
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Made in America
This item was made in the United States of America.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Need Parts & Accessories?
Show replacement parts and accessories for Hatco CWBX-1 AND CWBR-1SLANT today!
Resources and Downloads for
Hatco CWBX-1 AND CWBR-1SLANT
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
NOTICE: This product does not ship internationally.
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
