Product Overview

  • 14-gauge cold rolled steel welded uprights and beams with 10-gauge steel brackets
  • Marine blue frames and light gray beams with corrosion-resistant finish
  • Beams adjustable on 3" centers
  • Particleboard decking is cost-effective and eco-friendly
  • Starter kit includes 2 upright frames and 3 levels of shelf beams
UPC Code:192109029355

Hallowell HBR7224123-3S-P-PB Specs

Quantity
1/Each
Shipping Weight
254.6 lb.
Length
72 Inches
Width
24 Inches
Height
123 Inches
Capacity
10,500 lb.
Color
Blue  Gray
Features
Adjustable  Decking Included  Made in America
Finish
Powder-Coated
Gauge
10 - 14 Gauge
Individual Shelf Capacity
3,500 lb.
Installation Type
Freestanding
Material
Particle Board  Steel
Number of Shelves
3 Shelves
Orientation
Horizontal
Shape
Rectangle
Thickness
5/8 Inch
Type
Bulk Racks  Racks

Hallowell HBR7224123-3S-P-PB Details

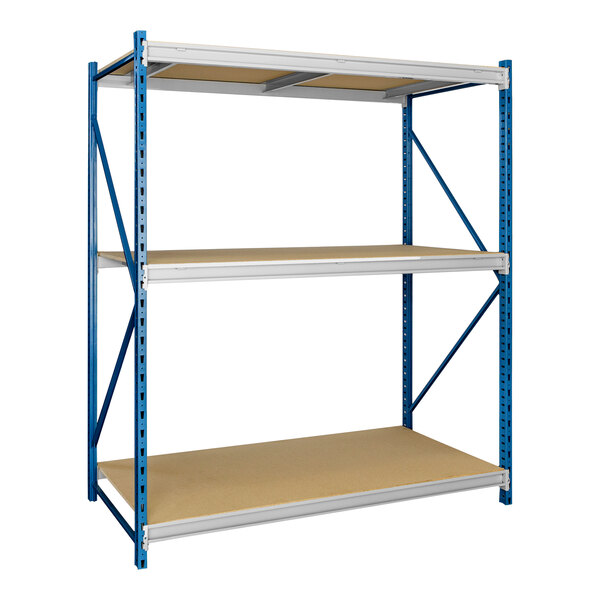

This Hallowell bulk rack starter is an exceptional storage solution for your industrial organization system! With 2 upright frames and 3 levels of shelf beams, this bulk rack starter is perfect for storing moderately large or heavy items in a range of storage applications. It allows for direct front and back access to stored items for simple stock management and is designed for reliability in the most demanding industrial conditions. This unit is intended for hand-load applications only.

The upright frames, shelf beams, and front-to-back bracing are all made from 14-gauge cold rolled steel, with 10-gauge steel prong brackets welded onto the ends of each beam. Each frame post is roll formed into a 1 1/2" x 2 15/16" tubular section and includes 3/8" x 7/8" rectangular slots to receive shelf clips for added storage versatility. Each shelf beam is formed into a channel shape with slots for the front-to-back angled channel bracing. All beams are adjustable on 3" centers, allowing you to customize the perfect storage solution for your needs. This versatile design provides room for expansion should you wish to add more levels to your rack (additional levels sold separately).

While the sleek color of the light gray beams and marine blue frames adds a professional presentation, the corrosion-resistant finish ensures long-lasting use even in harsh environments. After being fabricated, painted, and cleaned, the durable steel is coated with a seven-stage zinc / iron phosphate solution followed by a powder coating for maximum reliability. The industrial grade, type 1-M-2 particleboard decking is 5/8" thick and a more cost-effective and eco-friendly material than other shelving options. This Hallowell bulk rack starter is a great choice for retail stores, warehouses, and other commercial facilities!

Overall Dimensions:
Length: 72"
Width: 24"
Height: 123"
Individual Shelf Capacity: 3,500 lb.
Capacity: 10,500 lb.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can this item fit through a standard height 80" doorway ?

Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.
