Product Overview

  • Heating cables activate via thermostat when water temperature drops below 75 degrees Fahrenheit
  • UV-resistant ABS plastic with polyethylene insulation protects plumbing from extreme cold
  • Orange ABS plastic shower head has a 20 GPM flow control
  • Spray head is freeze-resistant and includes float-off dust covers
  • Fully wired with class 1, division 2 rated junction box and components
UPC Code:400014084100
Shipping:Usually Ships in 25 Business Days

Guardian Equipment GFR3100 Specs

Shipping Weight
192 lb.
91 3/4 Inches
Made in America
Flow Rate
20 GPM
Installation Type
Floor Mounted
Number of Spray Heads
Eye Wash Stations
Water Inlet Size
1 1/4 Inches

Customer questions about this product

Can this item fit through a standard height 80" doorway ?
Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.
Ask your own question!

Guardian Equipment GFR3100 Details

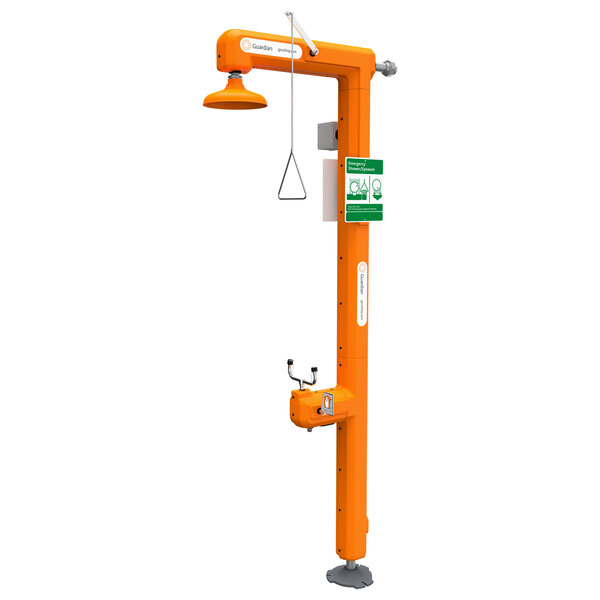

When working with chemicals or other hazardous materials it is vital that you have a solution for direct exposure. With the Guardian Equipment GFR3100 heated safety station with eyewash, you can greatly reduce potential workplace injury and protect workers from irreparable harm. Complete with both eyewash valves and a shower head, this safety station can handle full body rinses as well as eye flushes. It also is rated for use in a class 1, division 2 environment.

This safety station is designed to hold up to extreme cold conditions without freezing. With heat-tracing cable wrapped around the water pipe, this station can withstand weather down to -40 degrees Fahrenheit. The heated cable is activated by a thermostat that reads the internal temperature of the piping and turns on when the temperature drops below 75 degrees Fahrenheit. Polyethylene insulation also protects the pipes from the outside elements and keeps warm water and pipes from losing their heat. An ANSI-compliant identification sign mounts directly to the upright of the station for clear direction on operation.

This unit is encased in a bright orange UV-resistant ABS plastic jacket that is durable and also easy to identify in an emergency. Type 304 stainless steel schedule 40 pipes and fittings offer long lasting service life. The stainless steel shower head is 10" in diameter and has a 20 GPM flow control. The shower is activated with a pull down rod that controls a stay-open ball valve that will keep the shower head on as long as it is in the downward position. A paddle right next to the eyewash valve turns on the eye flush for as long as it is pressed. Each freeze-resistant spray head has a float-off dust cover and an internal flow control. This unit has a top mounted 1 1/4" NPT female supply inlet and requires a 120V electrical connection for operation.

Overall Dimensions:
Height: 91 3/4"
Shower Head Diameter: 10"
Floor Flange Diameter: 9"
Pull Rod Length: 23 1/4"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • Made in America

    Made in America

    This item was made in the United States of America.
