Product Overview

  • Water supply is sourced from below the frost line to prevent pipes from freezing
  • Designed so that water is completely drained after use so there is no standing water to freeze
  • Orange ABS plastic shower head has a 20 GPM flow control
  • WideArea eye/face wash features 4 GS-Plus spray heads
  • Each spray head includes a flip-top dust cover and internal flow control
UPC Code:400014084087

Guardian Equipment GFR1909 Specs

Quantity
1/Each
Shipping Weight
42 lb.
Height
89 3/4 Inches
Floor Flange Diameter
9 Inches
Shower Head Diameter
10 Inches
Color
Orange
Features
Made in America
Flow Rate
20 GPM
Installation Type
Floor Mounted
Material
ABS Plastic  Stainless Steel
Number of Spray Heads
4 Spray Heads
Type
Eye Wash Stations
Water Inlet Size
1 1/4 Inches

Customer questions about this product

How do I know the bury depth I need?

The bury depth you select should be at least the minimum depth required to place the valve and water lines below the frost line in your area, as seasonal freezing and thawing temperatures can cause shifting and possibly breakage in anything permanently installed above the frost line. Please reach out to our Customer Solutions team before ordering if you require assistance!
Ask your own question!

Guardian Equipment GFR1909 Details

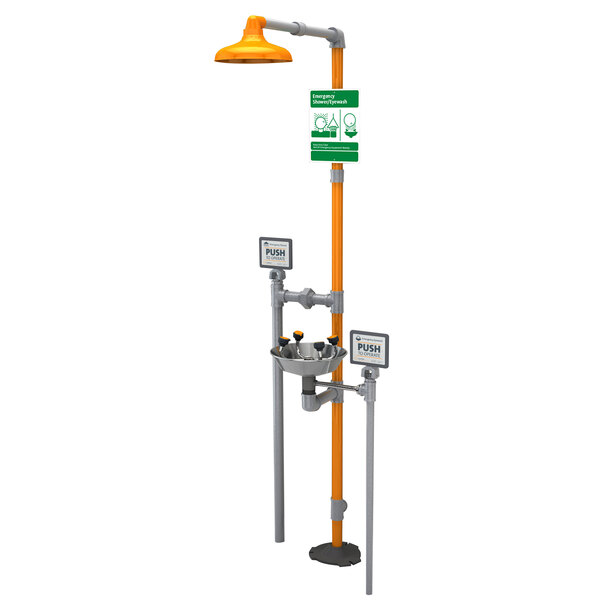

When working with chemicals or other hazardous materials it is vital that you have a solution for direct exposure. With the Guardian Equipment GFR1909 freeze-resistant safety station you can greatly reduce potential workplace injury and protect workers from irreparable harm. Complete with both eyewash valves and a shower head, this safety station can handle full body rinses as well as eye flushes.

This safety station is designed to hold up to extreme cold conditions without freezing. This is accomplished by burying the valves and supply lines below the frost line. It includes bleed outlets that drain off excess water so that no freezing can occur because of standing-water. An ANSI-compliant identification sign mounts directly to the upright of the station for clear direction on operation.

The shower head is 10" in diameter and has a 20 GPM flow control. The eyewash and shower each have their own respective hand paddles that when pressed will activate the flow of water for as long as they are engaged. The WideArea eye/face wash includes 4 GS-Plus spray heads for a wider area of flushing that covers both the eyes and the face. Each freeze-resistant spray head has a float-off dust cover and an internal flow control. This unit has a bottom mounted 1 1/4" NPT male supply inlet for the shower, a 3/4" NPT female inlet for the eyewash, and requires a 120V electrical connection for operation.

Overall Dimensions:
Height: 89 3/4"
Shower Head Diameter: 10"
Floor Flange Diameter: 9"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 1 1/4" Water Connection

    1 1/4" Water Connection

    This unit comes with a 1 1/4" water connection for water supply.
