Product Overview
- Recessed style saves on space and offers a barrier-free eye/face wash
- Stainless steel shower head has a 20 GPM flow control and supply pipe for wall mount installation
- Flip-down drain pan routes water back into unit for drainage
- Features a "panic bar" handle that pulls the spray head down and activates water
- Waste water is collected by a daylight drain for drainage out of the front of the unit
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 71 lb.
- Width
- 21 Inches
- Depth
- 3 1/2 Inches
- Height
- 33 Inches
- Shower Head Diameter
- 10 Inches
- Color
- Silver
- Features
- ADA Compliant Made in America
- Flow Rate
- 20 GPM
- Installation Type
- Recessed
- Material
- Stainless Steel
- Number of Spray Heads
- 2 Spray Heads
- Type
- Emergency Showers Safety Stations
- Water Inlet Size
- 1 Inch
Guardian Equipment GBF2172 Details

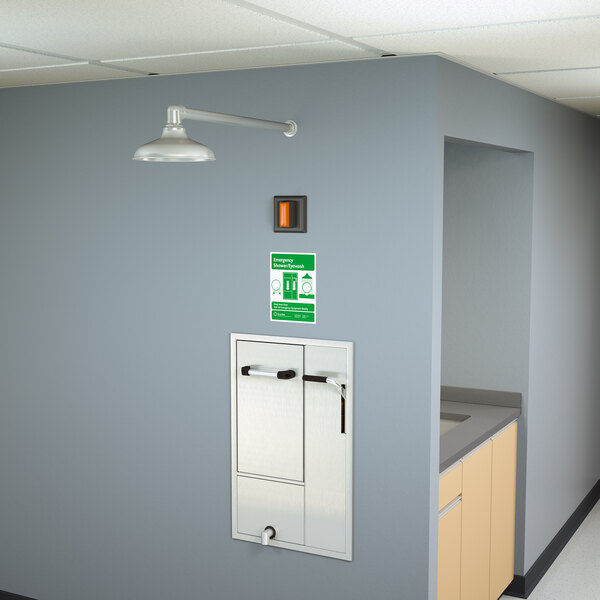

When working with chemicals or other hazardous materials it is vital that you have a solution for direct exposure. With the Guardian Equipment GBF2172 recess mounted safety station with drain pan, daylight drain, and wall mounted exposed shower head, you can greatly reduce potential workplace injury and protect workers from irreparable harm. Complete with both eyewash valves and a shower head, this safety station can handle full body rinses as well as eye flushes.
The recess mounted design is a great way to offer barrier-free access to the station, while also keeping it tucked away for a more professional appearance. The pull-down style eye/face wash not only looks nicer than a fully exposed assembly, it also remains better protected from incidental damage. To activate the eye/face wash just simply pull down the "panic bar" and the flow of water will automatically switch on until the assembly is returned back to the vertical position. All waste water is collected in a drain pan and re-directed to an included daylight drain so that you do not need to tie the system into a drainage system.
An ANSI-compliant identification sign mounts directly to the upright of the station for clear direction on operation. Brushed stainless steel pipes and fittings offer long lasting service life. The stainless steel shower head is 10" in diameter and has a 20 GPM flow control. It includes a horizontal supply pipe and wall escutcheon for mounting to a finished wall. The shower is activated with a pull down rod that controls a stay-open ball valve that will keep the shower head on as long as it is in the downward position. This unit has a 1" NPT female supply inlet.
Overall Dimensions:
Width: 21"
Depth: 3 1/2"
Height: 33"
Shower Head Diameter: 10"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
Made in America
This item was made in the United States of America.
1" Water Connection
This unit comes with a 1" water connection for water supply.
