Product Overview

  • Recessed style saves on space and offers a barrier-free eye/face wash
  • Stainless steel shower head has a 20 GPM flow control and can be flush mounted in a ceiling
  • Flip-down drain pan routes water back into unit for drainage
  • Features a "panic bar" handle that pulls the spray head down and activates water
  • Waste water is collected by a daylight drain for drainage out of the front of the unit
UPC Code:400014083950

Guardian Equipment GBF2162 Specs

Quantity
1/Each
Shipping Weight
57 lb.
Width
21 Inches
Depth
3 1/2 Inches
Height
33 Inches
Shower Head Diameter
10 Inches
Color
Silver
Features
ADA Compliant  Made in America
Flow Rate
20 GPM
Installation Type
Recessed
Material
Stainless Steel
Number of Spray Heads
2 Spray Heads
Type
Emergency Showers  Safety Stations
Water Inlet Size
1 Inch

Guardian Equipment GBF2162 Details

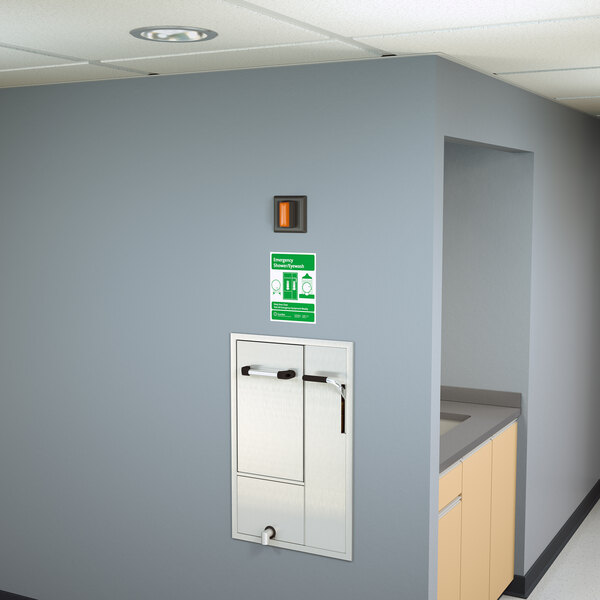

When working with chemicals or other hazardous materials it is vital that you have a solution for direct exposure. With the Guardian Equipment GBF2162 recess mounted safety station with drain pan, daylight drain, and recess mounted shower head, you can greatly reduce potential workplace injury and protect workers from irreparable harm. Complete with both eyewash valves and a shower head, this safety station can handle full body rinses as well as eye flushes.

The recess mounted design is a great way to offer barrier-free access to the station, while also keeping it tucked away for a more professional appearance. The pull-down style eye/face wash not only looks nicer than a fully exposed assembly, it also remains better protected from incidental damage. To activate the eye/face wash just simply pull down the "panic bar" and the flow of water will automatically switch on until the assembly is returned back to the vertical position. All waste water is collected in a drain pan and re-directed to an included daylight drain so that you do not need to tie the system into a drainage system.

An ANSI-compliant identification sign mounts directly to the upright of the station for clear direction on operation. Brushed stainless steel pipes and fittings offer long lasting service life. The stainless steel shower head is 10" in diameter and has a 20 GPM flow control. It includes a flange for recess mounting into a finished ceiling. The shower is activated with a pull down rod that controls a stay-open ball valve that will keep the shower head on as long as it is in the downward position. This unit has a 1" NPT female supply inlet.

Overall Dimensions:
Width: 21"
Depth: 3 1/2"
Height: 33"
Shower Head Diameter: 11 3/4"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 1" Water Connection

    1" Water Connection

    This unit comes with a 1" water connection for water supply.
