Product Overview

  • Shower activates via a pull cord while eyewash has an easy-to-use hand paddle
  • All-stainless steel construction is durable and corrosion resistant
  • WideArea eye/face wash features 4 GS-Plus spray heads
  • Each spray head includes a flip-top dust cover and internal flow control
  • ANSI-compliant identification sign offers easy to understand directions for operation
UPC Code:013536113823

Guardian Equipment G1994HFC Specs

Quantity
1/Each
Shipping Weight
41 lb.
Height
89 Inches
Pull Rod Length
29 Inches
Floor Flange Diameter
9 Inches
Shower Head Diameter
10 Inches
Color
Orange
Features
Made in America
Flow Rate
20 GPM
Installation Type
Floor Mounted
Material
ABS Plastic  Stainless Steel
Type
Emergency Showers  Eye and Face Wash Stations
Water Inlet Size
1 1/4 Inches

Guardian Equipment G1994HFC Details

When working with chemicals or other hazardous materials it is vital that you have a solution for direct exposure. With the Guardian Equipment G1994HFC stainless steel safety station with WideArea eye/face wash, you can greatly reduce potential workplace injury and protect workers from irreparable harm. Complete with both eye/face wash valves and a shower head, this safety station can handle full body rinses as well as eye flushes.

The stainless steel construction offers durability and corrosion resistance. This unit is encased in a bright orange UV-resistant ABS plastic jacket that is durable and also easy to identify in an emergency. The shower head is 10" in diameter and has a 20 GPM flow control. The shower is activated with a pull down rod that controls a stay-open ball valve that will keep the shower head on as long as it is in the downward position.

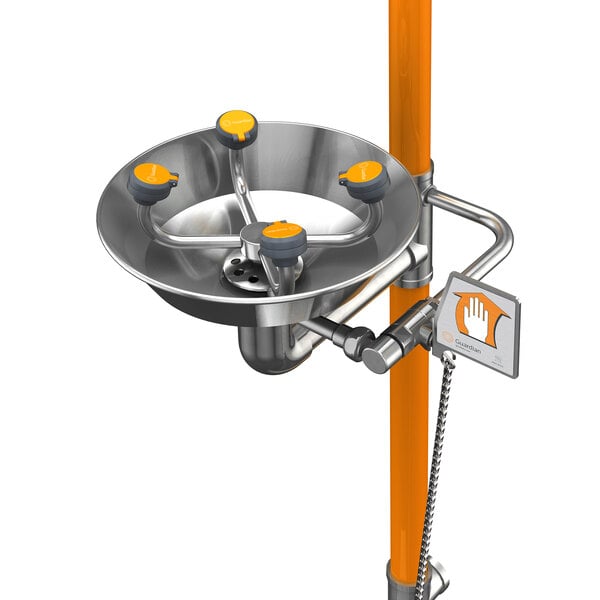

The WideArea eye/face wash includes 4 GS-Plus spray heads for a wider area of flushing that covers both the eyes and the face. A paddle right next to the eye/face wash valve turns on the eye flush for as long as it is pressed. Alternatively, the eye/face wash can be switched on with an optional foot control for hands free operation. Each spray head has a float-off dust cover and an internal flow control. The wash bowl catches any excess water and funnels it to the drain line. An ANSI-compliant identification sign mounts directly to the upright of the station for clear direction on operation. This unit has a top mounted 1 1/4" NPT female supply inlet.

Overall Dimensions:
Height: 89"
Shower Head Diameter: 10"
Floor Flange Diameter: 9"
Pull Rod Length: 29"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • 1 1/4" Water Connection

    1 1/4" Water Connection

    This unit comes with a 1 1/4" water connection for water supply.
