- Freeze protection valve allows water to circulate when temperature drops below 40 degrees Fahrenheit
- Scald protection valve circulates water to lower temperature when water reaches 95 degrees Fahrenheit
- Shower activates via a pull cord while eyewash has an easy-to-use hand paddle
- Each spray head includes a flip-top dust cover and internal flow control
- ANSI-compliant identification sign offers easy to understand directions for operation
Guardian Equipment G1942 Specs
- Shipping Weight
- 48 lb.
- 89 Inches
- Pull Rod Length
- 29 Inches
- Floor Flange Diameter
- 9 Inches
- Shower Head Diameter
- 10 Inches
- Made in America
- Flow Rate
- 20 GPM
- Installation Type
- Floor Mounted
- ABS Plastic
- Emergency Showers
Eye Wash Stations
- Water Inlet Size
- 1 1/4 Inches
Guardian Equipment G1942 Details

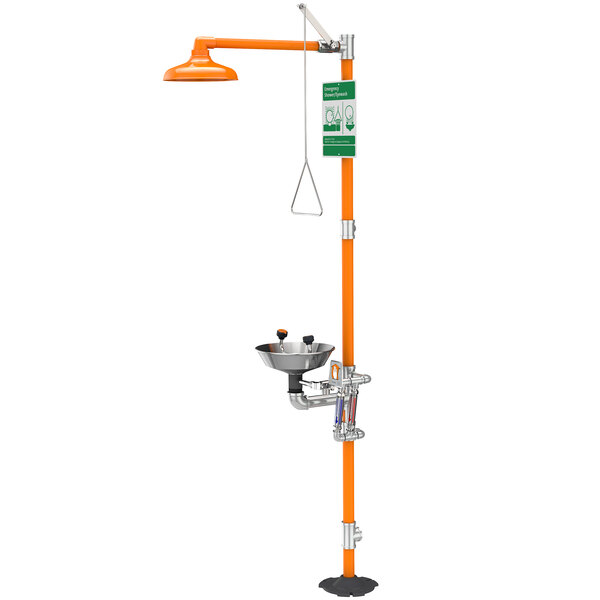

When working with chemicals or other hazardous materials it is vital that you have a solution for direct exposure. With the Guardian Equipment G1942 safety station with eyewash and freeze/scald protection, you can greatly reduce potential workplace injury and protect workers from irreparable harm. Complete with both eyewash valves and a shower head, this safety station can handle full body rinses as well as eye flushes.
The scald protection valve circulates water through he unit when temperatures rise above 95 degrees Fahrenheit, preventing the potential for scalding. When the temperature drops down below 95, the valve automatically closes back up. On the other end of the spectrum, when water temperature drops below 40 degrees Fahrenheit, the freeze protection valve opens up automatically to circulate water until the temperature rises back up over 40 degrees. An ANSI-compliant identification sign mounts directly to the upright of the station for clear direction on operation.
This unit is encased in a bright orange UV-resistant ABS plastic jacket that is durable and also easy to identify in an emergency. Type 304 stainless steel schedule 40 pipes and fittings offer long lasting service life. The stainless steel shower head is 10" in diameter and has a 20 GPM flow control. The shower is activated with a pull down rod that controls a stay-open ball valve that will keep the shower head on as long as it is in the downward position. A paddle right next to the eyewash valve turns on the eye flush for as long as it is pressed. Each freeze-resistant spray head has a float-off dust cover and an internal flow control. This unit has a top mounted 1 1/4" NPT female supply inlet and requires a 120V electrical connection for operation.
Shower Head Diameter: 10"
Floor Flange Diameter: 9"
Pull Rod Length: 29"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Made in America
This item was made in the United States of America.
