Product Overview

  • 4-ton capacity and 21 1/8" cabinet width
  • Multi-position design and direct drive nine-speed ECM blower motor
  • Includes internal factory-installed thermal expansion valves (TXV)
  • Aluminum evaporator coil with coated fin stock for high performance
  • Eco-friendly R-32 refrigerant; 48,000 BTU, 208 / 230V, 1 phase
UPC Code:400017532530

Goodman AMST48CU1300 Specs

Quantity
1/Each
Shipping Weight
161 lb.
Width
21 1/8 Inches
Depth
21 Inches
Height
58 Inches
Amps
5.7 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
208/230 Volts
Capacity
4 Tons
Color
Gray
Features
Made in America
Horsepower
3/4 hp
Mounting Style
Freestanding
Plug Type
Hardwire
Power Type
Electric
Refrigerant Type
R-32
Speeds
9 Speed
Total BTU
48,000 BTU
Type
Air Handlers

Goodman AMST48CU1300 Details

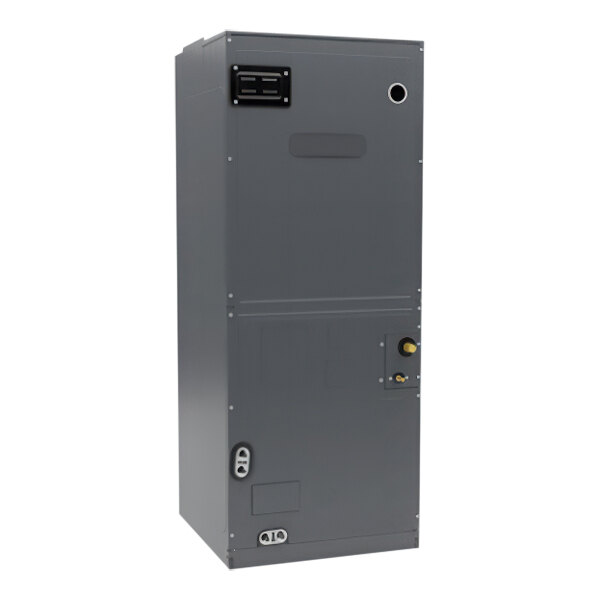

Improve your commercial HVAC system with the Goodman multi-position nine-speed ECM air handler (cooling only)! This air handler boasts a 4-ton capacity, 21 1/8" cabinet width, and a 21" cabinet depth for easy attic access, making it ideal for a variety of commercial applications. Equipped with a 3/4 hp direct drive nine-speed ECM blower motor, this unit ensures efficient and reliable performance. The internal factory-installed thermal expansion valves (TXV) further enhance the unit's cooling capabilities, providing consistent and precise temperature regulation.

Featuring an aluminum evaporator coil with coated fin stock, this air handler delivers high performance and durability. Plus, foiled-faced insulation covers the internal casing, reducing cabinet condensation. With glueless cabinet insulation retention and toolless filter access, this unit is easy to maintain and service! It also includes a decaBDE-free thermoplastic drain pain with secondary drain connections for added convenience.

The use of eco-friendly R-32 refrigerant underscores Goodman's commitment to sustainable practices. With a 48,000 BTU output and coil mounting track for easy repositioning, this air handler offers versatility and reliability. Its rigid SmartFrame cabinet, multi-position horizontal or vertical configuration capabilities, and galvanized leather grain-embossed finish ensures long-lasting durability and a professional appearance. Upgrade your HVAC system with this Goodman air handler for enhanced cooling performance in various commercial settings. This unit requires a 208 / 230V electrical connection for operation.

Overall Dimensions:
Width: 21 1/8"
Depth: 21"
Height: 58"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • ARI / AHRI

    ARI / AHRI

    This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Ask about this product

Frequently Asked Questions From Customers

What is the SEER rating on my item?
A SEER rating is a system of measuring your unit's cooling efficiency throughout the year. It stands for Seasonal Energy Efficiency Ratio and can be found by dividing the cooling output in summer months by the energy used in summer months. This lets you know how productive your air conditioner / heat pump system is. The higher the SEER rating, the lower your monthly energy costs. Consult a technician to determine what SEER rating is optimal for your business type, climate, and region.
