  • Attractive curved glass front with acrylic end panels and removable sliding rear doors
  • Designed for applications where you need to line up multiple cases together
  • Includes 2 black wire shelves that are adjustable up and down; tilt in two positions
  • Shielded top and shelf lights to show off food displays
  • Removable, scratch-resistant, rustproof black bottom deck
  • Refrigeration system uses R-513a refrigerant; low-velocity fan for better product freshness
  • Maintains an average product temperature of 38 to 40 degrees Fahrenheit
  • 1/3 hp, 120V
UPC Code:400012307744
Shipping:Usually Ships in 4 Months
Federal Industries CRB3628 Specs
Quantity1/Each
Width36 Inches
Depth29 5/8 Inches
Height25 1/8 Inches
Compressor Housing Width11 3/8 Inches
Cutout Width32 7/8 Inches
Compressor Housing Depth26 Inches
Cutout Depth29 7/8 Inches
Compressor Housing Height14 3/4 Inches
Amps8.1 Amps
Hertz60 Hertz
Phase1 Phase
Voltage120 Volts
Wattage972 Watts
Capacity9.25 cu. ft.
Color Black
Compressor Location Bottom Mounted
Display Case Type Refrigerated
Features Lighted Interior
Glass Style Curved
Horsepower1/3 HP
Installation Type Drop In
Made in America Yes
Number of Shelves2 Shelves
Plug Type NEMA 5-15P
Refrigerant Type R-513a
Service Type Full Service
Temperature Range38 - 40 Degrees F
Type Countertop Bakery Cases

Customer questions about this product

Can I order this unit with modifications?
Yes, you can order this unit with any standard modification(s) offered by the manufacturer. For details and pricing please contact [email protected].
Ask your own question!

Federal Industries CRB3628 Details

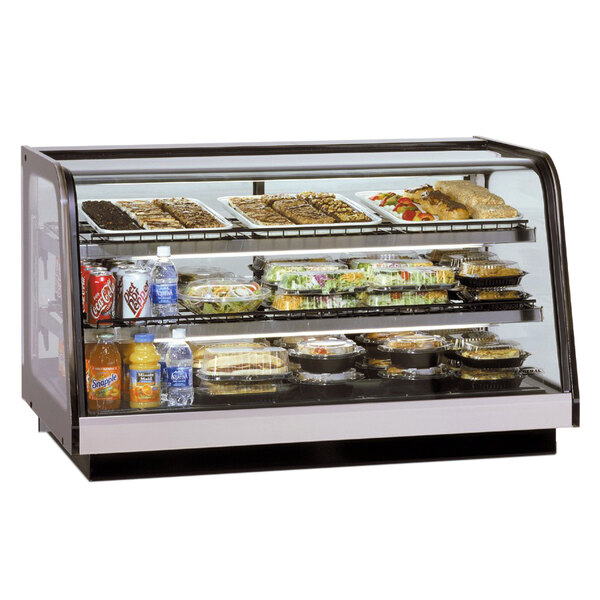

Show off your irresistible cakes, cupcakes, pies, and other refrigerated products with this Federal Industries CRB3628 Signature series 36" black refrigerated drop in countertop display case! Featuring sleek, curved lines, this elegant case has a professional styling that complements your counter displays while keeping contents safe to eat.

With the two black wire shelves that come included, this display case can be configured to meet the specific needs of the products you wish to display. Since the shelves can be removed for cleaning or adjusted up and down, you can display layer cakes, wrapped sandwiches, prepackaged salads, or other foods on shelves with the right amount of clearance. The safety-shielded top and shelf lights help to illuminate your foods for a better display, plus the glass front, acrylic sides, and rear doors provide an unobstructed view of your goodies for greater merchandising potential.

The double rear doors slide open on this unit, allowing your employees to easily access the case to restock trays or serve customers. The doors are removable so that the case can be cleaned out more easily. Plus, the scratch-resistant black deck in the bottom of the cabinet is also removable for thorough cleaning.

This cabinet installs directly into the countertop in your bakery or cafe, hiding the refrigeration unit from view. Above the counter, this model extends 25 1/8" high putting your baked goods just below eye level so they are easier to see for most customers. It is designed to line up perfectly with other units from the same series so that you can have one continuous row of cases on your countertop.

To keep the interior of the cabinet at a consistent 38 to 40 degrees Fahrenheit, this model comes with a self-contained refrigeration system. It uses R-513a refrigerant, oversized coils, and a low velocity fan system that maintains a higher humidity level and helps to preserve product freshness. A 120V electrical connection is required for operation.

Display Case Dimensions:
Width: 36"
Depth: 29 5/8"
Height: 25 1/8"
Capacity: 9.25 cu. ft.

Compressor Housing Dimensions:
Width: 11 3/8"
Depth: 26"
Height: 14 3/4"

Cutout Dimensions:
Width: 32 7/8"
Depth: 29 7/8"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Classified EPH

    UL Classified EPH

    This product complies with UL EPH standards and meets ANSI/NSF requirements.

  • UL Listed

    UL Listed

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

Resources and Downloads for
Federal Industries CRB3628

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Federal Industries assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
