Product Overview

  • Polished, chrome-plated brass body
  • 12" swing nozzle provides optimal clearance
  • Powerful, 1.5 GPM vandal-resistant aerator
  • Flexible 18" stainless steel supply hoses
  • 1.15 GPM spray valve with heat-resistant handle and hold-down ring
UPC Code:671262909631

T&S Brass and Bronze Works 5PR-2S12V15 Specs

Quantity
1/Each
Shipping Weight
14 lb.
Hose Length
44 Inches
Faucet Width
5 5/8 Inches
Faucet Height
13 5/16 Inches
Add-On Faucet
12 Inches
Add-On Type
Swing
Cartridge Type
Ceramic
Faucet Centers
Single
Finish
Chrome
Handle Type
Lever
Mounting Style
Deck Mounted
Pre Rinse Unit Type
Hose and Spring
Spray Valve Flow Rate
1.15 GPM

T&S Brass and Bronze Works 5PR-2S12V15 Details

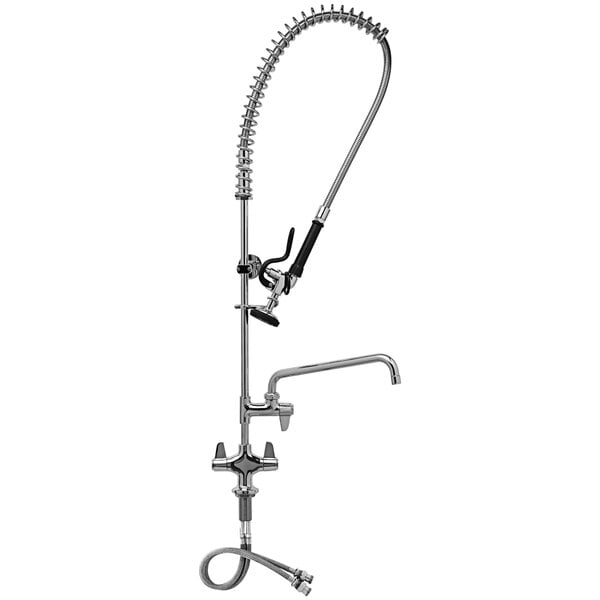

Upgrade your dishwashing equipment with this Equip by T&S 5PR-2S12V15 pre-rinse unit with 1.15 GPM spray valve and add-on faucet with 12" swing nozzle. The add-on faucet features a single hole and 1/2" BSPP male threads for installation, with a deck flange that rests on the mounting surface. Dual lever handles and a 12" swing nozzle provide easy operation and plenty of clearance over your sink to simplify dishwashing procedures, and the 1.5 GPM aerator provides a gentle yet effective stream of water. Additionally, quarter-turn ceramic cartridges are installed with the handles to ensure that your faucet runs properly and continuously.

Mounted on top of a sturdy 18" riser is the 44" flexible stainless steel hose, complete with a spring and a 1.15 GPM spray valve. This unit is perfect for removing stubborn food particles from dishes to reduce the effort needed to produce sparkling clean dishes. The 6" wall bracket secures the riser in place to ensure peace of mind throughout use, and the vandal-resistant hardware on the faucet's aerator minimizes tampering for additional security.

Overall Dimensions:
Faucet Width: 5 5/8"
Faucet Height: 13 5/16"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
