$254.99/Each

Ships free with Plus
Due to a manufacturer's price increase, this price will increase by 5.00% on 01/01/25

Earn up to $7.65 back (765 points)with a Webstaurant Rewards Visa® Credit Card

Wish List
Rapid Reorder

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Single hole base with 2 1/4" flange; 1/2" NPSM male inlet
  • 44" flex hose; 1.15 GPM 5SV Equip spray valve
  • Lever handle with color coded screw
  • Equip ceramic cartridges; can withstand water temperatures up to 140 degrees Fahrenheit
  • Includes 6" wall bracket; 34 13/16" overall height
UPC Code:671262593878
View all T&S Brass and Bronze Works Pre-Rinse Faucets

Works With

T&S Brass and Bronze Works 5PR-1S00 Specs

Quantity
1/Each
Shipping Weight
9 lb.
Hose Length
44 Inches
Faucet Width
2 3/8 Inches
Faucet Height
34 13/16 Inches
Add-On Faucet
None
Cartridge Type
Ceramic
Faucet Centers
Single
Finish
Chrome
Handle Type
Lever
Material
Brass
Mounting Style
Deck Mounted
Pre Rinse Unit Type
Hose and Spring
Pressure Rating
125 PSI
Spray Valve Flow Rate
1.15 GPM
Temperature Rating
40 - 140 Degrees F
Type
Pre-Rinse Units
Water Inlet Size
1/2 Inches

T&S Brass and Bronze Works 5PR-1S00 Details

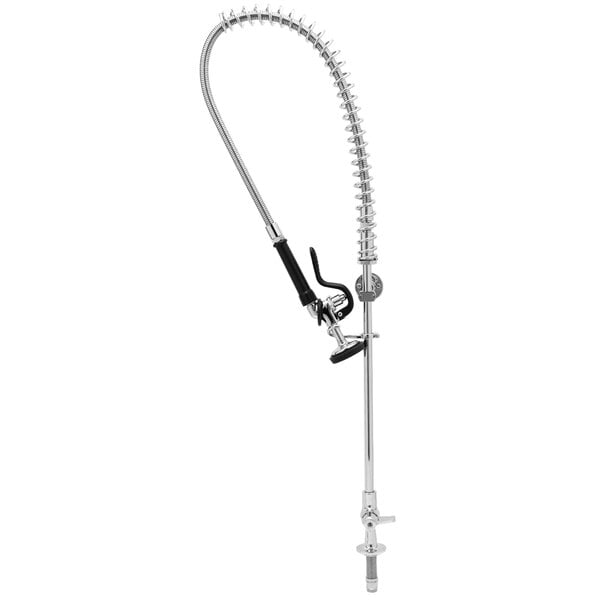

This Equip by T&S 5PR-1S00 deck mounted pre-rinse faucet features a 44" flex hose and spring design that provides plenty of versatility in a variety of warewashing applications! A 1.15 GPM spray valve makes it easy to clear food debris off of dishes before washing them, and an ergonomic squeeze handle allows easy and intuitive use. To make installation easy, it also boasts a single 1/2" NPSM male inlet that connects to your facility's plumbing lines.

The 44" flex hose with spring is great for many pre-rinse applications, and the lever handle has a color coded screw for durability and easy operation. The ceramic cartridge provides excellent durability and leak-resistance since there is no seat washer. This unit also includes a wall bracket for added support.

Overall Dimensions:
Faucet Height: 34 13/16"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

I have a chemical injection system on my compartment sink. Can I use my pre-rinse faucet to supply water to it?

Yes! Item B-TEE-RGD is a rigid tee assembly that installs easily into an existing T&S pre-rinse faucet (or you can use it on a brand new faucet) and provides you with a means to deliver water to a chemical injection system, or other, similar sink accessories that may require a water supply.
Ask your own question!
  • NSF/ANSI/CAN 61 (Certified by CSA)

    NSF/ANSI/CAN 61 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.

Resources and Downloads for
T&S Brass and Bronze Works 5PR-1S00

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Resources

  • How to Choose the Right Faucet

    • Customer Reviews

    5.0

    Rated 5 out of 5 stars

    1 Customer Reviews

    1 reviews rated this 5 out of 5 stars.

    0 reviews rated this 4 out of 5 stars.

    0 reviews rated this 3 out of 5 stars.

    0 reviews rated this 2 out of 5 stars.

    0 reviews rated this 1 out of 5 stars.

    Frequently Mentioned

    • teflon
    • stop
    • tape
    • attaches
    • attempt
    • base
    • bought
    • charm
    • concession
    • duty
    Rated 5 out of 5 stars
    Rated 5 out of 5 stars
    Review by

    Laurie M.

    Posted on 01/22/2024

    Verified Purchase

    bought two of these for new concession trailer. Only complaint I have is that it is very difficult to get the riser to not leak at the base where it attaches. Both of them leaked and I had to take them apart several times and finally put on heavy duty teflon tape to get the leak to stop. I had used regular teflon tape as well as teflon impregnated pipe sealant on my seond attempt to stop the leak. 3rd time seemed to be a charm.

    Thank you for your review, Laurie! We are sorry you've had issues with this product. This product is still within the warranty period, so a Customer Solutions Representative will contact you to help file a claim.

    WebstaurantStore Customer Solutions
