Ships free with Plus
  • 1/2" NPT male inlet; 1 1/4" drain
  • Lexan blue handle and outlet
  • 18 gauge stainless steel drip pan
UPC Code: 671262750738

Provide drinking water quickly and easily with the 5GF-8P-WS glass filler faucet from Equip by T&S.

Having a strategically-placed water fill station is a great way to increase efficiency in your business, and thanks to its Lexan blue outlet and lever, this water station immediately lets employees know that this is where they should go to fill customers' water glasses. And since it is easy to install, you'll be ready to start serving with it in no time.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • CSA


    This item meets the standards imposed by the Canadian Standards Association (CSA).

9 3/8" Tall Filler

The glass filler is 9 3/8" tall with an impressive 8" of clearance to accommodate everything from petite water glasses to frosty pitchers.

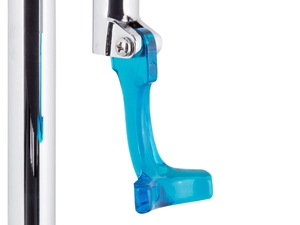

Self-Closing Lever

The lever closes on its own to prevent the water from being left on accidentally, and the flow can be easily adjusted with a screwdriver for maximum water conservation.

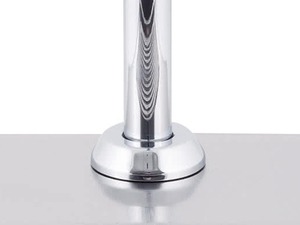

1/2" NPT Inlet

The glass filler connects to your water supply easily by using a 1/2" NPT inlet. A flange helps it blend seamlessly into the deck of your water station for a uniform look.

Complete Water Station

This water station comes complete with a 9 7/8" x 4 5/16" drip pan with a 1 1/4" drain. A cut-out size of 10 1/2" x 5" is suggested for installation; mounting screws are included. For added convenience, a 12 5/8" x 10 5/8" stainless steel deck helps to keep surrounding areas dry.

Customer Q&A Ask a Question

Does this item have any additional agency approvals and certifications?
There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

Compare to Other Products

Overall Dimensions:
  • Height: 9 3/8 Inches
  • Nozzle Clearance: 8 Inches
Drip Pan Dimensions:
  • Width: 9 7/8 Inches
  • Depth: 4 5/16 Inches
  • Height: 1 1/2 Inches
Cutout Dimensions:
  • Width: 10 1/2 Inches
  • Depth: 5 Inches

Attention CA Residents: Prop 65 Warning

Resources and Downloads for
Equip by T&S 5GF-8P-WS

Spec Sheet Specsheet Warranty Warranty

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Customer Reviews

  • Overall User Rating: Equip by T&S 5GF-8P-WS Water Station with Drip Pan and Push Back Glass Filler - 9 3/8" High Pedestal

    4.6 stars from 5 reviews


    People Talk About:

    water easy install perfect customers great needed pressure recommend serve
    easy to use water station. We installed this without installing a filter line first (which we kind of regret) but we can always add it on later. Gets the job done
    works very well great water pressure with adjust-ability fits many sized cups and not easily triggered works as advertised. great buy would strongly recommend to any restaurant
    we've needed a water station to serve fresh water for customer ! this is perfect for coffee shop. so easy to use and it was easy to install with water filter!
    I needed a water dispenser for my tea shop something that was easy to use. This was perfect, not too big and it was simple to install.
    This glass filler station is a perfect solution to providing customers with self-serve water. The pressure of the stream is adjustable and the unit is very solid. The product did not come with very clear assembly instructions, so I would recommend having a plumber install it. Other than that, very good product!
