Product Overview

  • Made of type 304 stainless steel
  • Leg channels, legs, and crossbracing are 16 gauge
  • Backsplash, sides, front panel, drain panel, and perforated insert are 20 gauge
  • Designed to line up with other bar equipment that has a double speed rail profile
  • Removable drain insert and shelf made of perforated stainless steel
  • 1 1/2" IPS threaded drain with a nut and washer
  • Adjustable stainless steel bullet feet for stability
UPC Code:400012268274

Eagle Group RDBDR18-19 Specs

Shipping Weight
42 lb.
18 Inches
29 Inches
36 5/8 Inches
Backsplash Height
7 9/16 Inches
Work Surface Height
18 5/8 Inches
With Backsplash
Base Style
Drain Size
1 1/2 Inches
Made in America  NSF Listed
Leg Construction
Stainless Steel
Stainless Steel
Product Line

Customer questions about this product

Can I cancel my order for this Eagle Group item if I change my mind?

We cannot guarantee that this item can be cancelled off of the order or returned once it is placed. Cancelled orders may be subject to a restocking fee of 30% for standard items and 50% for made to order items.

Ask your own question!

Eagle Group RDBDR18-19 Details

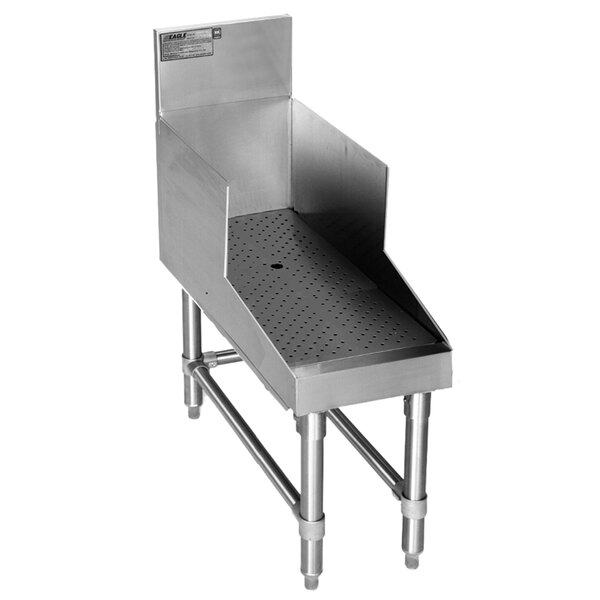

Expedite the glassware cleaning and drying process at your bar with this Eagle Group RDBDR18-19 Spec-Bar series stainless steel recessed bar drainboard. Items found within the Spec-Bar series of underbar equipment line up perfectly with each other, creating a uniform look across any bar. This particular drainboard is made to match up to other pieces of equipment that have a double speed rail on the front. This unit can hold multiple tiers of glassware thanks to 11 9/16" tall sides and a recessed, perforated, and removable drainboard top with a 1 1/2" IPS drain. Additionally, a 7 9/16" backsplash helps protect nearby walls and floors from liquid spills.

This recessed bar drainboard has sturdy 1 5/8" diameter legs with crossbracing and adjustable bullet feet. These features let you level the unit on uneven floors and also ensure stability during use. A durable and efficient design makes this drainboard the perfect addition to your restaurant or bar.

Designed for long-lasting use, this unit features all type 304 stainless steel construction including:
- 16 gauge leg channels, legs, and crossbracing
- 20 gauge backsplash, sides, front panel, drain panel, and perforated insert

Overall Dimensions:
Length: 18"
Width: 29"
Height: 36 5/8"
Work Surface Height: 29 1/16"
Backsplash Height: 7 9/16"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
