Installation Services
Product Overview
- Includes a 24" double jointed wall mount swing faucet
- 20 gauge stainless steel body
- 16 gauge stainless steel leg channels, legs, and cross bracing
- Body, legs, and crossbracing made of type 304 stainless steel for excellent corrosion resistance
- 10" x 14" x 9 1/2" drawn sink bowls
- 8" high backsplash helps protect walls
- 1 5/8" diameter legs with adjustable stainless steel bullet feet
- 36" left drainboard with drain and removable perforated insert; 1 1/2" IPS bowl drains
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 95 lb.
- Length
- 72 Inches
- Width
- 24 Inches
- Height
- 37 Inches
- Drainboard Length
- 36 Inches
- Bowl Depth
- 9 1/2 Inches
- Backsplash Height
- 8 Inches
- Work Surface Height
- 29 Inches
- Backsplash
- With Backsplash
- Bowl Front to Back
- 14 Inches
- Bowl Left to Right
- 10 Inches
- Faucet Centers
- 4 Inches
- Features
- Made in America NSF Listed
- Gauge
- 20 Gauge
- Included
- Faucet
- Leg Construction
- Stainless Steel
- Material
- Stainless Steel
- Number of Compartments
- 3 Compartments
- Number of Drainboards
- 1 Drainboard
- Product Line
- Spec-Bar
- Stainless Steel Type
- Type 304
- Type
- Bar Sinks
Eagle Group B6-3-L-24 Details

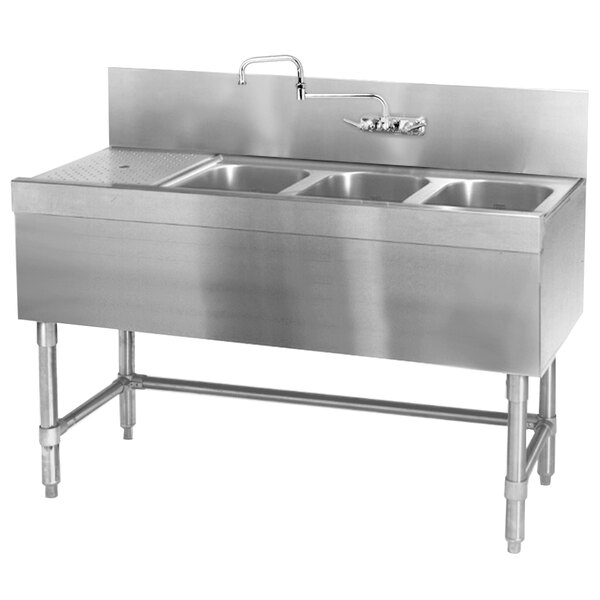

This Eagle Group B6-3-L-24 underbar sink is a rugged and reliable asset that is guaranteed to perform well in even the busiest bars! It boasts three 10" x 14" x 9 1/2" bowls that give you plenty of room to perform virtually any task, from washing glassware and rinsing dishes to pouring out excess drinks. This spacious unit's underbar design fits comfortably under your bar, allowing it to be a viable option for restaurants, clubs, and other operations dealing with space restrictions. It comes with a 24" double jointed wall mount swing faucet so you don't have to spend the time and money looking for a faucet that will meet your needs, and it attaches directly to an 8" high backsplash to contain drips and splashes. The 36" left drainboard has an independent drain and a removable perforated insert, giving you room to place soiled glassware before or after washing with minimal maintenance. An extended rear deck also provides additional storage for scrub pads and other go-to accessories. For maximum convenience, this sink is part of the renowned Spec-Bar series that offers a complete line of stainless steel underbar equipment that allows you to customize your specifications with its simple modular design for the easiest installation possible!
The hallmark of the Spec-Bar series is its rugged construction that provides you with long-lasting performance so you can get the most out of your investment, even in the most hectic environments. The body is made of 20 gauge stainless steel while the leg channels, legs, and crossbracing are made of heavy-duty 16 gauge stainless steel for solid, unwavering support. For exceptional corrosion protection against spills and other moisture behind the bar, this sink's body, legs, and crossbracing are all constructed of type 304 stainless steel. The legs are 1 5/8" in diameter and rest on stainless steel bullet feet that can be adjusted to ensure an even installation.
Overall Dimensions:
Length: 72"
Width: 24"
Height: 37"
Work Surface Height: 29"
Backsplash Height: 8"
Compartment Dimensions:
Length: 10"
Width: 14"
Depth: 9 1/2"
