$370.65/Each

Ships free with Plus

Earn up to $11.12 back (1,112 points)with a Webstaurant Rewards Visa® Credit Card

Color: Black

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Reduces heat / AC loss through the door by up to 90%
  • Prevents exterior temperatures, dust, insects, smoke, odors, and exhaust from en
  • For use on retail doorways up to 7' high
  • Air velocity (fpm): 3150 (high) / 2500 (low)
  • 120V, comes with a cord and plug
UPC Code:400013693150

Curtron MCS-48-BK COMPLETE Specs

Quantity
1/Each
Shipping Weight
45.7 lb.
Width
48 Inches
Depth
8 3/4 Inches
Height
9 3/8 Inches
Amps
1 Amp
Hertz
60 Hz
Phase
1 Phase
Voltage
120 Volts
Wattage
120 Watts
Color
Black
Horsepower
1/5 HP
Installation Type
Surface Mounted
Noise Level
49 - 52 dB
Plug Type
NEMA 5-15P
Speeds
2 Speed
Style
Back Door  Front Door
Type
Air Curtains
Usage
Indoor

Curtron MCS-48-BK COMPLETE Details

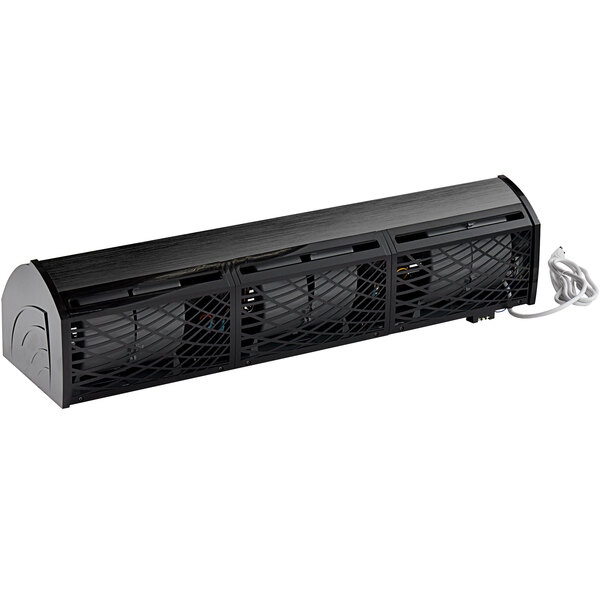

An open doorway is an open invitation for insects, smoke, fumes, and uncomfortable temperatures to enter your building - keep them outside with this Curtron MCS-48-BK Microshield black air barrier! This unit creates a smooth, gapless air pattern across the width of your door, which prevents outside environmental factors from penetrating into your facility while reducing heat and AC loss through the doorway by up to 90%. This near-perfect seal makes it much more effective and energy-efficient than heated air curtains, which create a less effective seal and use heat (and more power) to compensate for this.

It achieves this superior seal with a full-length articulating discharge nozzle design, 4 forward-curved blower fans, and 2 dual-speed 1/5 hp direct-drive motors that together generate an air velocity of 3150 fpm on high and 2500 fpm on low. Plus, this unit comes with a magnetic door switch to prevent the fan from running continuously. One half of the switch is placed on your door, while the other half is wired to your air curtain, allowing the fan to automatically turn on and off as needed.

This 48" air barrier is designed to be wall-mounted over most retail doorways up to 7' high and it features a black finish with decorative intake grills and side panels that blend effortlessly into a wide range of interiors. A manual or wireless remote control lets you turn the unit on or off from whichever location is most convenient for you, and since the housing is made from durable steel, you can be sure that it will look great and stand up to hard use in even the most demanding applications.

It requires a 120V electrical connection and comes with a cord and plug for simple installation. Performance is dependent on a balanced building air pressure.

Overall Dimensions:
Width: 48"
Depth: 8 3/4"
Height: 9 3/8"

Attention CA Residents:

Customer questions about this product

Can this unit be mounted outdoors?

No. This unit should be installed indoors. Never install in adverse environments, such as, near splashing water, excess steam, explosive or corrosive gases.

Mounting of this unit outdoors will void warranty.
Ask your own question!
  • CSA, Canada

    CSA, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.
