$8,149.50/Each

Ships free with Plus

for details

Earn up to $244.48 back (24,448 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Accommodates three full sized food pans
  • Uses LiquiTec cooling technology
  • Durable stainless steel top
  • Press fit top gasket provides a tight seal
  • Environmentally-friendly polyurethane foam insulation and R290 refrigerant; 115V
UPC Code:400013447654

Delfield 8169-EFNP Specs

Quantity
1/Each
Shipping Weight
365 lb.
Width
69 1/4 Inches
Depth
18 Inches
Height
23 1/4 Inches
Cutout Width
68 1/2 Inches
Cutout Depth
17 1/4 Inches
Amps
3.7 Amps
Hertz
60 Hertz
Phase
1 Phase
Voltage
115 Volts
Wattage
425 Watts
Compressor Location
Bottom Mounted
Features
Made in America  NSF Listed
Horsepower
1/4 HP
Installation Type
Drop In
Material
Stainless Steel
Number of Pans
3 Pans
Pan Mounting
Flush
Plug Type
NEMA 5-15P
Power Type
Electric
Refrigeration Type
Glycol
Style
Narrow/Slim
Temperature Range
33 - 41 Degrees F
Temperature Settings
Adjustable
Type
Refrigerated Food Wells

Customer questions about this product

Does free shipping apply to this Delfield item if I am shipping it to a residential address?

No. The manufacturer charges a $96 fee for truck deliveries to a residential address. Please contact our Customer Solutions team prior to placing your order if you have any questions.

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

Ask your own question!

Delfield 8169-EFNP Details

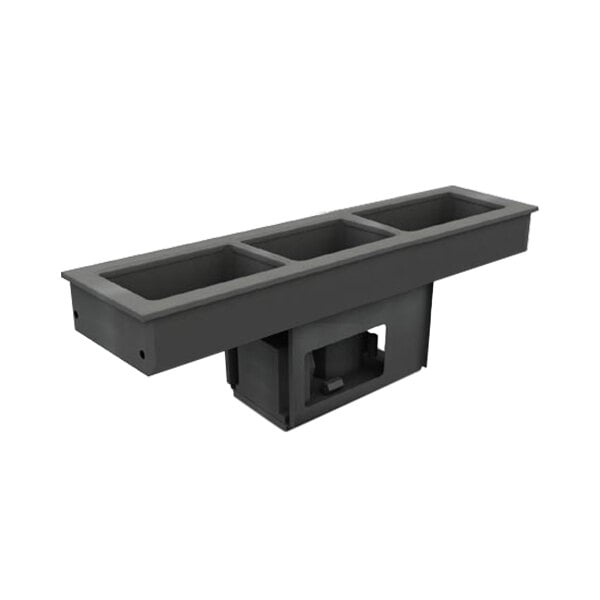

The Delfield 8169-EFNP narrow three pan drop in LiquiTec refrigerated food well is a dependable way to present salad, fruit, gelatin desserts, and other cold foods at your buffet line! This cold food well incorporates LiquiTec cooling technology, a unique system which works by using eutectic fluid sealed in a jacket within the pan dividers, cooling each pan with more contact points and a much larger surface area than traditional refrigerant line models. The end result is consistent, even cooling, fewer compressor cycles, and better energy efficiency than comparable cold food wells! Because of how this food well holds pans, it's great for narrower countertops or two-sided buffet setups where you'd want to display the pans lengthwise.

This refrigerated cold food well can hold three full size 12" x 20" food pans up to 6" deep lengthwise at food safe holding temperatures for an extended period of time. To maintain a consistent temperature, the bottom-mounted 1/4 hp compressor circulates environmentally-friendly R-290 refrigerant to cool the LiquiTec fluid, which evenly chills the contents of the well. A bottom-mounted 1/2" stainless steel drain and manifold collect condensation.

This stainless steel drop in refrigerated cold food well is insulated with high-density foam that guarantees superior temperature retention, and an included fitted flange gasket allows you to snugly install this food well into your countertop. The Delfield 8169-EFNP narrow drop in refrigerated cold food well requires a 68 1/2" x 17 1/4" cutout.

Overall Dimensions:
Width: 69 1/4"
Depth: 18"
Height (including compressor): 23 1/4"

Cutout Dimensions:
Width: 68 1/2"
Depth: 17 1/4"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Listed, Canada

    UL Listed, Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in Canada.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.

Resources and Downloads for
Delfield 8169-EFNP

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Equivalent Items

Delfield 8169-EFN (Formerly)
