Product Overview

  • G4 digital control with 4 3/8" icon-driven touchscreen; one-touch recipes
  • IntelliFresh technology provides gentle heat to maintain perfect coffee temperature
  • Industry's most effective mineral-tolerant design
  • Selectable brew volume for 0.5, 1, or 1.5 gallons; fast flow hot water faucet
  • Locking lid and brew cone for safety; 120/220V, 1650/2800W
UPC Code:400013041548

Wilbur Curtis G4GEMXSIFT63A1000 Specs

Shipping Weight
51 lb.
10 1/2 Inches
22 5/8 Inches
31 7/8 Inches
13.5 Amps
60 Hertz
1 Phase
120/220 Volts

Dual Voltage
1650/2800 Watts
Brewer Type
Bulk Dispenser
1.5 Gallons
Control Type
Hot Water Faucet

Made in America

NSF Listed

Server Included
Plug Type
Power Type
20 - 90 PSI
Coffee Brewers
Water Source
Direct Connection

Wilbur Curtis G4GEMXSIFT63A1000 Details

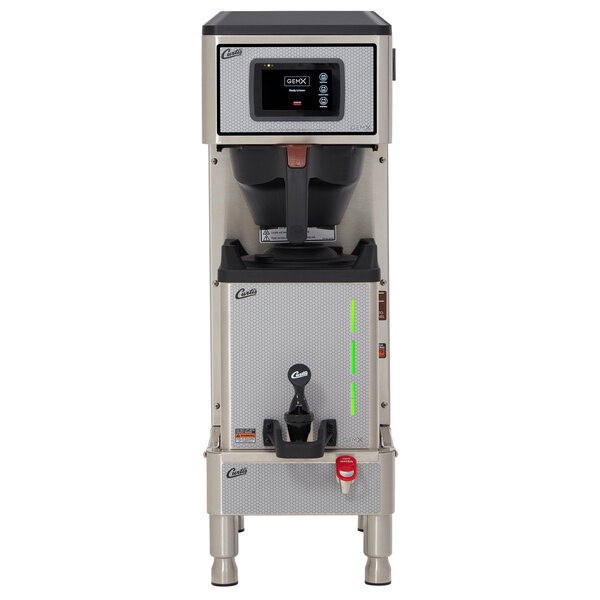

Upgrade your coffee brewing and service system with this Curtis G4GEMXSIFT63A1000 G4 Gemini IntelliFresh Single 1.5 gallon satellite coffee brewer with a FreshTrac server. This unit features G4 controls with a 4 3/8" touch screen with programmable digital controls so you can make sure you're delivering quality, flavorful coffee to your customers every time! With this icon-driven control system you can set up one-touch recipes and receive real time feedback on the brewing process. As part of the Gold Cup series, this brewer provides precise control over all the different aspects of brewing from time to volume to water bypass. Pre-set, one touch global recipes help simplify the use of this coffee brewer to improve efficiency in your banquet facility or conference center.

This brewer has the industry's most effective mineral tolerant design to help reduce the chances of damage from mineral buildup. It also has an encapsulated control board that is protected against steam, water, and impact. Plus, this brewer has the functionality to allow you to field select the brew batch volume from between 0.5, 1, or 1.5 gallons. When you are ready to brew, the locking lid and brew cone ensure safety by preventing accidental spills.

For convenient setup when your new coffee brewer arrives, this model comes with a FreshTrac 1.5 gallon satellite server. It has an intuitive LED system that communicates freshness and volume of coffee at a distance so that staff can see when it is time to brew more coffee. Plus, there are no distracting alarms to disturb your customers. The server also has a sloping bottom design to reduce waste and make the unit easy to empty and clean.

This brewer requires a 120/220V electrical connection and has an output of 1650/2800W.

Overall Dimensions:
Width: 10 1/2"
Depth: 22 5/8"
Height: 31 7/8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • UL US & Canada

    UL US & Canada

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.

  • Made in America

    Made in America

    This item was made in the United States of America.
