Product Overview

  • Multi-purpose design includes (1) 50' power cord for indoor use
  • Features lubricated precision bearings and a cartridge-style spring motor for a long life and high performance
  • Adjustable guide arm and cord-locking mechanism allow for convenient placement
  • Constructed with powder-coated steel for maximum durability
  • Fitted with a 25A / 600V slip ring for the electrical current to flow through; 115V
UPC Code:06742559210618

Coxreels PC13-5012-A Specs

Quantity
1/Each
Shipping Weight
40 lb.
Length
13 1/2 Inches
Width
8 1/2 Inches
Height
14 7/8 Inches
Base Length
6 Inches
Cord Length
50 Feet
Power Cord Length
5 Feet
Base Width
5 Inches
Amps
20 Amps
Voltage
115 Volts
Application
Electrical Cords
Features
Cord Included  Made in America
Installation Type
Freestanding
Material
Powder Coated Steel
Plug Type
NEMA 5-20P  NEMA 5-20R
Return Style
Retractable
Style
Open
Type
Cord Reels  Power Cords

Coxreels PC13-5012-A Details

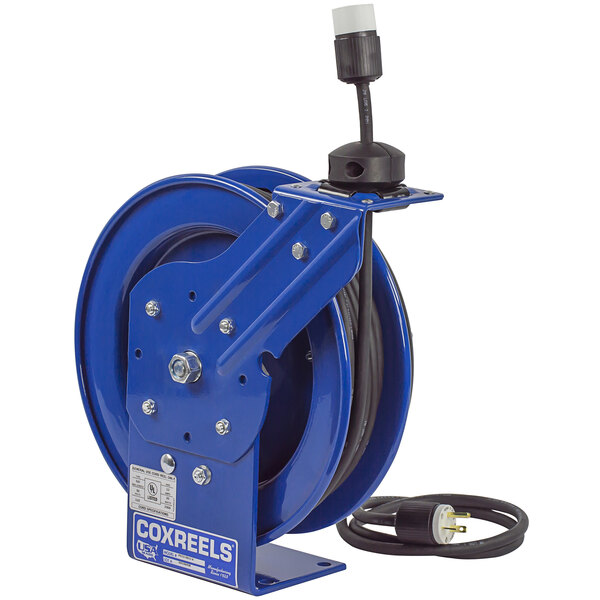

Outfit your business with this Coxreels PC13-5012-A spring rewind heavy-duty power cord reel with (1) 50' power cord! This reel is perfect for commercial or industrial businesses where an indoor 50' power cord is needed but space is limited. It's constructed with a larger frame, allowing it to hold cords with longer lengths and larger diameters. The single, 1/4" steel mounting base stands up to heavy use in a commercial environment and allows easy access to the reel for maintenance. The CPC powder coat finish is chip-resistant and provides long-term durability, while also providing easy access for slip ring routine maintenance.

This reel's adjustable guide arm allows you to position the reel wherever is most convenient, such as the wall, floor, or ceiling. This reel is designed with versatility in mind, as it contains an enclosed, factory-tuned, cartridge-style spring motor with a stainless steel spring. This makes the motor long-lasting, rust-resistant, and ensures that it is easily accessible and removable when needed. It also features a locking mechanism that allows you to secure the cord at your preferred length so you're able to service every area of your workstation without compromising on location. For ease of use, this reel is fitted with a 25A / 600V rated slip ring for the electrical current to run through.

This power cord reel comes with an adjustable solid rubber cord and (1) 5' lead cable and grounding plug for maximum efficiency. It boasts a solid steel axle and lubricated precision bearings that enable you to rotate the reel with ease. Its rolled exterior design and robotically spun and ribbed discs lend strength and security to the unit. This reel requires a 115V electrical connection for operation. Its NEMA 5-20R receptacle can accommodate both NEMA 5-15P and 5-20P plugs.

Overall Dimensions:
Length: 13 1/2"
Width: 8 1/2"
Height: 14 7/8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.

  • 5-20P

    5-20P

    This unit comes with a NEMA 5-20P plug.

  • 5-20R

    5-20R

    This unit includes a NEMA 5-20R receptacle / outlet.

Resources and Downloads for
Coxreels PC13-5012-A

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

2 year warranty except any included hoses which are under warranty for 90 days.
