$549.00/Each

Ships free with Plus

Earn up to $16.47 back (1,647 points)with a Webstaurant Rewards Visa® Credit Card

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Durable, cast brass construction and polished chrome finish
  • Pressure compensating Econo-Flo non-aerating spray outlet releases water at 0.5 GPM
  • Intuitive faucet sensor detects motion and releases warm, tempered water
  • Auto timeout feature shuts water off after 10 seconds
  • Compatible with Commander Handheld Programming Unit (sold separately)

Shipping Restrictions

This item cannot ship to AK or HI
UPC Code:611943148638

Chicago Faucet Company E80-A11A-16ABCPT Specs

Quantity
1/Each
Shipping Weight
4.54 lb.
Spout Length
6 7/8 Inches
Faucet Width
2 1/4 Inches
Faucet Height
6 1/8 Inches
Battery Type
6V
Faucet Centers
Single
Features
ADA Compliant  Automatic Shutoff  Bluetooth  Hands Free  Motion Sensor
Finish
Chrome
Flow Rate
0.5 GPM
Installation Type
Deck Mounted
Material
Brass
Mounting Holes Required
1 Mounting Hole
Mounting Style
Deck Mounted
Power Type
Battery
Pressure Rating
20 - 125 PSI
Spout Clearance
4 7/8 Inches
Spout Type
Cast
Temperature Rating
48 - 180 Degrees F
Type
Touchless Faucets
Water Inlet Size
3/8 Inches

Chicago Faucet Company E80-A11A-16ABCPT Details

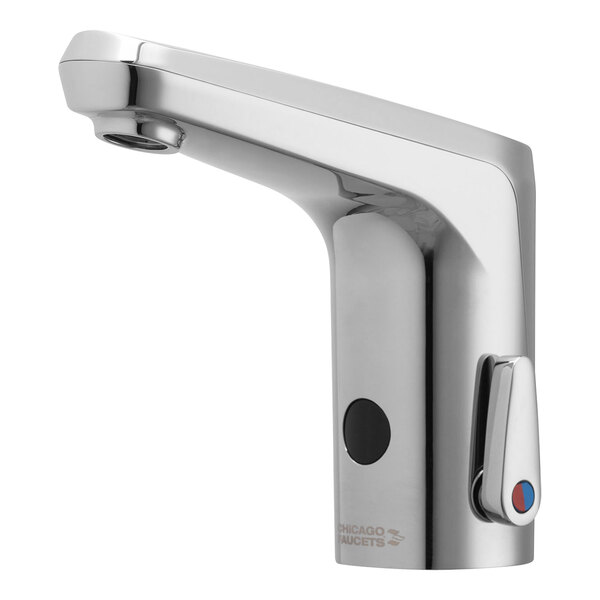

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets 0.5 GPM deck-mounted touchless faucet with auto timeout. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety. This unit is equipped with a vandal-proof pressure compensating Econo-Flo non-aerating spray that releases a clear, non-splashing flow of water at 0.5 GPM. This unit has a rated operating pressure of 20 to 125 PSI, a hot water inlet temperature range of 100 to 180 degrees Fahrenheit, and a mixed water temperature range of 48 to 155 degrees Fahrenheit for optimal performance. In addition, this faucet has a minimum static pressure for mixing of 30 PSI.

As opposed to standard faucets with pull-down handles, which require repeated personal contact for use, this product enables hygienic handwashing. When ready to wash hands, the intuitive faucet sensor detects motion and releases water. Plus, it boasts an auto timeout feature that shuts the water off after 10 seconds. To reactivate, simply remove hands from the sensor for at least 1 second. This auto timeout feature ensures that your water is never accidentally left on, saving you money. To deliver water from your main line to the faucet, this unit includes flexible water supply hoses. This dual-supply faucet includes an internal, thermostatic mixing valve that allows users to adjust water temperature. This model is compatible with the Commander Handheld Programming Unit (sold separately) to allow for modification of modes and ranges. This faucet has a 6V lithium CRP2 battery for operation.

Overall Dimensions:
Spout Length: 6 7/8"
Faucet Height: 6 1/8"
Faucet Width: 2 1/4"

Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping and cannot be returned. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • CalGreen Compliant

    CalGreen Compliant

    This product is compliant with California's CalGreen Green Building Standards Code.

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.
