$529.00/Each

Ships free with Plus

Earn up to $15.87 back (1,587 points)with a Webstaurant Rewards Visa® Credit Card

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Durable, cast brass construction and polished chrome finish
  • Eyewash outlet dispenses water at 3.3 GPM and 50 PSI
  • Pressure compensating Softflo aerator releases a soft, non-splashing flow of water at 2.2 GPM
  • Control water volume and prevent scalding with the ceramic operating cartridge
  • Vandal-proof 2 3/8” lever handle is color coded for easy identification
UPC Code:611943154738

Chicago Faucet Company 8451-ABCP Specs

Quantity
1/Each
Shipping Weight
9.52 lb.
Length
6 1/8 Inches
Height
11 1/2 Inches
Color
Green  Silver  Yellow
Flow Rate
2.2 - 3.3 GPM
Installation Type
Deck Mounted
Material
Brass
Number of Spray Heads
2 Spray Heads
Type
Eye Wash Stations  Faucets
Water Inlet Size
3/8 Inches

Chicago Faucet Company 8451-ABCP Details

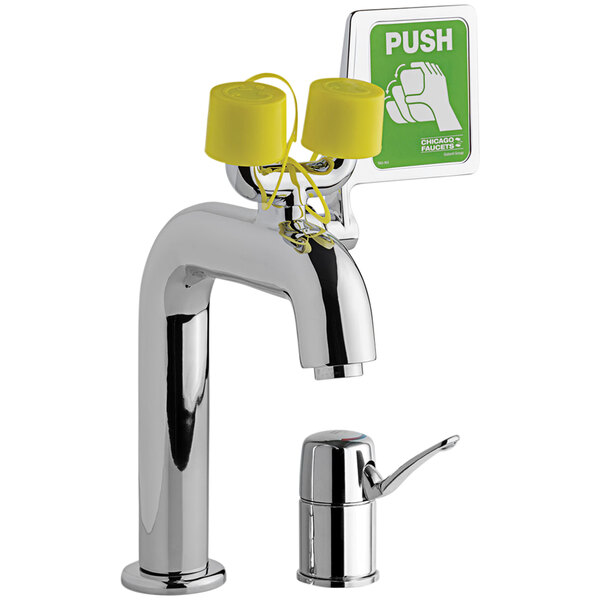

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets single-handle safety eyewash / faucet. This unit is equipped with a pressure compensating Softflo aerator that releases a soft, non-splashing flow of water at 2.2 GPM. The eyewash outlet dispenses water at 3.3 GPM and 50 PSI, making it perfect for situations that require a high volume of water. The faucet has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit, while the eyewash has a rated operating pressure of 22-116 PSI and a rated operating temperature of 50 to 90 degrees Fahrenheit.

The vandal-proof 2 3/4" lever handle makes this unit easy to operate. Control water volume and prevent scalding with the help of the ceramic operating cartridge with hot water limit stop. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety. Prevent leaks and water pollution with the help of the 3/8" compression inlet. The deck-mounted design is easy to install.

Overall Dimensions:
Length: 6 1/8"
Height: 11 1/2"

Attention CA Residents:

Customer questions about this product

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • NSF/ANSI/CAN 372 (Certified by CSA)

    NSF/ANSI/CAN 372 (Certified by CSA)

    This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.
