$89.99/Each

This product is no longer available. We've left this page up for reference only.

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Integral, one-piece spout
  • Durable, cast brass construction and polished chrome finish
  • Dual-screen outlet and adjustable volume control allows you to determine flow of water
  • Coated metal handle with locking clip makes it easy to fill your glasses
  • Single hole for wall mounting
UPC Code:611943537807
View all Chicago Faucet Company Glass Filler Faucets and Stations

Chicago Faucet Company 312-ABCP Specs

Quantity
1/Each
Shipping Weight
2.01 lb.
Length
4 3/8 Inches
Spout Length
4 3/8 Inches
Faucet Width
2 Inches
Faucet Height
4 7/8 Inches
Faucet Centers
Single
Installation Type
Wall Mounted
Material
Brass
Number of Faucets
1 Faucet
Pressure Rating
20 - 125 PSI
Style
Push Back
Temperature Rating
40 - 140 Degrees F
Type
Glass Fillers
Water Inlet Size
3/8 Inches

Chicago Faucet Company 312-ABCP Details

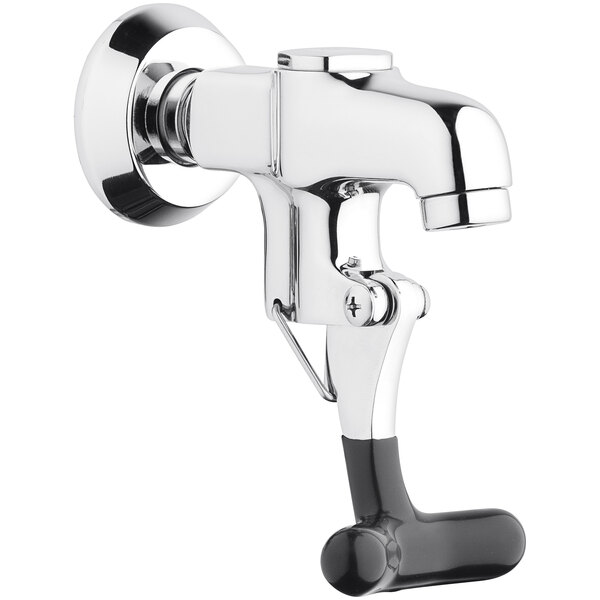

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets wall-mounted glass filler faucet with handle assembly. Designed with an integral, one-piece spout, this glass filler combines functionality with style. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety.

Determine the flow of water with the dual-screen outlet and adjustable volume control. The coated metal handle with locking clip makes it easy to fill your glasses. The single-hole, wall-mounted design, 3/8" NPT male thread inlet, and integral deck flange make this model easy to install.

Overall Dimensions:
Length: 4 3/8"
Height: 4 7/8"

Attention CA Residents:

Customer questions about this product

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.
