$939.00/Each

Ships free with Plus

Earn up to $28.17 back (2,817 points)with a Webstaurant Rewards Visa® Credit Card

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Durable, cast brass construction and polished chrome finish
  • Vandal-proof, Pressure compensating Econo-Flo laminar spray; releases water at 0.5 GPM
  • Requires a 12V AC transformer (sold separately) for operation
  • Stylish HyTronic Edge spout
  • Intuitive faucet sensor detects motion and releases hot or cold water

Shipping Restrictions

This item cannot ship to AK or HI
UPC Code:611943542535

Chicago Faucet Company 116.778.AB.1T Specs

Quantity
1/Each
Shipping Weight
5.9 lb.
Spout Length
4 3/4 Inches
Faucet Width
2 1/2 Inches
Faucet Height
5 3/4 Inches
Phase
1 Phase
Voltage
6 Volts
Faucet Centers
Single
Features
ADA Compliant  Bluetooth  Flex Inlets Included  Hands Free
Finish
Chrome
Flow Rate
0.5 GPM
Material
Brass
Mounting Holes Required
1 Mounting Hole
Mounting Style
Deck Mounted
Power Type
AC Adapter
Pressure Rating
20 - 125 PSI
Spout Clearance
4 1/2 Inches
Spout Type
Cast
Style
Hands Free
Temperature Rating
40 - 140 Degrees F
Type
Touchless Faucets
Water Inlet Size
3/8 Inches

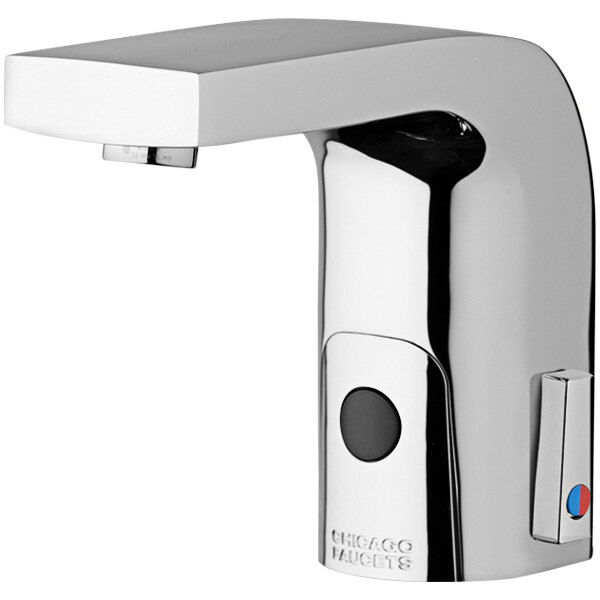

Chicago Faucet Company 116.778.AB.1T Details

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets HyTronic deck-mounted touch-free programmable faucet with edge spout and 6V lithium CRP2 battery. Designed with a HyTronic Edge spout with user temperature control, this faucet combines functionality with style. With its durable, cast brass construction and polished chrome finish, this faucet has a total lead content of less than or equal to 0.25% for your safety. This unit is equipped with a vandal-proof, pressure compensating, Econo-Flo non-aerating laminar spray that releases a clear, non-splashing flow of water at 0.5 GPM. In addition, a 1.5 GPM optional insert is included. This unit has a rated operating pressure of 20 to 125 PSI and a rated operating temperature of 40 to 140 degrees Fahrenheit for optimal performance.

As opposed to standard faucets with pull-down handles, which require repeated personal contact for use, this product enables hygienic handwashing. When ready to wash hands, the intuitive faucet sensor detects motion and releases hot or cold water. Plus, to deliver water from your main line to the faucet, this unit includes a flexible water supply hose. This faucet includes a square, user temperature control handle kit to allow you to adjust the water temperature to suit your needs. This model can be deck mounted onto a single hole sink, and to cover unused mounting holes. For easy installation, this faucet comes with a HyTronic module kit with a standard operating mode. This unit requires a 6V lithium CRP2 battery (included) for operation.

Overall Dimensions:
Spout Length: 4 3/4"
Faucet Height: 5 3/4"
Faucet Width: 2 1/2"

Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping and cannot be returned. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
Ask your own question!
  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • Hands-Free/Touchless

    Hands-Free/Touchless

    This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • CalGreen Compliant

    CalGreen Compliant

    This product is compliant with California's CalGreen Green Building Standards Code.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.
