$839.00/Each

Ships free with Plus

Earn up to $25.17 back (2,517 points)with a Webstaurant Rewards Visa® Credit Card

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Econo-Flo, non-aerating laminar spray outlet releases water at 0.5 GPM
  • Stylish HyTronic 5 1/4” rigid / swing gooseneck spout
  • Provides a sanitary, touch-free handwashing solution
  • High-quality, polished chrome finish
  • Requires a 12VAC transformer for operation (sold separately)
UPC Code:611943474218

Chicago Faucet Company 116.113.AB.1T Specs

Quantity
1/Each
Shipping Weight
4.71 lb.
Spout Length
5 3/8 Inches
Faucet Width
2 1/2 Inches
Faucet Height
11 3/8 Inches
Phase
1 Phase
Voltage
12 Volts
Faucet Centers
Single
Features
Bluetooth  Hands Free
Finish
Chrome
Flow Rate
0.5 GPM
Installation Type
Deck Mounted
Material
Brass
Mounting Holes Required
1 Mounting Hole
Mounting Style
Deck Mounted
Pressure Rating
125 PSI
Spout Clearance
7 1/4 Inches
Spout Type
Gooseneck
Style
Hands Free
Temperature Rating
140 Degrees F
Type
Touchless Faucets

Chicago Faucet Company 116.113.AB.1T Details

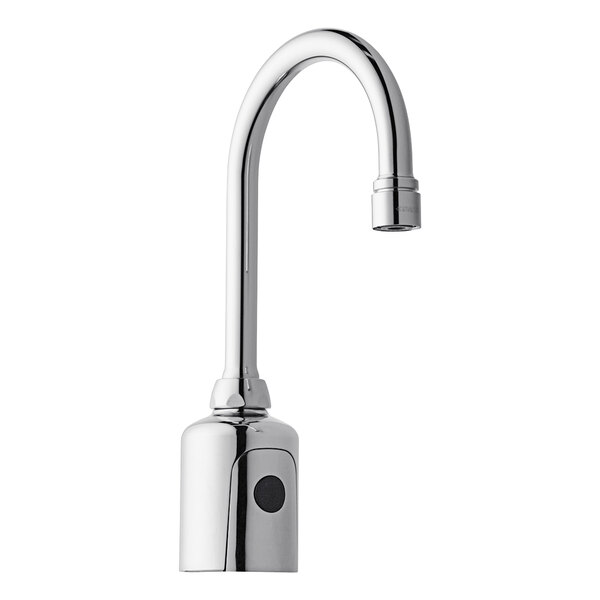

Optimize water efficiency and regulate usage by outfitting your sink with this Chicago Faucets 116.113.AB.1T HyTronic 0.5 GPM deck-mounted dual-supply single-hole touchless faucet with 5 1/4" rigid / swing gooseneck spout. Featuring a HyTronic 5 1/4" rigid / swing gooseneck spout, this item provides an easy-to-use, touch-free handwashing solution for your facility! The touchless infrared system responds quickly to environmental changes and minimizes false activations, saving you money by eliminating the risk of employees or visitors leaving the water running. This feature not only prevents water waste and reduces the chance of water damage, but also works to improve hygiene and reduce the spread of germs in your facility. When ready to wash hands, the intuitive faucet sensor detects motion and releases hot and cold water.

This unit is equipped with a pressure compensating Econo-Flo non-aerating laminar spray outlet that releases a clear, non-splashing flow of water at 0.5 GPM. For added versatility, a 1.5 GPM optional insert is included. This single-hole faucet features a concealed temperature control mixer that helps deliver water that will keep your patrons happy. Developed with the utmost convenience in mind, the deck-mounted design installs directly on your sink deck or countertop. Plus, to deliver water from your main line to the faucet, this unit includes flexible water supply hoses. Best of all, the electronic components are above-deck, making them easy to access and service. For easy installation, this faucet comes with a HyTronic module kit with a standard operating mode. This unit requires a 12VAC transformer for operation (sold separately). Able to withstand daily wear and tear, trust this eye-catching, polished chrome faucet to get the job done right!

Overall Dimensions:
Spout Length: 5 3/8"
Faucet Height: 11 3/8"
Faucet Width: 2 1/2"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I use this product to serve drinking water?

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.

Why are the dimensions in the title different from the actual dimensions in the description?

The dimensions given in the title represent an “industry standard” – a basic size that most manufacturers produce and that people in the industry use to easily identify a type of item. However, not all manufacturers produce their products the same way. For example, a title might say 12", but the item may actually be slightly larger or smaller. We include both measurements to help you find the product you’re looking for and so you also know how large the product actually is.
Ask your own question!
  • U.S. Green Building Council (USGBC)

    U.S. Green Building Council (USGBC)

    This company is a certified USGBC member. The USGBC is an organization that promotes sustainable building practices, including saving energy, using fewer resources, and reducing waste.

  • ICC-ES ASME A112.18.1/CSA B125.1

    ICC-ES ASME A112.18.1/CSA B125.1

    This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.

  • ICC-ES Low Lead NSF/ANSI 372

    ICC-ES Low Lead NSF/ANSI 372

    This item has been tested by the ICC-ES to meet NSF/ANSI 372 standards for drinking water lead content.

  • ICC-ES Drinking Water NSF/ANSI 61, Section 9

    ICC-ES Drinking Water NSF/ANSI 61, Section 9

    This item has been tested by the ICC-ES to meet NSF/ANSI 61, Section 9 standards for drinking water.

  • Buy American Act Compliant

    Buy American Act Compliant

    This product complies with the provisions of the Buy American Act.

  • CalGreen Compliant

    CalGreen Compliant

    This product is compliant with California's CalGreen Green Building Standards Code.

  • Hands-Free/Touchless

    Hands-Free/Touchless

    This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.
