$99.98/Each
Ships free with PlusProduct Overview
- Rated line pull of 2,000 lb., 5,000 lb. marine-rated, and 6,000 lb. rolling-rated
- Portable 2” slide-on hitch adapter plate mounts to a 2” ball receiver easily with no tools required
- Remote control switch allows for winch operation from a safe distance of 9' 9 5/8"
- Boasts a 1’ 8 3/8” line speed per minute with a full load and 4’ 6” per minute with no load
- Super-duty 30’ x 3/16” galvanized steel aircraft cable is unlikely to fray even on abrasive terrain
- Quantity
- 1/Each
- Shipping Weight
- 22 lb.
- Length
- 9 1/2 Inches
- Width
- 7 1/2 Inches
- Height
- 10 Inches
- Cable Length
- 30 Feet
- Cable Diameter
- 3/16 Inch
- Cable / Rope Material
- Galvanized Steel
- Capacity
- 2,000 - 6,000 lb.
- Color
- Black
- DC Voltage
- 12 Volts
- Features
- Remote Control
- Horsepower
- 3/10 HP
- Power Type
- Electric Manual
- Type
- Winch Kits
Champion Power Equipment 12090 Details

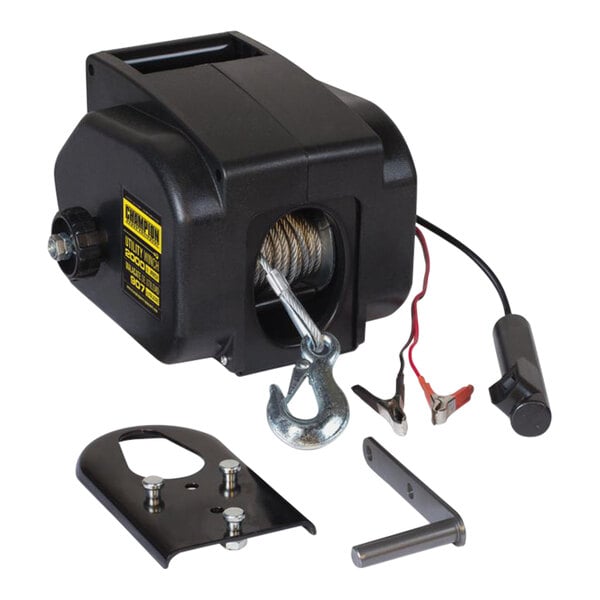

Upgrade your towing capabilities with this Champion Power Equipment marine / trailer utility winch kit! This versatile unit features a 0.3 hp 12V DC motor with a rated line pull of 2,000 lb., a marine-rated line pull of 5,000 lb., and a rolling-rated line pull of 6,000 lb., making it a reliable choice for various applications. Its portable design includes a handy carrying handle and a 2" slide-on hitch adapter plate that effortlessly mounts to any 2" ball hitch receiver without the need for tools, allowing you to mount, remove, and store the unit quickly and effortlessly. The super-duty 30' x 3/16" galvanized steel aircraft cable ensures durability and strength, even in challenging terrains like rocks, sand, or mud. With a line speed of 1' 8 3/8" per minute with a full load and 4' 6" per minute with no load, this winch provides the power and efficiency you need.
Equipped with a remote control switch that allows you to operate the unit from a safe distance of 9' 9 5/8", this winch prioritizes user safety and convenience. The included remote control allows for easy powering in, although there is no power-out function for releasing or pushing the cable. The included hand crank offers the choice of manual operation, providing flexibility in how you utilize the unit. Additionally, the efficient three-stage straight gear drive system can handle boats up to 18' long, making it a valuable tool for marine applications. With features like a dynamic braking system, free-spooling clutch, and 20' extended reach battery cable leads, it offers excellent control and functionality. Whether you need to pull your boat onto a trailer or maneuver heavy loads, this winch kit has you covered.
Kit Includes:
- Battery cable leads
- Electric winch
- Hand crank
- Mounting plate
- Remote control
Overall Dimensions:
Length: 9 1/2"
Width: 7 1/2"
Height: 10"
Capacity: 2,000-6,000 lb.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
