$2,839.00/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- Provides fresh air in your establishment
- Belt drive system powers the blower’s fan
- Offers maximum performance at low noise levels
- Comes with a heavy gauge steel fan panel with deep spun and flared venturi
- 230V; 1 phase
- Quantity
- 1/Each
- Shipping Weight
- 203 lb.
- Width
- 29 7/8 Inches
- Depth
- 43 Inches
- Height
- 29 7/8 Inches
- Phase
- 1 Phase
- Voltage
- 230 Volts
- Color
- Silver
- Horsepower
- 3/4 HP
- Material
- Steel
- Max CFM
- 5,449 CFM
- Min CFM
- 2,851 CFM
- Motor Type
- Belt Drive
- Plug Type
- Hardwire
- Power Type
- Electric
- Speeds
- Variable
- Style
- Fixed
- Type
- Wall-Mount Fans

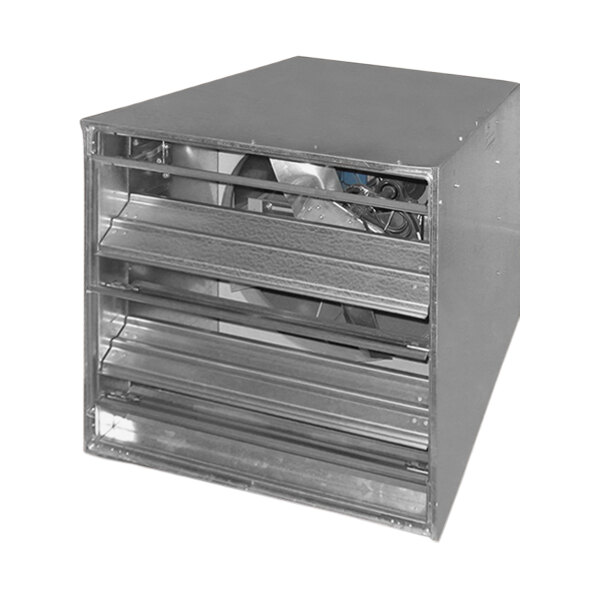

Canarm SXB24CBD10075 Details
Enhance air quality in your industrial or commercial facility with this Canarm SXB24 Series belt drive wall fan. This unit works to provide fresh air in your establishment. This fan is ideal for commercial and light-duty industrial applications. It is suitable for use in factories, warehouses, gymnasiums, and underground parking garages. It boasts a 3/4 hp motor that delivers 2,851 CFM to 5,449 CFM. Built with galvanized heavy gauge steel blades, this fan offers maximum performance at low noise levels to help maintain a quiet environment in your facility. Designed with durability in mind, this unit features a heavy gauge welded steel motor and bearing supports and heavy-duty, cast iron pillow block bearings.
SXB exhaust fans are designed for economical operations, and they are built to provide the utmost performance in low pressure applications. The TEFC motors are safeguarded from weather, dust, and other airborne contaminants, making them suitable for long-term use. Coming with a heavy gauge steel fan panel with deep spun and flared venturi, this fan offers maximum efficiency. The unit boasts a reliable belt drive system to power the blower's fan, and the Belimo 120V damper motors comes with an auxiliary switch. This unit includes a cabinet, motorized steel control damper, and a discharge guard to help ensure the correct operation of your unit.
This unit requires a 1 phase, 230V electrical connection for operation. It must be hardwired; a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.
Overall Dimensions:
Width: 29 7/8"
Depth: 43"
Height: 29 7/8"
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Resources and Downloads for
Canarm SXB24CBD10075
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
