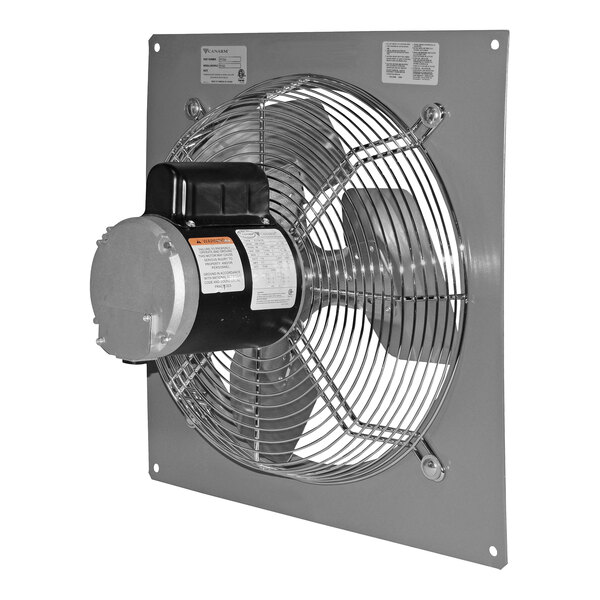

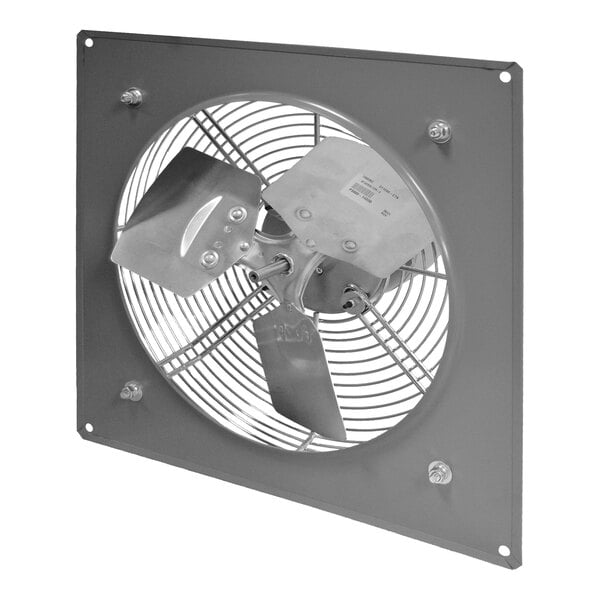

Canarm P Series 12" Variable-Speed Direct-Drive Panel-Mounted Exhaust Fan P12-1P - 1,650 CFM, 3 Phase, 1/3 hp

Canarm P12-1P Details

Enhance the air quality in your warehouse, garage, factory, or commercial building with this Canarm P series panel-mounted exhaust fan! This versatile fan exhausts air to provide ventilation in your establishment. It's made with all-aluminum extrusions and a durable powder-coated finish. This rugged exhaust fan mounts directly to an outside wall, and it features 17 1/4" x 17 1/4" frame dimensions. This sturdy horizontal discharge fan is compatible with select Canarm guards, sleeves, thermostats, weather hoods, and other accessories (sold separately) for added versatility. It operates quietly at 63 dBA, and it's ideal for the general ventilation of commercial, industrial, and farming settings.

This horizontal discharge fan features a 12" blade diameter with a variable-speed, direct-drive motor that reaches up to 1,650 CFM on the highest setting and has a 1,700 maximum RPM. The 1/3 hp motor features a totally enclosed, air-over design with overload protection for added safety. This unit also includes chrome-plated heavy-wire OSHA guards on the intake side of the fan, and it's designed for smooth, reliable, maintenance-free operation. It operates easily with a pull chain, and it's great for providing ventilation in demanding settings like factories, garages, warehouses, and other industrial or commercial buildings. This 3-phase unit ships fully assembled, and it requires a 575V electrical connection for operation.

Overall Dimensions:
Width: 17 1/4"
Depth: 11"
Height: 17 1/4"
Blade Diameter: 10"
