$639.00/Each

Ships free with Plus

Earn up to $19.17 back (1,917 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 3-5 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Ideal for commercial HVAC, ventilation, heating, cooling, and construction applications
  • Blowers perform at low speed and low noise levels
  • Features galvanized steel construction
  • Built with a saddle-type motor mounting platform
  • 208-230/460V; 3 phase
UPC Code:400016559163

Canarm IDB1030150M Specs

Quantity
1/Each
Shipping Weight
65 lb.
Width
22 1/4 Inches
Depth
24 3/4 Inches
Height
20 Inches
Wheel Diameter
10 Inches
Phase
3 Phase
Voltage
208-230/460 Volts
Color
Silver
Features
Adjustable Angle
Horsepower
1 1/2 HP
Installation Type
Saddle Mounted
Material
Steel
Max CFM
2,100 CFM
Min CFM
700 CFM
Motor Type
Belt Drive
Plug Type
Hardwire
Speeds
1 Speed
Style
Curved  Inline
Type
Duct Blowers

Canarm IDB1030150M Details

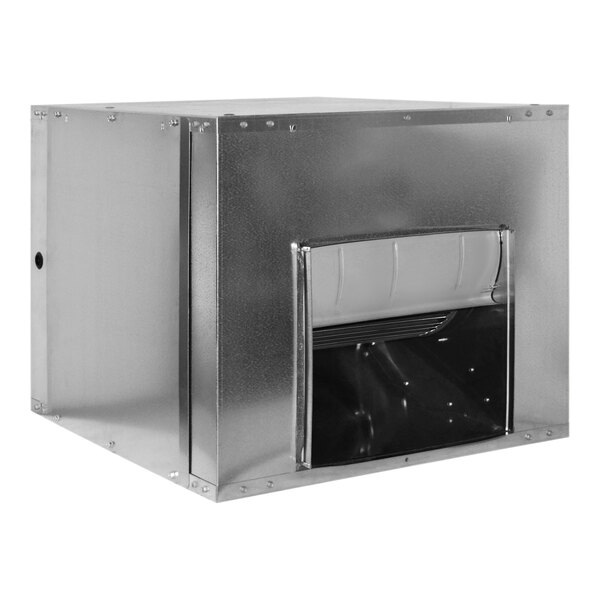

Enhance air quality in your industrial or commercial facility with this Canarm IDB10 Series forward curved inline duct blower. This duct blower works to redistribute and recirculate air in your establishment. Designed with versatility in mind, this unit is suitable for commercial HVAC, ventilation, heating, cooling, and construction applications. It can also be used in bathrooms, noise sensitive areas, and indoor workspaces. This unit is an ideal make-up air solution when rooftop curb-mounted solutions are unavailable, and it can be installed in ceiling spaces and interlocked entry doors for your convenience. It boasts a 1 1/2 hp motor that delivers 700 CFM to 2,100 CFM. This unit is equipped with forward curved blowers that perform at half the RPM of other models to help maintain a quiet environment in your facility. The Delhi blowers do not stall, surge, or hunt, helping to ensure seamless use.

This unit boasts a galvanized steel construction, making it durable enough for long-term use. Suitable for temperatures ranging from -65 to 250 degrees Fahrenheit, the unit's heavy-duty ball bearings can withstand extreme cold and heat. This unit is built with a saddle-type motor mounting platform that offers an extended belt tension adjustment range. Both ends of the unit have keywayed shafts to allow for clockwise and counterclockwise rotation. To support air delivery needs, the variable pitch motor pulley offers field adjustment of +/- 15%. This model has a 10" wheel diameter.

This unit requires a 3 phase, 208-230/460V electrical connection for operation. It must be hardwired; a cord and plug are not included. Please be sure to review any relevant fire codes for your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.

Overall Dimensions:
Width: 22 1/4"
Depth: 24 3/4"
Height: 20"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
