Name: Canarm GSQ180-D100EC Direct Drive Square Inline Blower 9260226 - 4,200 CFM, 1 Phase, 3 hp
Brand: Canarm
SKU: 6649260226
Price: 1189 USD
Availability: LimitedAvailability

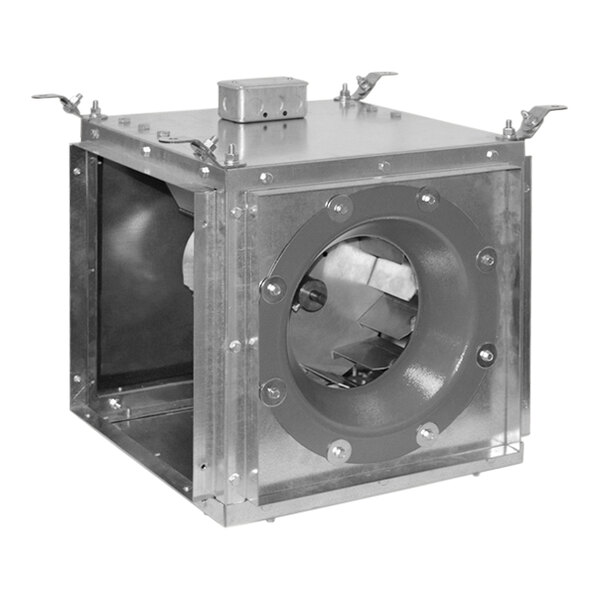

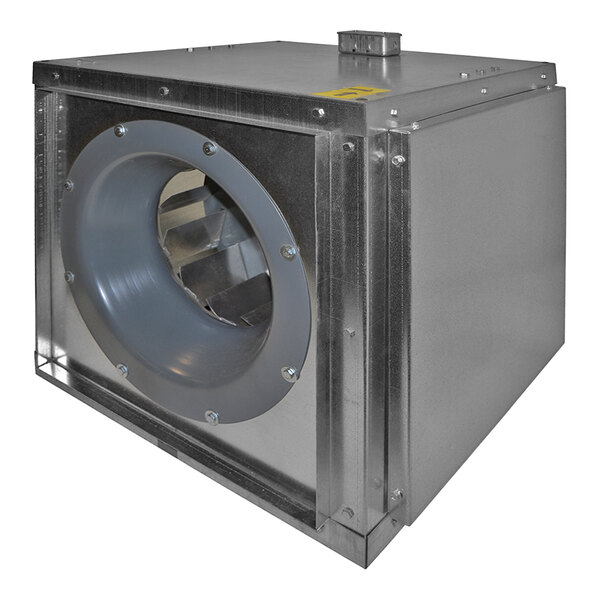

A Canarm inline blower with a metal housing.

Only

$1,189.00/Each

Ships free with Plus

Earn up to $35.67 back (3,567 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 3 to 5 Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

Provides fresh air in your establishment
Designed with a high efficiency aluminum wheel
Housed in a sturdy junction box
Offers various mounting options
115V/208-230V; 1 phase

UPC Code:400016559309

View all Canarm Exhaust Fans

plus
Canarm GSQ165-D100EC Direct Drive Square Inline Blower 9260225 - 3,750 CFM, 3 Phase, 1 1/2 hp
$1,119.00/Each

Quantity: 1/Each
Shipping Weight: 30 lb.
Length: 34 Inches
Width: 26 1/8 Inches
Height: 31 7/16 Inches
Phase: 1 Phase
Voltage: 115 - 230 Volts
Color: Silver
Features: With Junction Box
Horsepower: 3 HP
Material: Metal
Max CFM: 4,200 CFM
Min CFM: 2,550 CFM
Motor Type: Direct Drive
Plug Type: Hardwire
Power Type: Electric
RPM: 1,200 RPM
Speeds: Variable
Style: Inline
Type: Exhaust Fans
Usage: Indoor

Customer questions about this product

Can I control the speed of the fan motor?

This fan has variable speed capabilities. Models using EC motors have “true variable speed” control available using the on-board speed adjustment with LED display, or they can be controlled remotely using a wall-mounted potentiometer control (sold separately).

Ask your own question!

Canarm 9260226 Details

Enhance air quality in your industrial or commercial facility with this Canarm GSQ180-D100EC Series direct drive square inline blower. This unit works to provide fresh air in your establishment. Designed with a high efficiency aluminum wheel, this unit offers excellent filtration that will help keep your air fresh and clean. It boasts a 3 hp motor that delivers 2,550 CFM to 4,200 CFM. This unit features airtight access panels with gaskets for use indoors. Plus, the high efficiency EC variable speed motor ensures versatility to suit your facility.

This unit is housed in a sturdy junction box, making it durable enough for long-term use. For your convenience, a side discharge comes standard on this unit, and a bottom discharge is available with the flange kit (sold separately). Customers can easily add an additional air supply duct extension between the intake hood and the unit to allow for increased separation where needed. This unit can be top- or bottom-mounted for ease of installation.

This unit requires a 1 phase, 115V/208-230V electrical connection for operation. It must be hardwired; a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.

Overall Dimensions:
Length: 34"
Width: 26 1/8"
Height: 31 7/16"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
