Product Overview

  • Provides fresh air in your establishment
  • Designed with a high efficiency aluminum wheel
  • Housed in a sturdy junction box
  • Offers various mounting options
  • 208-230/460V; 3 phase
UPC Code:400016559279

Canarm 9260223 Specs

Quantity
1/Each
Shipping Weight
15 lb.
Length
26 3/8 Inches
Width
19 1/2 Inches
Height
23 13/16 Inches
Phase
3 Phase
Voltage
208 - 460 Volts
Color
Silver
Features
With Junction Box
Horsepower
1 1/2 HP
Material
Metal
Max CFM
2,575 CFM
Min CFM
1,400 CFM
Motor Type
Direct Drive
Plug Type
Hardwire
Power Type
Electric
RPM
1,800 RPM
Speeds
Variable
Style
Inline
Type
Inline Blowers
Usage
Indoor

Canarm 9260223 Details

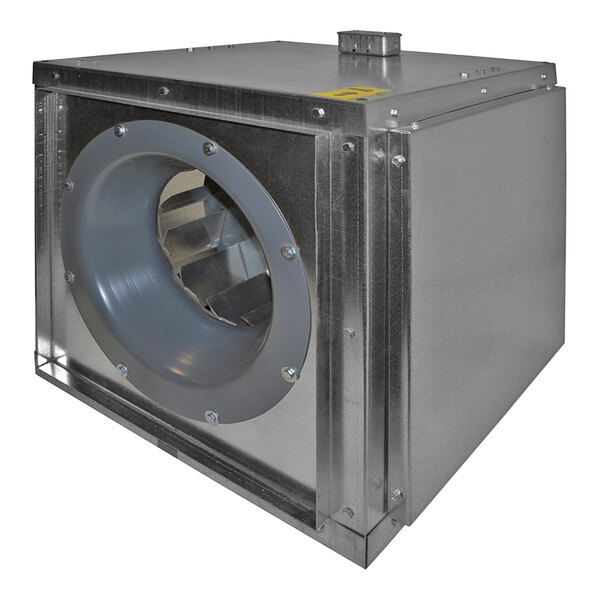

Enhance air quality in your industrial or commercial facility with this Canarm GSQ135-D075EC Series direct drive square inline blower. This unit works to provide fresh air in your establishment. Designed with a high efficiency aluminum wheel, this unit offers excellent filtration that will help keep your air fresh and clean. It boasts a 1 1/2 hp motor that delivers 1,400 CFM to 2,575 CFM. This unit features airtight access panels with gaskets for use indoors. Plus, the high efficiency EC variable speed motor ensures versatility to suit your facility.

This unit is housed in a sturdy junction box, making it durable enough for long-term use. For your convenience, a side discharge comes standard on this unit, and a bottom discharge is available with the flange kit (sold separately). Customers can easily add an additional air supply duct extension between the intake hood and the unit to allow for increased separation where needed. This unit can be top- or bottom-mounted for ease of installation.

This unit requires a 3 phase, 208-230V/460V electrical connection for operation. It must be hardwired; a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.

Overall Dimensions:
Length: 26 3/8"
Width: 19 1/2"
Height: 23 13/16"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I control the speed of the fan motor?

This fan has variable speed capabilities. Models using EC motors have “true variable speed” control available using the on-board speed adjustment with LED display, or they can be controlled remotely using a potentiometer (sold separately).
Ask your own question!
  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
