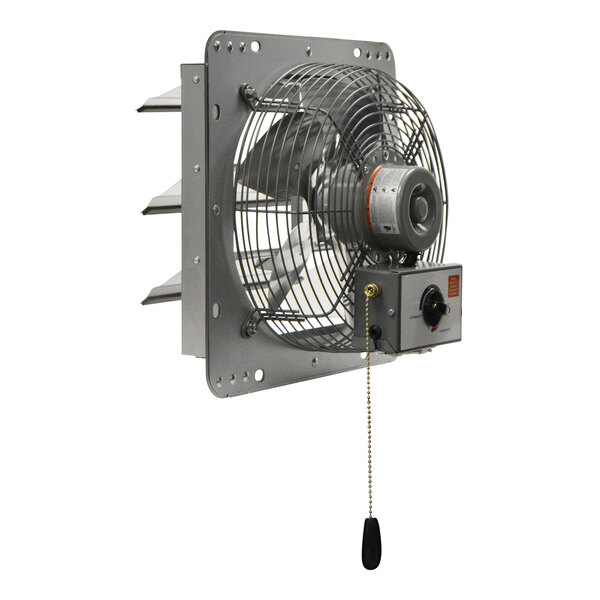

Canarm GSF Series 12" Galvanized Steel / Aluminum 3-Speed Shutter-Mounted Wall Exhaust Fan GSF3-12A

Item number 664gsf312aMFR number GSF3-12A

Ships free with

Only

$148.99/Each

Add to Wish List

Usually Ships in 3-5 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

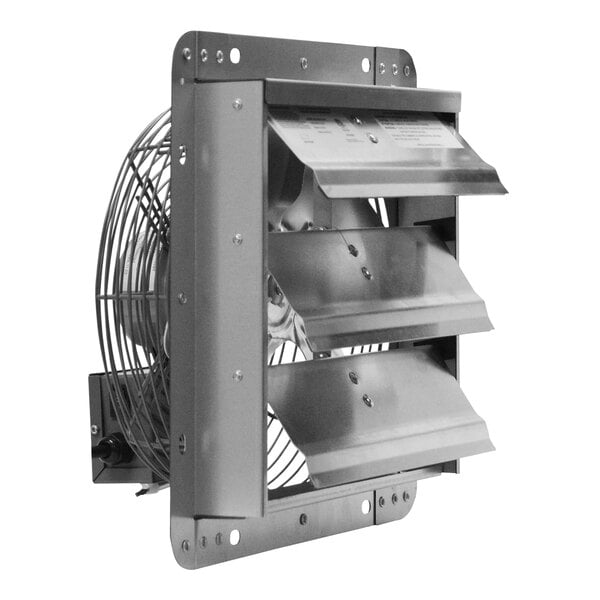

Galvanized steel frame with 3 aluminum shutter blades
Adjustable thermostat and bypass with range from 32 to 130 degrees Fahrenheit
Totally enclosed, thermally protected 3-speed motor
With 12" fan wheel and 25" pull chain operation
Improves air quality in light commercial settings

UPC Code:400017945309

View all Canarm Exhaust Fans

Quantity: 1/Each
Shipping Weight: 12 lb.
Width: 15 Inches
Depth: 9 Inches
Height: 15 Inches
Power Cord Length: 6 Feet
Blade Diameter: 12 Inches
Amps: 0.6 Amp
Phase: 1 Phase
Voltage: 120 Volts
Assembly Options: Fully Assembled
Color: Silver
Features: Shutters
Horsepower: 1/20 hp
Installation Type: Shutter Mounted
Material: Aluminum Galvanized Steel
Max CFM: 772 CFM
Motor Type: Enclosed
Plug Type: NEMA 5-15P
Power Type: Electric
RPM: 1,610 RPM
Speeds: 3 Speed
Style: Fixed
Temperature Range: 32 - 130 Degrees F
Type: Shutter-Mounted Fans
Usage: Indoor

Canarm GSF3-12A Details

Enhance the air quality in your establishment with this Canarm GSF series 12" shutter-mounted exhaust fan. This versatile fan exhausts air to provide ventilation in your establishment. It's made with a galvanized steel frame and 3 aluminum shutter blades. This reliable exhaust fan features a 12" wheel, an adjustable thermostat, and a bypass with a range from 32 to 130 degrees Fahrenheit (0 to 54 degrees Celsius). The thermostat features a power switch and a control knob for temperature adjustments. This unit features a wall-mount design for 12 3/8" x 12 3/8" wall openings.

This 1/20 hp exhaust fan features a 3-speed motor that is designed for light commercial applications and reaches up to 772 CFM on the highest setting and a 1,610 maximum RPM. It also features sleeve bearings. The motor features a totally enclosed, thermally protected design with class B insulation, and the unit is designed for smooth, reliable, maintenance-free operation. It operates easily with a 25" pull chain, it features a 6' power cord, and it requires a 120V electrical connection for operation.

Overall Dimensions:
Width: 15"
Depth: 9"
Height: 15"
Blade Diameter: 12"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
5-15P
This unit comes with a NEMA 5-15P plug.
Fully Assembled
This item arrives fully assembled, and requires no additional assembly prior to use.
