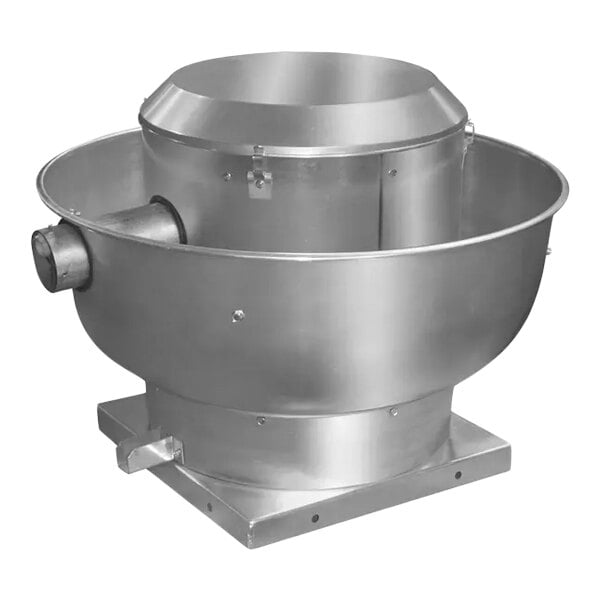

Canarm ALX-UB Series S 15" Spun Aluminum Variable-Speed Upblast Belt Drive Exhaust Fan ALX150UBT10075 - 2,257 CFM, 1 Phase, 3/4 hp

Canarm ALX150UBT10075 Details

Enhance the air quality in your warehouse, office, factory, or commercial building with this Canarm ALX-UB series 15" upblast exhaust fan! This versatile fan is designed to exhaust air and provide ventilation in your establishment. It's made with durable spun aluminum construction that does not chip, rust, or peel for long-lasting use. This exhaust features an upblasting, variable-speed design for adjustable speeds using the onboard variable-speed control knob.

This rugged exhaust fan mounts directly to the wall with additional wall brackets (sold separately), or it can be installed on your rooftop. A 17" roof or wall opening is required. Great for use in demanding commercial and industrial environments, the 15" wheel features a non-overloading design to provide consistent and safe use, and it's inclined backward to exhaust air efficiently. The unit features a 3/4 hp variable-speed belt drive motor that delivers 2,257 CFM with a 1,617 maximum RPM.

For fast, tool-free access to the motor and other internal components, quick-release latches are included on the hinged lid, allowing for fast inspection and maintenance. Plus, it comes with an integrated drain channel that directs liquid away from the fan base. This prevents buildup while ensuring long-term performance. To ensure electrical components remain outside of the airstream in contaminated environments, this exhaust fan features a built-in ventilation tube that helps cool the motor using outside air while also offering a sealed path for running wire. This item is compatible with select Canarm options and accessories like dampers, roof curbs, switches, and more (sold separately) to meet your business's unique needs.

This 1-phase unit requires a 115V electrical connection for operation. It also features a wired disconnect and a 3/4" shaft size. This item complies with the AMCA Certified Ratings Program requirements for air and sound performance in accordance with AMCA Publications 211 and 311. Be sure to review any relevant fire codes for your area before ordering a ventilation system to understand the requirements for any equipment going under your hood, as this may change from area to area.

Overall Dimensions:
Diameter: 32 1/8"
Height: 26 1/8"
