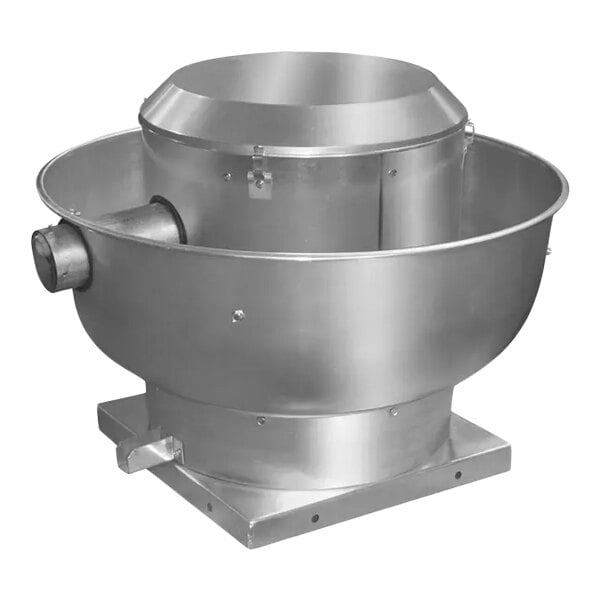

Canarm ALX-UB Series 24 1/2" Spun Aluminum 1-Speed Upblast Belt Drive Exhaust Fan ALX245UB30200M - 6,311 CFM, 3 Phase, 2 hp
Item number 664l24bu20mMFR number ALX245UB30200M
Usually Ships in 3-5 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Durable spun aluminum won't chip, rust, or peel
- Powerful 2 hp belt drive motor
- 24 1/2" non-overloading wheel for efficient airflow
- Compatible with Canarm variable frequency drives (sold separately) for variable fan speeds
- Ideal for warehouses, offices, factories, or commercial buildings
UPC Code:400017910772
- Quantity
- 1/Each
- Shipping Weight
- 290 lb.
- Height
- 37 Inches
- Diameter
- 43 3/4 Inches
- Wheel Diameter
- 24 1/2 Inches
- Phase
- 3 Phase
- Voltage
- 230 / 460 Volts
- Color
- Silver
- Drive Type
- Belt Drive
- Features
- Variable Speed
- Horsepower
- 2 hp
- Installation Type
- Roof Top Mounted
- Material
- Aluminum
- Max CFM
- 6,311 CFM
- Min CFM
- 5,468 CFM
- Motor Type
- Belt Drive
- Noise Level
- 28 Sones
- Plug Type
- Hardwire
- Product Line
- Canarm ALX-UB Series
- RPM
- 745 - 979 RPM
- Speeds
- Variable
- Style
- Fixed Upblast
- Type
- Exhaust Fans Upblast Exhaust Fans
Canarm ALX245UB30200M Details
Enhance the air quality in your warehouse, office, factory, or commercial building with this Canarm ALX-UB series 24 1/2" upblast exhaust fan! This versatile fan is designed to exhaust air and provide ventilation in your establishment. It's made with durable spun aluminum construction that does not chip, rust, or peel for long-lasting use. This exhaust features an upblasting, 1-speed design. It's designed for rooftop installation, and a 29" roof opening is required.
This fan is great for use in demanding commercial and industrial environments, thanks to its 24 1/2" wheel. The wheel features a non-overloading design to provide consistent and safe use, and it's inclined backward to exhaust air efficiently. The unit features a 2 hp belt drive motor that delivers 6,311 CFM with a 979 maximum RPM.
For fast, tool-free access to the motor and other internal components, quick-release latches are included on the hinged lid, allowing for fast inspection and maintenance. Plus, it comes with an integrated drain channel that works to direct liquid away from the fan base. This prevents buildup while ensuring long-term performance. To ensure electrical components remain outside of the airstream in contaminated environments, this exhaust fan features a built-in ventilation tube that helps cool the motor using outside air while also offering a sealed path for running wire.
This 3-phase unit requires a 230/460V electrical connection for operation, and it features a 1" shaft size. This item complies with the AMCA Certified Ratings Program requirements for air and sound performance in accordance with AMCA Publications 211 and 311. Be sure to review any relevant fire codes for your area before ordering a ventilation system to understand the requirements for any equipment going under your hood, as this may change from area to area.
Overall Dimensions:
Diameter: 43 3/4"
Height: 37"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
