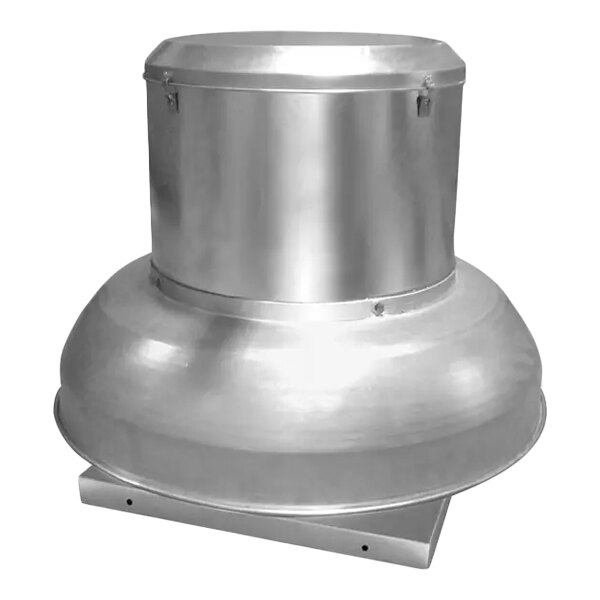

Canarm ALX-DB Series 24 1/2" Spun Aluminum 1-Speed Downblast Belt Drive Exhaust Fan ALX245DB30200M - 6,544 CFM, 3 Phase, 2 hp

Canarm ALX245DB30200M Details

Enhance the air quality in your warehouse, office, factory, or commercial building with this Canarm ALX-DB series 24 1/2" downblast exhaust fan! This versatile fan is designed to exhaust air and provide ventilation in your establishment. It's made with durable spun aluminum construction that does not chip, rust, or peel for long-lasting use. This rugged exhaust fan features a downblasting, 1-speed design. It's also compatible with Canarm variable frequency drives (sold separately) for variable fan speeds. It's designed for rooftop installation, and a 29" roof opening is required.

This fan is great for use in demanding commercial and industrial environments, thanks to its 24 1/2" wheel. The wheel features a non-overloading design to provide consistent and safe use, and it's inclined backward to exhaust air efficiently. The unit features a 2 hp belt drive motor that delivers 6,544 CFM with a 979 maximum RPM.

For fast, tool-free access to the motor and other internal components, quick-release latches are included on the hinged lid, allowing for fast inspection and maintenance. Plus, it comes with an integrated drain channel that directs liquid away from the fan base, preventing buildup while ensuring long-term performance. It also comes with a bird screen for added convenience. To ensure electrical components remain outside of the airstream in contaminated environments, this exhaust fan features a built-in ventilation tube that helps cool the motor using outside air while also offering a sealed path for running wire.

This 3-phase unit requires a 230/460V electrical connection for operation. It also features a 1" shaft size. This item complies with the AMCA Certified Ratings Program requirements for air and sound performance in accordance with AMCA Publications 211 and 311. Be sure to review any relevant fire codes for your area before ordering a ventilation system to understand the requirements for any equipment going under your hood, as this may change from area to area.

Overall Dimensions:
Diameter: 43 3/4"
Height: 37"
