Product Overview

  • Provides fresh air in your establishment
  • Direct drive system powers the blower’s fan
  • Offers maximum performance at low noise levels
  • Comes with a heavy gauge steel fan panel with deep spun and flared venturi
  • 115V/230V; 1 phase
UPC Code:400016643329
View all Canarm Exhaust Fans

Other Products from this Line

Canarm ADD36T10500B Specs

Quantity
1/Each
Shipping Weight
180 lb.
Width
41 5/8 Inches
Depth
18 Inches
Height
41 5/8 Inches
Phase
1 Phase
Voltage
115/230 Volts
Color
Green
Horsepower
5 HP
Installation Type
Wall Mounted
Material
Steel
Max CFM
16,200 CFM
Min CFM
11,050 CFM
Motor Type
Direct Drive
Plug Type
Hardwire
Power Type
Electric
Speeds
Variable
Style
Fixed
Type
Exhaust Fans

Canarm ADD36T10500B Details

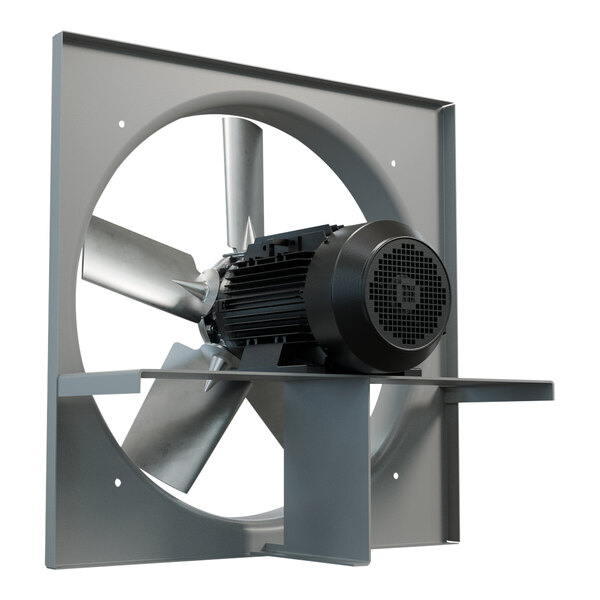

Enhance air quality in your industrial or commercial facility with this Canarm ADD36 Series direct drive wall fan. This unit works to provide fresh air in your establishment. This fan is ideal for heavy-duty commercial and industrial exhaust applications and high volume, high static pressure applications. It is suitable for use in factories, warehouses, gymnasiums, and underground parking garages. It boasts a 5 hp motor that delivers 11,050 CFM to 16,200 CFM. Built with heavy-duty airfoil-cast aluminum blades, this fan offers maximum performance at low noise levels to help maintain a quiet environment in your facility. Designed with durability in mind, this unit features heavy gauge welded steel motor supports.

ADD exhaust fans are designed for economical operations, and the reliable direct drive system requires minimal maintenance. The TEFC motors are safeguarded from weather, dust, and other airborne contaminants, making them suitable for long-term use. Coming with a heavy gauge steel fan panel with deep spun and flared venturi, this fan offers maximum efficiency.

This unit requires a 1 phase, 115V/230V electrical connection for operation. It must be hardwired; a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.

Overall Dimensions:
Width: 41 5/8"
Depth: 18"
Height: 41 5/8"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
