$332.99/Each

Ships free with Plus

Earn up to $9.99 back (999 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 3-5 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Variable speed settings ensure versatility to suit your commercial or industrial facility
  • Durable heavy-duty aluminum housing with built-in shutters
  • 12" fan blade protected by OSHA-compliant, chrome-plated wire guards
  • Shutters automatically open when the fan starts and close when the fan stops
  • Efficient 1/15 hp motor produces up to 1350 CFM; 115V, 1 phase
UPC Code:623452054720

Canarm AX12-1VHE Specs

Quantity
1/Each
Shipping Weight
22 lb.
Width
16 3/4 Inches
Depth
16 Inches
Height
16 3/4 Inches
Blade Diameter
12 Inches
Amps
1 Amp
Phase
1 Phase
Voltage
115 Volts
Assembled
Fully Assembled
Color
Gray
Horsepower
1/15 HP
Installation Type
Shutter Mounted
Material
Aluminum
Max CFM
1,350 CFM
Motor Type
Enclosed
Plug Type
Hardwire
RPM
1,450 RPM
Speeds
Variable
Type
Shutter-Mounted Fans
Usage
Indoor

Canarm AX12-1VHE Details

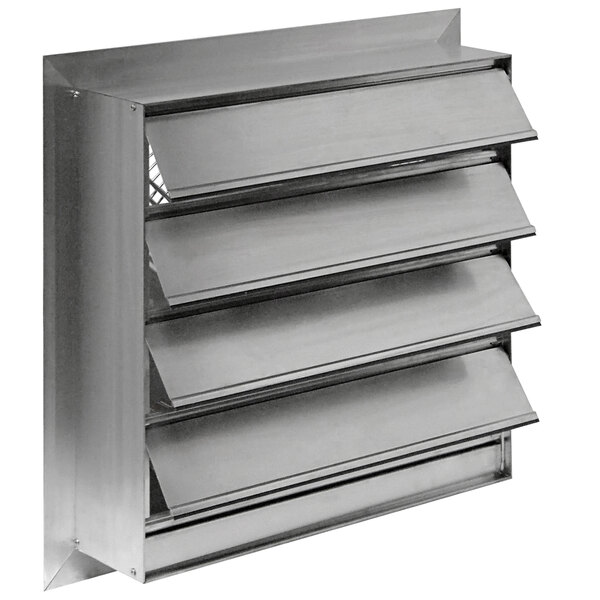

Enhance air quality in your industrial or commercial facility with this Canarm 12" variable speed shutter-mounted exhaust fan AX12-1VHE. This sturdy unit works to provide general ventilation and improve airflow in your establishment. It installs from inside the wall without the need for external framing or shutters. This fan features a variable-speed, 1/15 hp motor to allow the fan to meet a variety of needs and preferences. The motor is totally enclosed with overload protection to ensure safe use. For efficient operation, it reaches up to 1350 CFM on the highest setting.

This fan includes a durable heavy-duty aluminum housing with all-aluminum extrusions for long-lasting use. It features a 12" blade protected by OSHA-compliant, chrome-plated wire guards for superior safety. It also has built-in shutters that automatically open when the fan starts and close when the fan stops. This not only easily indicates when the fan is turned on or off, but it also helps control dust and other particulates from entering. This unit requires a 115V, 1 phase electrical connection for operation. It ships fully assembled for your convenience.

Overall Dimensions:
Width: 16 3/4"
Depth: 16"
Height: 16 3/4"
Blade Diameter: 12"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • Fully Assembled

    Fully Assembled

    This item arrives fully assembled, and requires no additional assembly prior to use.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
