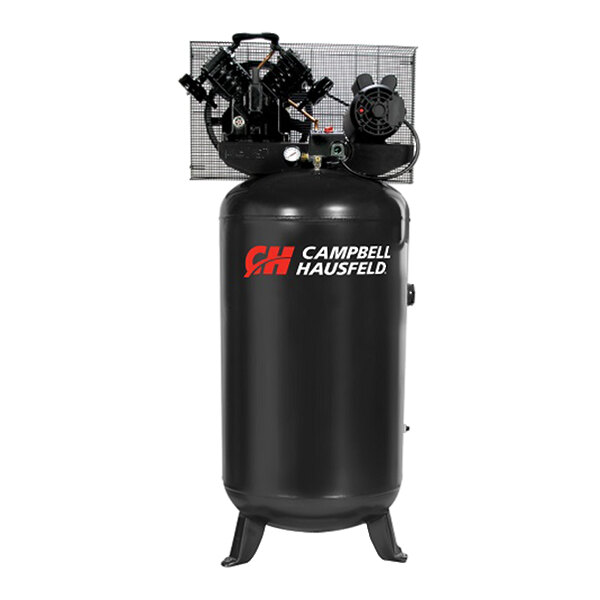

Campbell Hausfeld 80 Gallon Cast Iron 1-Stage Vertical Air Compressor CE4104 - 5 hp, 208-230V

Campbell Hausfeld CE4104 Details

Enhance the productivity of your workshop or garage with this Campbell Hausfeld air compressor! This heavy-duty commercial air compressor operates using a 5 hp, heavy-duty induction motor to maintain longer run times. It features a commercial-duty cast iron, 2-cylinder, 1-stage, oil-lubricated pump with 950 RPM that delivers 17.30 SCFM at 40 PSI, 16 SCFM at 90 PSI, and 15.50 SCFM at its maximum of 140 PSI. This unit powers over 20 types of high-demand air tools like sanders and grinders (sold separately), and it's used for tasks like automotive spray painting and cutting sheet metal. The unit operates at 86 dBA at a 3' distance.

This air compressor features an 80-gallon ASME-certified tank made with a vertical design to maximize valuable floor space in your shop or garage. The tank features a manual drain at the bottom, a pressure switch, a tank pressure gauge, and an air receiver with a safety valve. It provides up to 10,000 hours of pump life. The unit also features a fully enclosed metal belt guard for safer operation and a female NPT tank outlet. This 1-phase air compressor is ideal for use in commercial shops, warehouses, and automotive settings. It features an 80/20 maximum duty cycle, and it's compatible with select Campbell Hausfeld power cords and plug assemblies (sold separately). A 208-230V electrical connection is required for operation.

Overall Dimensions:
Length: 23"
Width: 31"
Height: 71"
Capacity: 80 gallons
