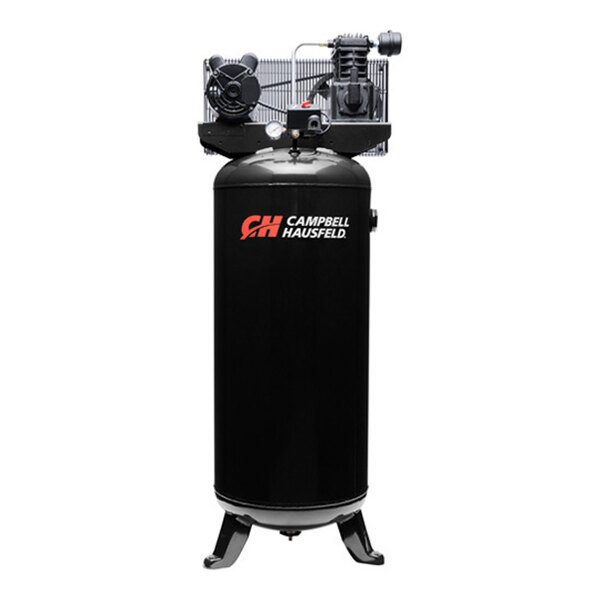

Campbell Hausfeld 60 Gallon Cast Iron 1-Stage Vertical Air Compressor VT6395 - 3.7 hp, 208-230V

Campbell Hausfeld VT6395 Details

Enhance the productivity of your workshop or garage with this Campbell Hausfeld air compressor! This commercial air compressor operates using a 3.7 hp induction motor to maintain longer run times. It features a heavy-duty cast iron, 2-cylinder, 1-stage, oil-lubricated pump with 1,020 RPM that delivers 11.50 SCFM at 40 PSI, 10.20 SCFM at 90 PSI, and 9.80 SCFM at its maximum of 135 PSI. This unit features a commercial-width base that improves both the belt contact and the life of the belt for long-lasting use, and it powers over 20 types of high-demand air tools for grinding, sanding, and painting (sold separately). It operates at 87 dBA at a 3' distance.

This air compressor features a 60-gallon ASME-certified tank made with a vertical design to maximize valuable floor space in your shop or garage. The tank features a manual drain at the bottom, a pressure switch, an air filter, and an air receiver with a safety valve. The unit also features a fully enclosed metal belt guard for safer operation and a female NPT tank outlet. This 1-phase air compressor is ideal for use in commercial shops, warehouses, and automotive settings. It features an 80/20 maximum duty cycle, and it's compatible with select Campbell Hausfeld power cords and plug assemblies (sold separately). A 208-230V electrical connection is required for operation.

Overall Dimensions:
Length: 23"
Width: 25"
Height: 66"
Capacity: 60 gallons
