Product Overview

  • Quiet yet powerful ventilation quickly reduces humidity and moisture
  • ULTRASmart brushless DC motor delivers up to 110 CFM
  • Rugged, galvanized steel housing resists corrosion
  • Adjustable low CFM setting prevents over-ventilating
  • ULTRAQuick technology simplifies installation
UPC Code:026715201075

Broan-NuTone ZB110 Specs

Quantity
1/Each
Shipping Weight
11.9 lb.
Length
11 3/8 Inches
Width
10 1/2 Inches
Height
7 7/8 Inches
Grille Length
13 3/4 Inches
Grille Width
13 Inches
Amps
0.3 Amp
Hertz
60 Hz
Phase
1 Phase
Voltage
120 Volts
Wattage
7.7 Watts
Color
Silver  White
Coverage Area
100 Square Feet
Features
Energy Star Qualified
Material
Polymer  Steel
Max CFM
110 CFM
Motor Type
Direct Drive
Noise Level
0.3 Sone
Plug Type
Hardwire
Power Type
Electric
Speeds
Multi Speed
Type
Bathroom Fans

Broan-NuTone ZB110 Details

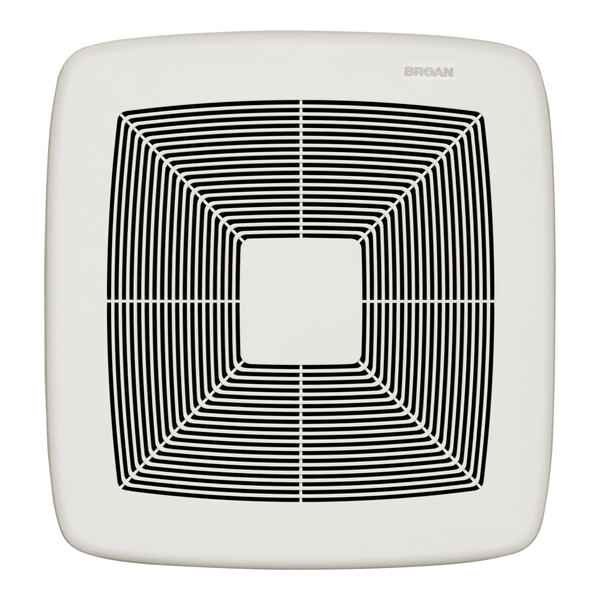

Quickly reduce humidity and moisture in your bathroom with this Broan ULTRA GREEN ZB series bathroom fan. Ideal for use in rooms up to 100 sq. ft., this fan provides excellent ventilation to prevent mold and mildew buildup. It operates at exceptionally low noise levels of less than 0.3 sones thanks to its ULTRASilent sound technology featuring a state-of-the-art blower, duct outlet, and high-tech motor. This unit's rugged, galvanized steel construction resists corrosion and stands up to moisture, while the bright white polymer grille cover promotes a neat, professional look that's sure to blend into any environment.

Engineered for continuous operation, this unit's ULTRASmart brushless, direct drive DC motor boasts multi-speed capabilities, adjustable continuous ventilation, adjustable runtime, and delivers up to 110 CFM. This electronically controlled digital motor is 3 times more efficient than a standard AC motor. An adjustable time delay allows you to limit how long the unit runs on the highest speed. The adjustable low CFM setting enables precise adjustments to prevent over-ventilating. This unit uses just 0.3 amps of power and features a 6" duct fitting for easy duct connection.

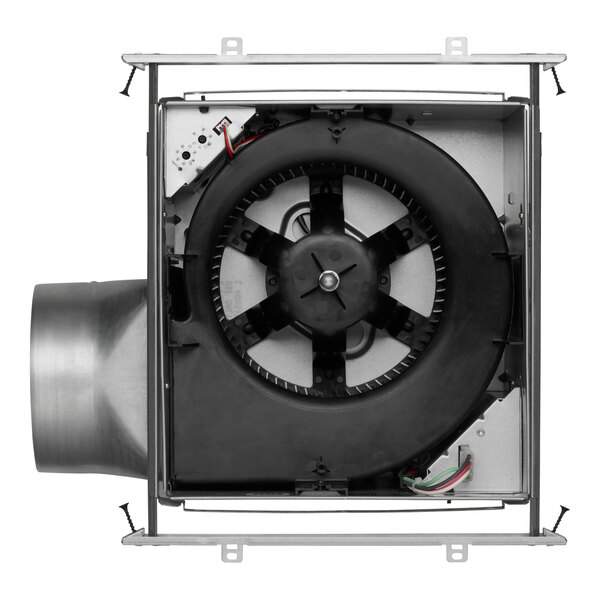

This fan also features ULTRAQuick technology for universal installation in remodeling, retrofit, and new construction. It comes with a telescoping mounting frame for easy installation from the room side, eliminating the need for attic access. The mounting frame fits any type of joist, "I" joist, or truss construction. The mounting frame tabs provide easy vertical positioning, while the duct connector and knockout plate can mount to the inside or outside of the housing. The snap-in housing and blower make installation a breeze. This fan requires a 120V connection and must be hardwired; a cord and plug are not included. For a versatile and economical addition to your facility, look no further than this fan!

Housing Dimensions:
Length: 11 3/8"
Width: 10 1/2"
Height: 7 5/8"

Grille Dimensions:
Length: 13 3/4"
Width: 13"

Please check the Compatibility resource for information on items that work with this product.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
