Product Overview

  • Quiet yet powerful ventilation quickly reduces humidity and moisture
  • Permanently lubricated AC motor delivers up to 80 CFM
  • 26 gauge galvanized steel housing resists corrosion
  • Built-in damper prevents warm and cold air backdrafts
  • EzDuct connector and foldable mounting ears for easy installation
UPC Code:026715236008

Broan-NuTone AE80B Specs

Quantity
1/Each
Shipping Weight
7.9 lb.
Length
10 Inches
Width
9 1/4 Inches
Height
5 3/4 Inches
Grille Length
12 Inches
Grille Width
11 1/2 Inches
Amps
0.3 Amp
Hertz
60 Hz
Phase
1 Phase
Voltage
120 Volts
Wattage
24.7 Watts
Color
Silver  White
Coverage Area
75 Square Feet
Features
Energy Star Qualified  Made in America
Gauge
26 Gauge
Material
Polymer  Steel
Max CFM
80 CFM
Motor Type
Direct Drive
Noise Level
0.7 Sone
Plug Type
Hardwire
Power Type
Electric
Speeds
1 Speed
Type
Bathroom Fans  Ventilator Fans

Broan-NuTone AE80B Details

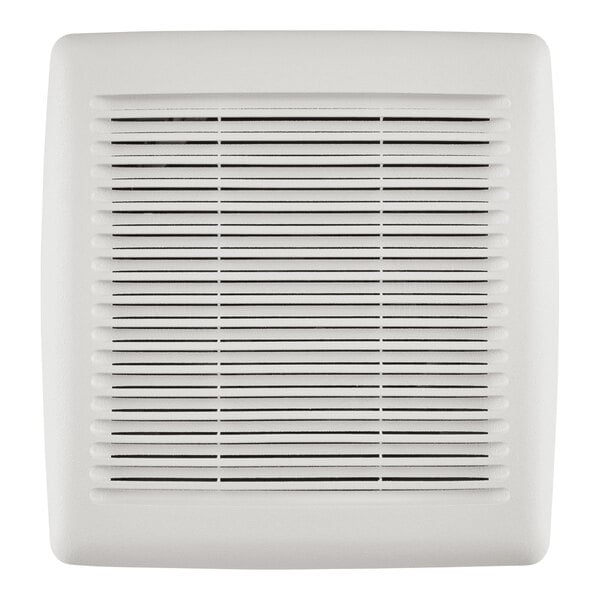

Quickly reduce humidity and moisture in your bathroom with this Broan Flex series bathroom fan. Ideal for use in rooms up to 75 sq. ft., this fan provides excellent ventilation to prevent mold and mildew buildup. It operates at low noise levels of just 0.7 sones, helping to maintain a quiet environment in your facility. This unit's 26 gauge galvanized steel construction resists corrosion and stands up to moisture, while the bright white polymer grille cover promotes a neat, professional look that's sure to blend into any environment.

Engineered for continuous operation, this unit's open-ventilated, direct drive AC motor is permanently lubricated for smooth, long-lasting use and delivers up to 80 CFM. This unit also boasts a dynamically balanced centrifugal blower wheel for quiet, efficient performance. It uses just 0.3 amps of power and features a 4" polymer duct fitting with a tapered sleeve for easy duct connection. This fitting includes a TrueSeal damper that's specially designed to provide a tight seal, helping to prevent cold and warm air backdrafts and reducing air leakage by up to 50% compared to other models.

This fan is designed for ducting to a roof or wall cap and enables quick and easy 4-point mounting directly to the joist. Plus, the foldable mounting ears help simplify installation. This fan can be installed in ceilings up to 7/12 pitch or in a wall if mounted 8' or more above the floor. Thanks to the EzDuct connector, it can be installed from the room side, eliminating the need for attic access. It even fits in a 2" x 6" ceiling construction for enhanced versatility. This fan requires a 120V connection and must be hardwired; a cord and plug are not included. For a versatile and economical addition to your facility, look no further than this fan!

Housing Dimensions:
Length: 10"
Width: 9 1/4"
Height: 5 3/4"

Grille Dimensions:
Length: 12"
Width: 11 1/2"

Duct Fitting Dimensions:
Diameter: 4"
Length: 4 1/4"

Please check the Compatibility resource for information on items that work with this product.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
