$2,899.00/Each
$2,499.00/Each
Earn up to $86.97 back (8,697 points)with a Webstaurant Rewards Visa® Credit Card
Other Available Types:
Product Overview
- Mega top accommodates (18) 1/6 size, 6" deep food pans (included)

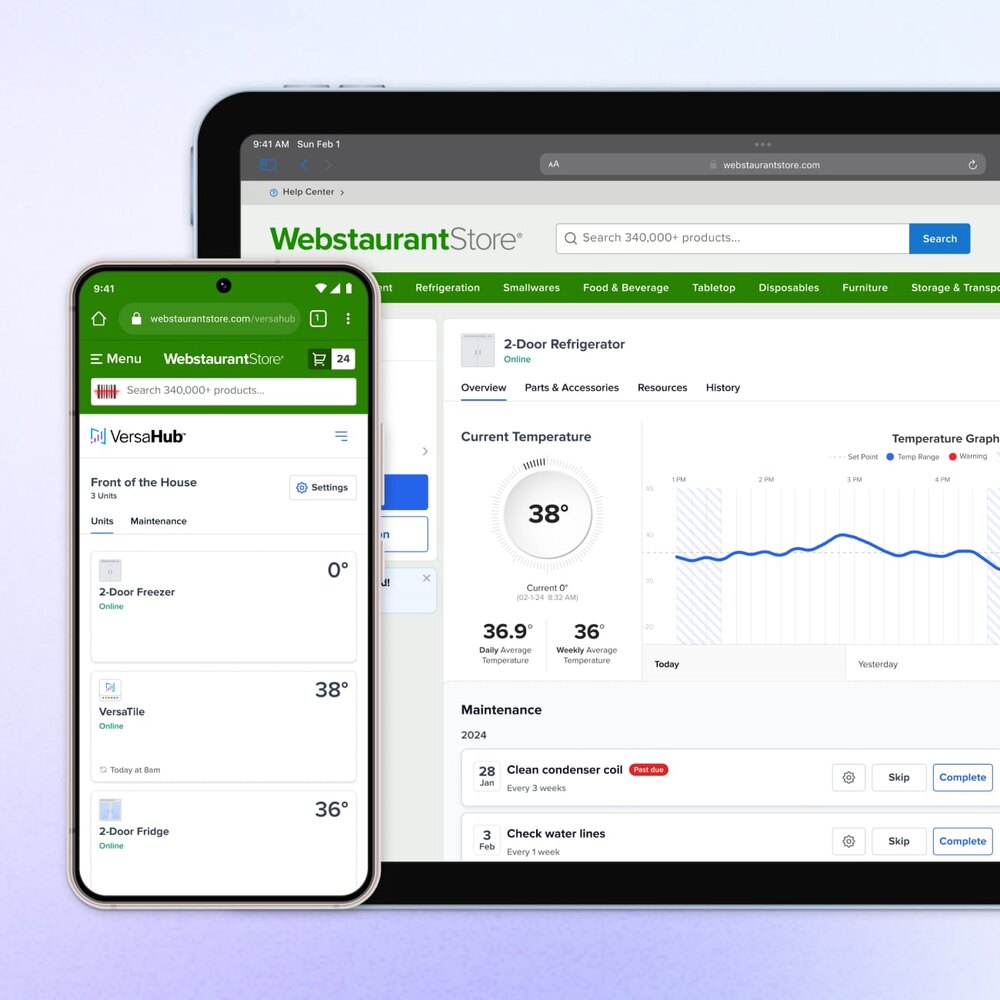

- VersaHub platform monitors unit failure, open doors, and temperature via text / email notifications
- Removable 3/4" thick cutting board
- Front breathing design provides exceptional airflow
- Stainless steel exterior and interior
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 256 lb.
- Width
- 46 13/16 Inches
- Depth
- 34 Inches
- Height
- 45 15/16 Inches
- Power Cord Length
- 84 Inches
- Cutting Board Width
- 46 13/16 Inches
- Interior Width
- 43 Inches
- Left Door Opening Width
- 22 7/8 Inches
- Nominal Width
- 48 Inches
- Right Door Opening Width
- 22 7/8 Inches
- Cutting Board Depth
- 8 Inches
- Interior Depth
- 23 1/2 Inches
- Interior Height
- 19 13/16 Inches
- Work Surface Height
- 35 1/4 Inches
- Amps
- 4.9 Amps
- Hertz
- 60 Hertz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Wattage
- 490 Watts
- 1/6 Size Pan Capacity
- 18 Pans
- Access Type
- Doors
- BTU (LBP)
- 1,285 BTU
- Capacity
- 12.6 cu. ft.
- Casters
- With Casters
- Color
- Silver
- Compressor Location
- Bottom Mounted
- Compressor Style
- Front Breathing
- Construction
- Stainless Steel
- Display Case Type
- Refrigerated
- Door Style
- Swing
- Door Type
- Solid
- Features
- Automatic Electric Defrost Digital Display Electronic Controller LED Lighting Removable Magnetic Door Gaskets Self-Closing Doors VersaHub WiFi Enabled
- Hinge Location
- Left/Right
- Horsepower
- 1/3 HP
- Individual Shelf Capacity
- 88 lb.
- Installation Type
- Freestanding
- Number of Doors
- 2 Doors
- Number of Shelves
- 2 Shelves
- Plug Type
- NEMA 5-15P
- Refrigerant Type
- R-290
- Starting Amps
- 14.7
- Starting Wattage
- 1,470 Watts
- Style
- Counter Height
- Temperature Range
- 33 - 40 Degrees F
- Top Type
- Mega Top
- Type
- Prep Refrigeration
Customer questions about this product
Are there any temperature specifications to keep in mind when installing this Avantco prep table?
Using this unit in consistent ambient temperatures above 75 degrees Fahrenheit will void the warranty. Any exposure to ambient temperatures of 90 degrees Fahrenheit or above will also void the warranty.
Can this prep table fit through a narrow doorway or hallway?
Avantco prep tables have an easily removable cutting board for your convenience. This makes for easy cleaning and for helping fit through narrow spaces. After removing the cutting board from the Avantco prep table the standard tops are 29 3/8" deep, the mega tops are 33 13/16" deep, and the pizza prep tables are 31 1/2" deep.
Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
How do I correctly install the shelves into this unit?
To promote proper air flow through your Avantco unit, please ensure that the wire ledges on the shelves are positioned toward the back of the unit. These ledges help keep enough space between your product and the back wall so that cold air can adequately circulate through the cabinet. Incorrectly installing the shelf ledges can restrict airflow, causing the temperature in the bottom of your unit to rise.
How do I know if this unit will fit under or match the height of my ADA-height counter?
Many manufacturers offer their refrigeration equipment in several different height options to best meet your needs. Here's a breakdown of how we classify these different heights:
Counter Height: Work surface is more than 34" high; standard-height unit.
ADA Height: Work surface height is 34" or less; complies with ADA regulations.
Low Profile: Work surface height is less than 32"; designed to fit under most ADA-height counters.
If the unit you are purchasing does not have a flat top, such as a worktop or sandwich/salad prep table, it may affect whether or not it will align with certain countertops. To ensure that the product will meet your needs, please reference the product's literature and specifications.
How do I set up my VersaHub unit?
Please follow the video guide or quick start guide found on this page to set up your VersaHub unit.
How will VersaHub be linked to the purchaser’s account?
Only the account used by the purchaser of the unit will be able to register the unit for VersaHub access.
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
My unit was delivered, but I don’t see any casters?
The units come with casters preassembled underneath the pallet.
What kinds of pans can I use in my Avantco refrigerated prep table?
The types of pans and pan sizes that should be used in your Avantco refrigerated prep table depend on the table model and size. It’s important to refer to your equipment's Specification Sheet and/or Owner's Manual to see what pan sizes and configurations are recommended. Certain accessories may be needed in order to use pans of a different size than what is recommended.
It is also important to note that mixing and matching pans from different manufacturers may result in the pans not fitting properly. To ensure your pans will fit, refer to the items listed in the product’s "Works With" section. The pan sizes and configurations that each refrigerated prep table accommodates may vary. The items included in the “Works With” section may be used in your model, though configurations combining two or more different pan sizes may not be possible or may require adjustments to be made. The exceptions below apply to the model type indicated:
Mega Top Models – Can fit up to (3) 1/3 size pans from front to back without the use of a middle divider; 1/3 and 1/6 size pans cannot be combined in the same section
Standard Top Models – To use 1/3 size pans, included divider bars must be removed, or narrower divider bars must be used
Pizza Prep Models – While 1/3 size pans are the standard to use in pizza prep models, 1/6 size pans may be used when the orientation is changed
Why is there a step in the interior of this undercounter unit?
This unit’s refrigeration system is located in the lower rear of the cabinet, causing the step in its interior. The step may decrease the inner depth of the cabinet's lower interior versus what is listed as its overall interior depth, so please check the unit’s specs and diagrams to ensure it will accommodate your storage needs.
Details

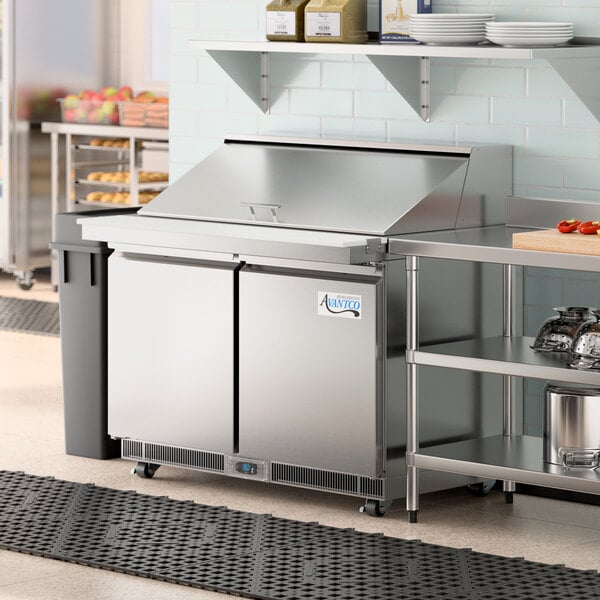

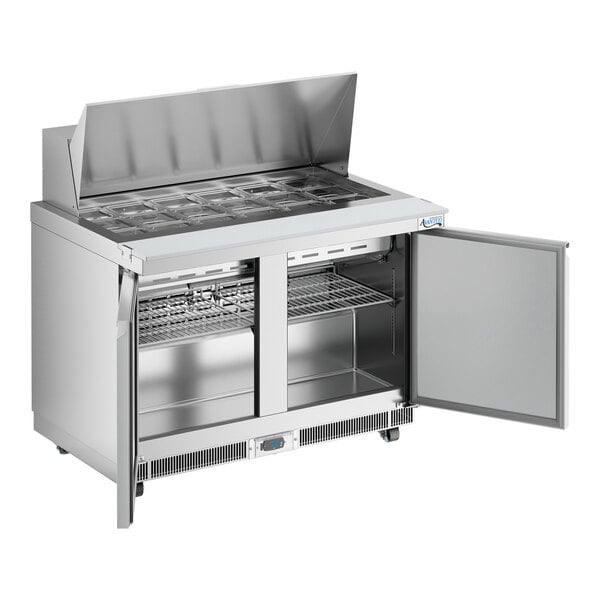

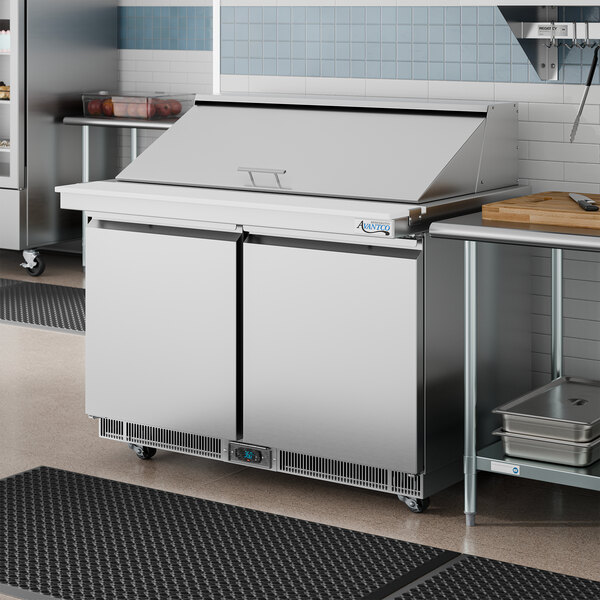

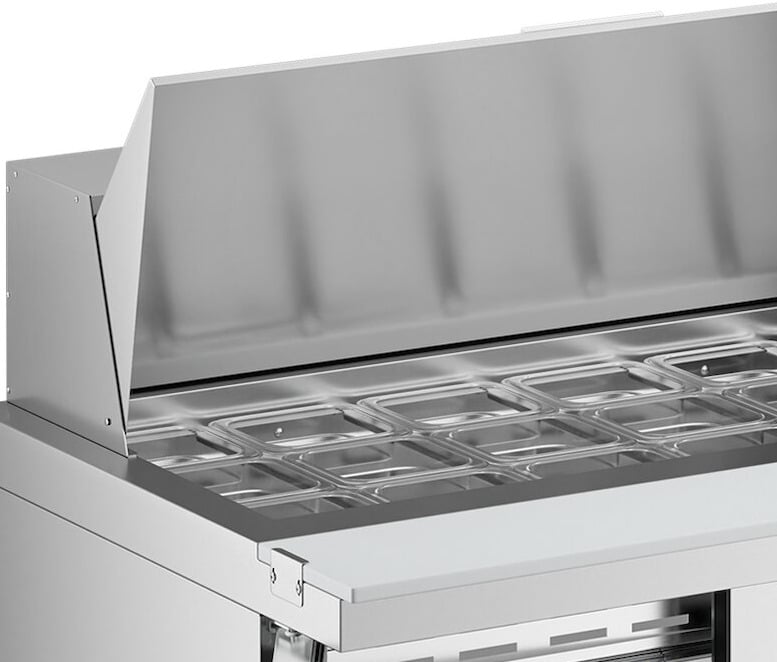

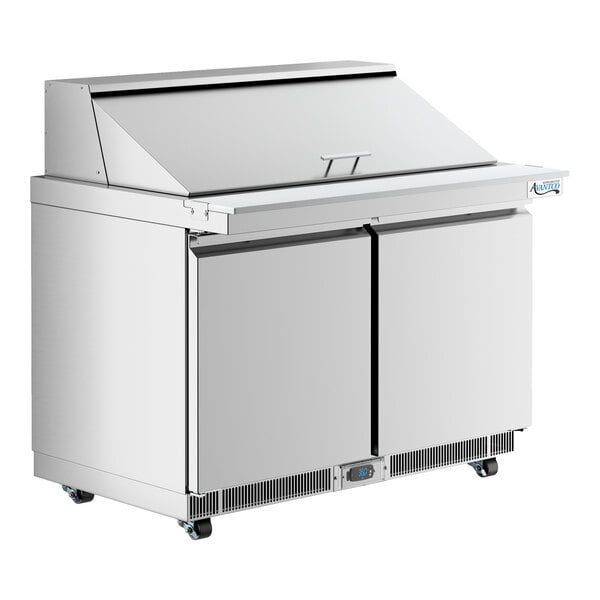

Optimize your back-of-house operations and keep up with customer demands with this Avantco refrigerated sandwich prep table! Whether used in a university, sub shop, or hospital, the unit is sure to help streamline the sandwich prep process with its convenient features and capacity. Its mega top accommodates up to (18) 1/6 size food pans up to 6" deep (included). These are great for holding common sandwich or salad toppings, from eggs and cheese to green pepper or ham. Plus, a lift-up lid encloses the top to maintain safe temperatures.

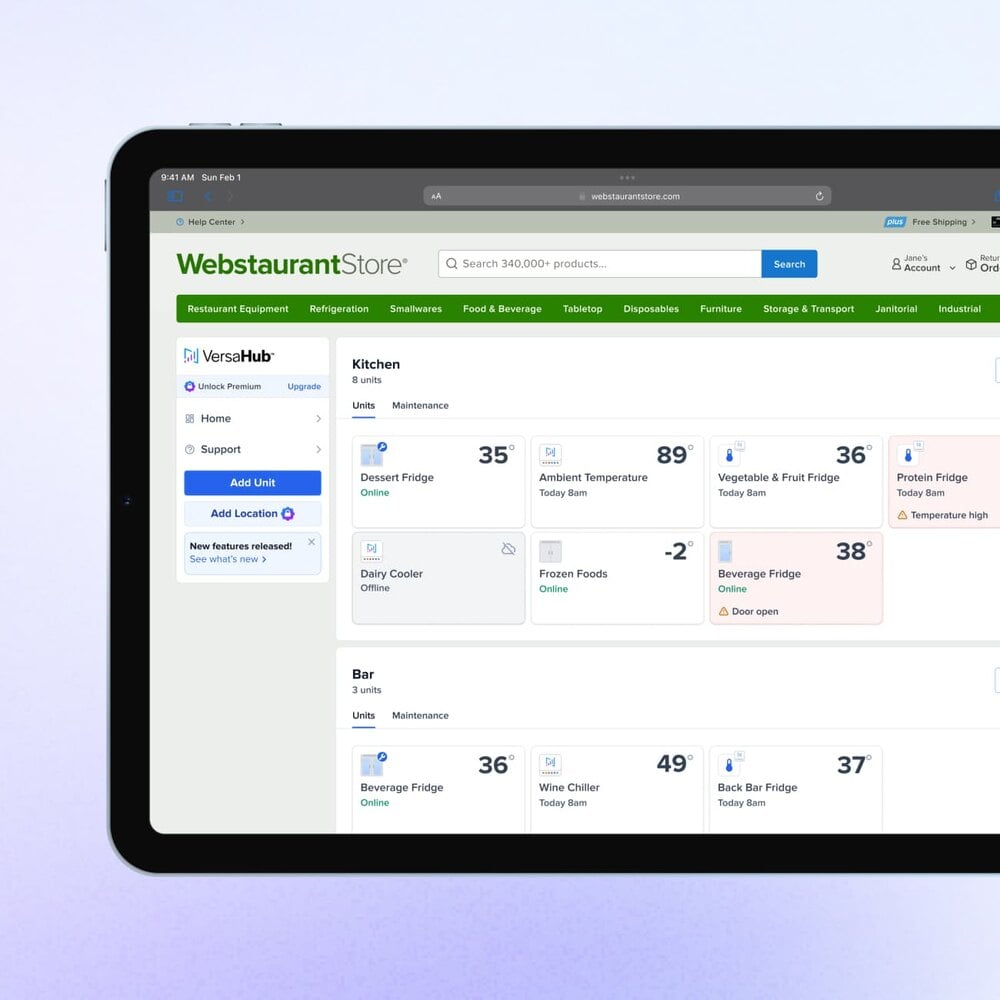

This model uses the VersaHub platform to provide live notifications, history, and other WiFi-enabled updates. With a front breathing design, the back of this unit can be placed directly against a wall without the need for extra clearance. This design provides exceptional airflow and helps to save space in your establishment. Plus, an 8" deep, 3/4" thick full length cutting board is mounted to the table surface, providing maximum space for slicing ingredients and assembling orders. The self-closing and stay-open solid doors allow users to load the unit quickly and easily after a delivery, while the recessed door handles and magnetic door gaskets further expedite the loading process.

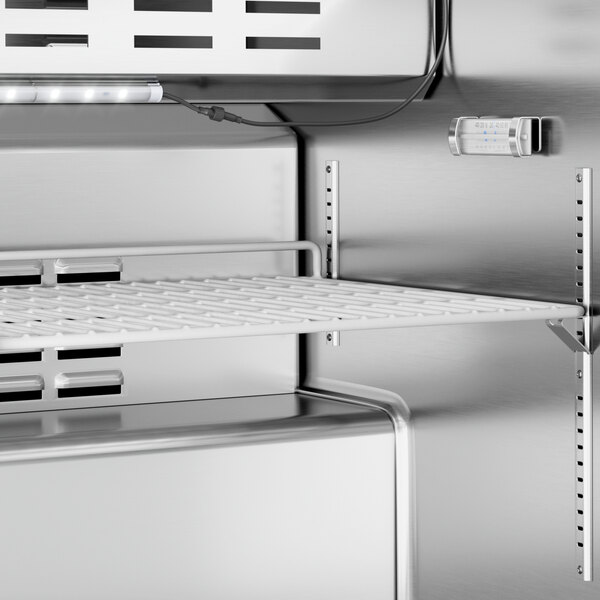

Additional refrigerated storage space beneath the prep top is perfect for storing back-up ingredients, such as deli meat and cheese, as well as less common toppings. The bright LED interior lighting allows users to find what they're looking for with ease. Two epoxy-coated shelves are included and can each accommodate up to 88 lb. of weight, helping to organize your assorted supplies. Divider bars are also included for ultimate convenience.

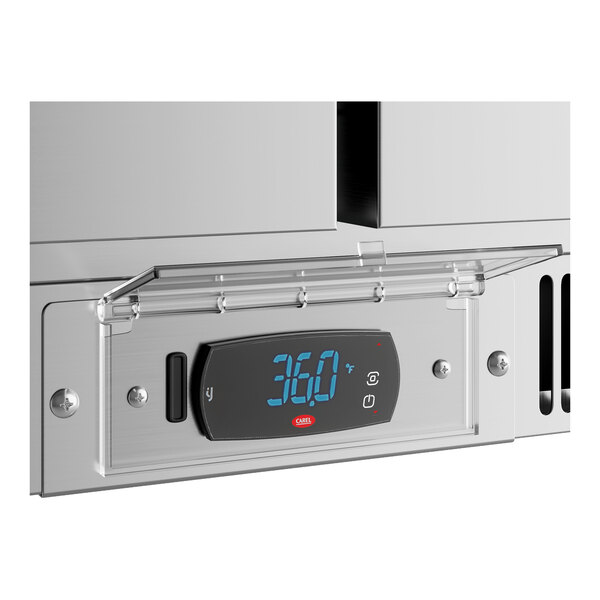

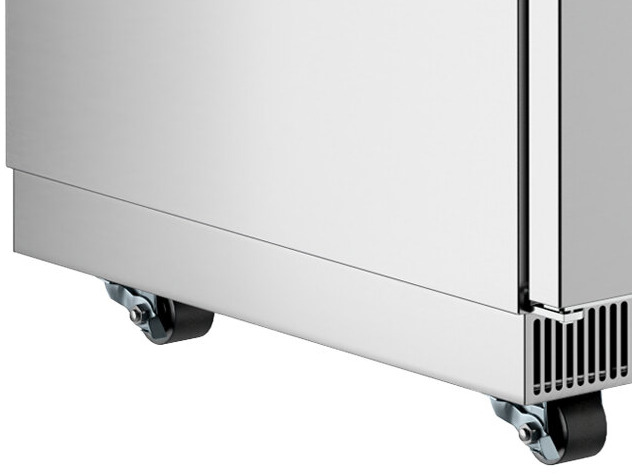

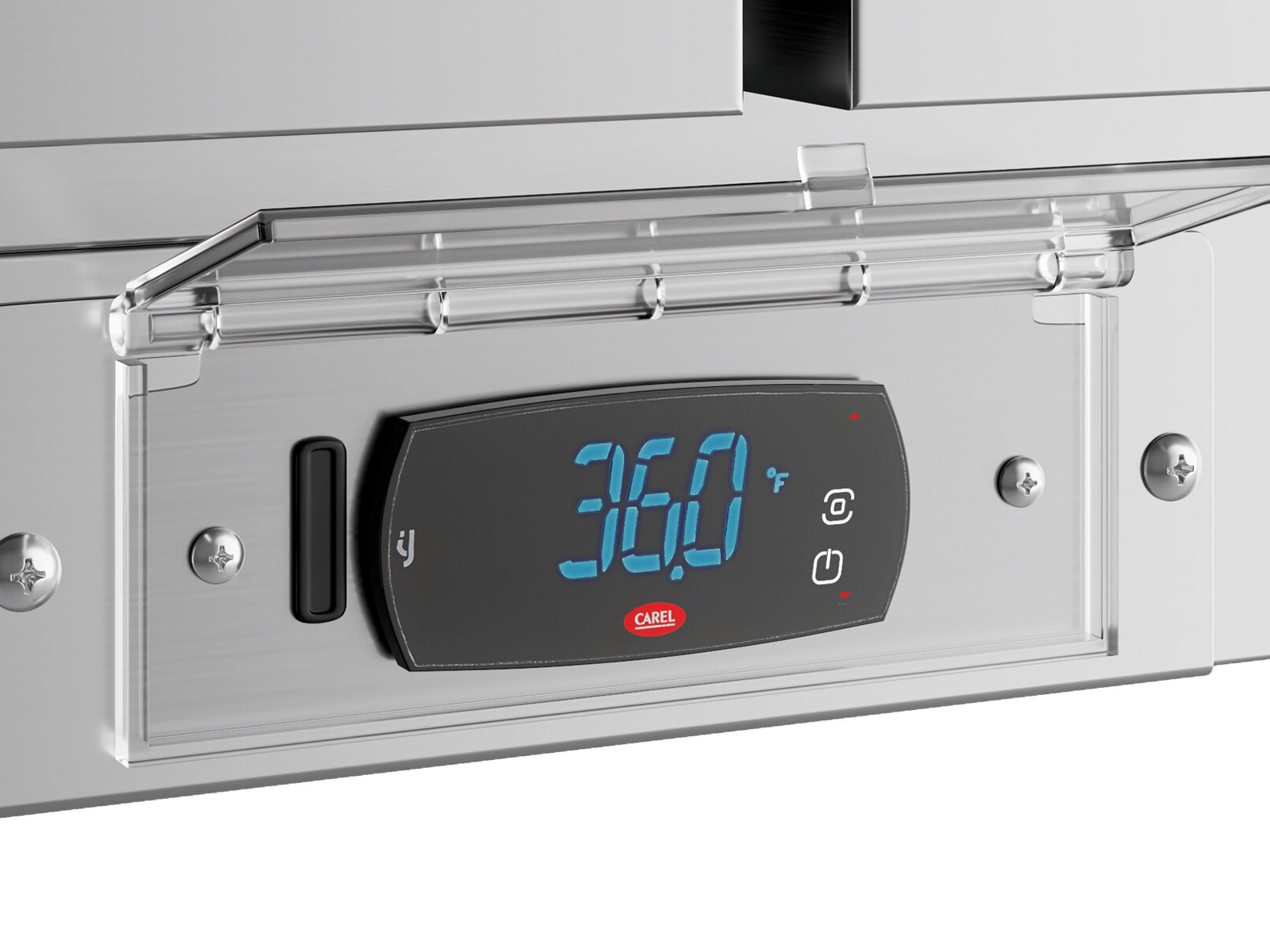

Operation of the refrigerated prep table is easy, thanks to its special features. Monitor it by consulting the interior wall-mounted thermometer, and use the auto-defrost feature on the pre-programmed digital controller to keep the unit in tip-top shape. The controller's audible alarms alert you to temperatures too high or low, extended door opening, and to clean the unit's condenser. This unit includes casters for easy mobility.
High-quality performance is made possible by the unit's 1/3 hp refrigeration system, which maintains temperatures between 33 and 40 degrees Fahrenheit. It does this by circulating R-290 refrigerant. This specialized refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3.
This unit's corrosion-resistant construction is designed with commercial use in mind. It features a 430 type stainless steel exterior and 304 type stainless steel interior, which are fortified with foamed-in-place polyurethane insulation for proper temperature retention. For operation, the prep table requires a 115V electrical connection.
Overall Dimensions:
Width: 46 13/16"
Depth: 34"
Height: 45 15/16"
Working Height: 35 1/4"
Capacity: 12.6 cu. ft.
Interior Dimensions:
Width: 43"
Depth: 23 1/2"
Height: 19 13/16"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
5-15P
This unit comes with a NEMA 5-15P plug.
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.
ETL, US
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States.
