$3,399.00/Each
Ships free with PlusEarn up to $101.97 back (10,197 points)with a Webstaurant Rewards Visa® Credit Card
Installation Services
Product Overview
- Makes up to 420 lb. of half cube ice per day; Ice storage bin capacity 383 lb.
- Durable metallic alloy exterior with a polyethylene interior
- Digital controller allows user to quickly identify issues and the current stage of production
- Includes bright LED lights and a removable air filter
- R290 refrigerant; 115V
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
View All Items$60.49/Case
$2.49/Each
$7.99/Each
$7.99/Each
$19.99/Each
$29.99/Each
$118.99/Case
$611.38/Each
- Quantity
- 1/Each
- Shipping Weight
- 390 lb.
- Width
- 22 Inches
- Depth
- 34 Inches
- Height
- 66 3/8 Inches
- Bin Width
- 22 Inches
- Bin Depth
- 34 Inches
- Bin Height
- 44 Inches
- Amps
- 9.4 Amps
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 420 Pounds
- Ambient Temperature Range
- 40 - 90 Degrees F
- Bin Storage Capacity
- 383 lb.
- BTU Per Hour
- 3,207 BTU
- Condenser Type
- Air Cooled
- Drain Outlet Size
- 3/4 Inch
- Exterior Material
- Metallic Alloy
- Features
- LED Lighting NSF Listed
- Ice Type
- Half Size Cubes
- Installation Type
- Modular
- Interior Material
- Polyethylene
- Plug Type
- NEMA 5-15P
- Power Usage
- 5.2 kWh per 100 lbs.
- Refrigerant Type
- R-290
- Type
- Ice Machines with Bins
- Water Inlet Size
- 3/4 Inches
- Water Pressure Range
- 18 3/4 - 80 PSI
- Water Temperature Range
- 40 - 90 Degrees F
- Water Usage
- 15 Gallons Per 100 lbs.
Customer questions about this product
Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
My ice machine has been shut down, or not in use since the COVID-19 shutdowns, how should I restart it?
If your ice machine has been shut down or not in use for a prolonged period time, please reference your machine's user-manual for a restart procedure, often called “Winterization." Please reference your user manual or contact customer service with any questions.
Why should I buy a water filter along with this product?
Whether you purchase the suggested water filter through this product page or acquire your compatible water filter elsewhere, be sure to consult the equipment's manual and warranty to understand the importance of correct water filter usage. Using poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality.
Will this Avantco Ice machine fit on other brands of ice bins and dispensers?
We cannot guarantee that this can be used with other brands. We only recommend that it be used with the compatible models listed on this product page.
Details

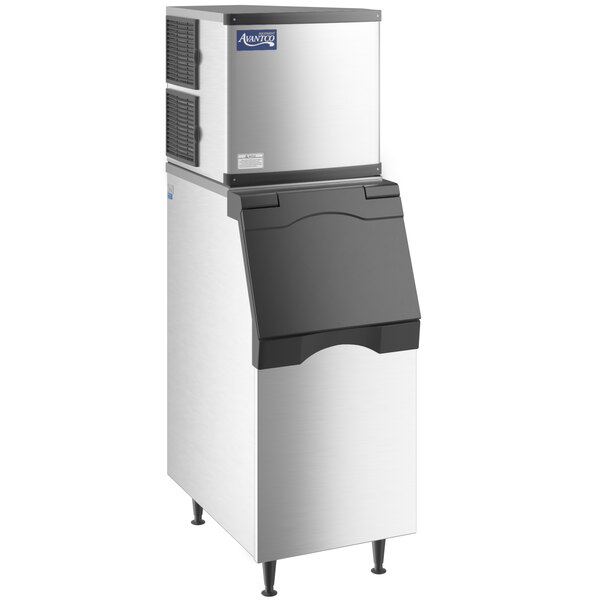

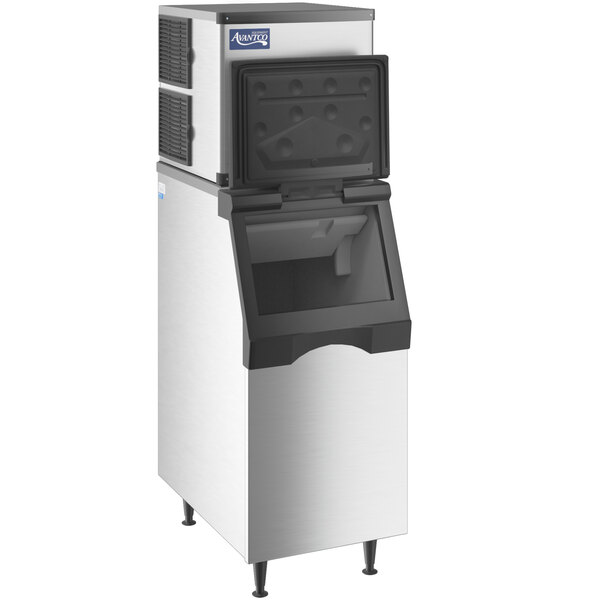

Make sure you've always got plenty of fresh ice on hand with the Avantco Ice KMC-420-L2H 22" air cooled modular full cube ice machine with bin! Capable of producing up to 420 lb. of half cube ice per day, you'll always have plenty of ice to serve on demand at your restaurant, bar, or cafe. An included ice bin holds up to an impressive 383 lb. of ice, making it ideal for busy establishments that can not afford long periods of down-time while ice is being made. The ice bin features a durable metallic alloy exterior with a polyethylene interior. Also included is an ice scoop and a hook to hang it on so it is always within convenient reach when you need it.
For ease of maintenance, a built-in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This easy-to-use controller can also be used to monitor the current stage of ice production that your machine is in. It allows you to adjust the bridge thickness up or down to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in. Plus, the ice bin has a 3/4 FTP drain fitting.

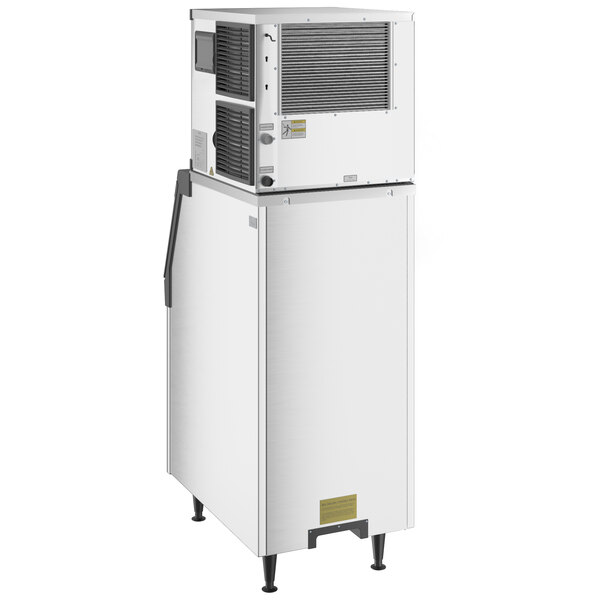

The ice machine is constructed of durable metallic alloy with a polyethylene interior to last in the busiest of commercial environments. A nickel plated evaporator and removable air filter make for quick and simple cleaning and maintenance. With (4) 6" adjustable legs, you can level your machine on uneven surfaces and have plenty of room to clean under it. This ice machine also comes with pre-drilled holes on the back of the unit to mount your OceanLoch water filter to the machine to ensure you are serving the cleanest and freshest ice possible. Designed for side-breathing and rear exhaust, you can avoid hot air being blown outward into your kitchen or service area. This unit requires a 115V electrical connection for operation.
Overall Dimensions:
Width: 22"
Depth: 34"
Height: 66 3/8"
Ice Machine Dimensions:
Width: 22"
Depth: 24 3/8"
Height: 22 3/8"
Ice Bin Dimensions:
Width: 22"
Depth: 34"
Height: 44"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
5-15P
This unit comes with a NEMA 5-15P plug.
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Need Parts & Accessories?
Shop replacement parts and accessories for this item today!
Resources and Downloads
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications.
