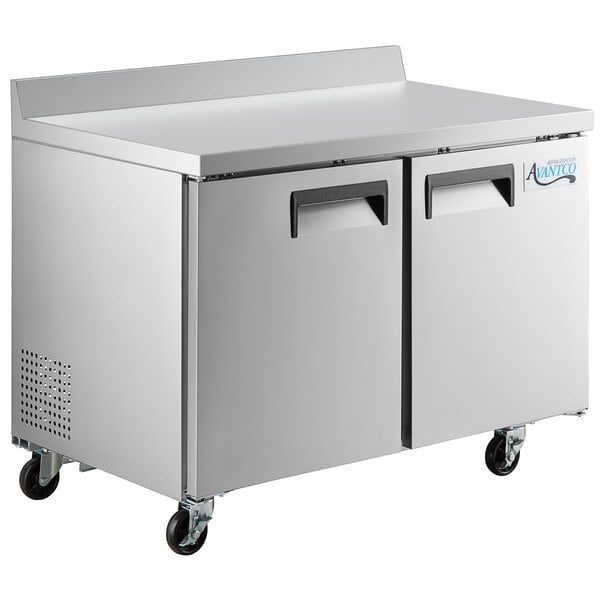

Avantco AWT-48F-HC 48" Worktop Freezer with 3 1/2" Backsplash
- Strong and sleek 430 type stainless steel exterior with 3 1/2" backsplash
- Foamed-in-place CFC- and HCFC-free polyurethane insulation increases energy efficiency
- Self-closing and stay-open door features for easy loading and unloading of product
- Double doors feature easy-to-use recessed handles for quick interior access
- Maintains cold temperatures from -8 to -1 degrees Fahrenheit; 115V, 2/7 hp
You May Also Need
How to Program a Carel PJEZ Controller on an Avantco Refrigerator
Learn how to use a Carel PJEZ controller on an Avantco refrigerator to set the low temperature limit.
| Specs | |
|---|---|
| Width | 47 1/4 Inches |
| Depth | 29 1/2 Inches |
| Height | 38 3/4 Inches |
| Interior Width | 42 1/2 Inches |
| Interior Depth | 22 7/8 Inches |
| Interior Height | 23 1/2 Inches |
| Work Surface Height | 35 1/4 Inches |
| Phase | 1 Phase |
| Voltage | 115 Volts |
| Access Type | Doors |
| Backsplash | Yes |
| BTU (LBP) | 1,264 |
| Capacity | 11.9 cu. ft. |
| Compressor Location | Rear Mounted |
| Compressor Style | Side / Rear Breathing |
| Door Style | Swing |
| Door Type | Solid |
| Hinge Location | Left/Right |
| Horsepower | 0.285714 HP |
| Number of Doors | 2 |
| Plug Type | NEMA 5-15P |
| Refrigerant Type | R-290 |
| Temperature Range | -8 - -1 Degrees F |
Customer questions about this product
- How do I know if this unit will fit under or match the height of my ADA-Height counter?
- Many manufacturers offer their refrigeration equipment in several different height options to best meet your needs. Here's a breakdown of how we classify these different heights:
Counter Height: Work surface is more than 34" high; standard height unit.
ADA Height: Work surface height is 34" or less; complies with ADA regulations.
Low Profile: Work surface height is less than 32"; designed to fit under most ADA-height counters.
If the unit you are purchasing does not have a flat top, such as a worktop or sandwich/salad prep table, it may affect whether or not it will align with certain countertops. To ensure that the product will meet your needs, please reference the product's literature and specifications.
- I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
- R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used as an eco-friendly refrigerant by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program. Read more about this program in our blog post on Refrigerant Regulations.
- Can this unit be built into cabinetry?
- It should not be built into cabinetry. This unit requires 3” of clearance on all sides for proper ventilation.
- Does adding optional accessories impact the lead time on this product?
- Yes. If optional accessories are added to this product, this product may require additional lead time. If you have any questions prior to ordering please contact Customer Solutions.
- How do I correctly install the shelves into this unit?
- To promote proper air flow through your Avantco unit, please ensure that the wire ledges on the shelves are positioned toward the back of the unit. These ledges help keep enough space between your product and the back wall so that cold air can adequately circulate through the cabinet. Incorrectly installing the shelf ledges can restrict airflow, causing the temperature in the bottom of your unit to rise.
- Why is there a step in the interior of this undercounter unit?
- This unit’s refrigeration system is located in the lower rear of the cabinet, causing the step in its interior. The step may decrease the inner depth of the cabinet's lower interior versus what is listed as its overall interior depth, so please check the unit’s specs and diagrams to ensure it will accommodate your storage needs.
- Does Avantco warrant this item for use in a food truck?
- Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
Details

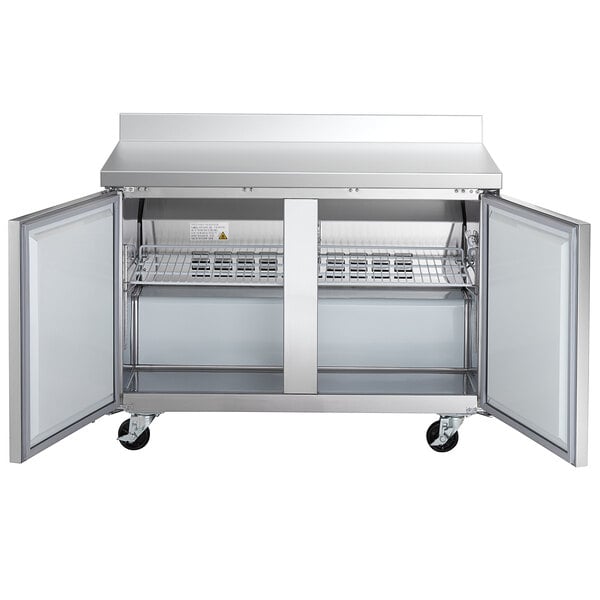

Make food preparation as convenient as possible with the Avantco AWT-48F-HC 48" worktop freezer. With a spacious stainless steel worktop surface for slicing, dicing, assembling, mixing, and other food prep tasks, the unit features a 3 1/2" backsplash for wall protection and freezer storage space below. The freezer portion is readily accessible through the doors, which open up to shelves that help you organize your ingredients and best utilize the roomy interior. Plus, because they accommodates up to 90 lb. each, the epoxy coated steel shelves well equipped for holding heavy bulk ingredients.
This unit is designed for outstanding durability to ensure that it withstands tough, busy kitchens with ease. It features a 430 type stainless steel exterior, which provides both strength and a smooth, sleek appearance. The painted aluminum interior also offers the stability necessary for heavy, regular use.
This worktop freezer ensures optimal performance by operating with a 2/7 hp refrigeration system that circulates environmentally-friendly R290 hydrocarbon refrigerant to maintain temperatures from -8 to -1 degree Fahrenheit. R290 refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally responsible choice for your business. The foamed-in-place polyurethane insulation helps to maintain interior temperatures.

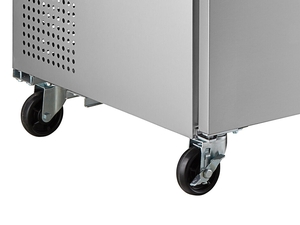

Operation of the freezer is easy, thanks to a variety of special features, including an interior wall-mounted thermometer, auto-defrost, and pre-programmed digital controller. At the end of the day, take advantage of the casters and roll the unit aside to thoroughly clean the area. This worktop freezer requires a 115V electrical connection for operation.
Overall Dimensions:
Width: 47 1/4"
Depth: 29 1/2"
Height: 38 3/4"
Working Height: 35 1/4"
Capacity: 11.9 cu. ft.
Interior Dimensions:
Width: 42 1/2"
Depth: 22 7/8"
Height: 23 1/2"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
-
ETL US
This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States.
-
ETL Sanitation
This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.
-
5-15P
This unit comes with a NEMA 5-15P plug.
Resources and Downloads
Manual
Warranty
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
Note: Avantco Refrigeration equipment with a labor warranty purchased prior to October 15th 2020 is warranted for 1 year parts & labor / 5 year compressor. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
